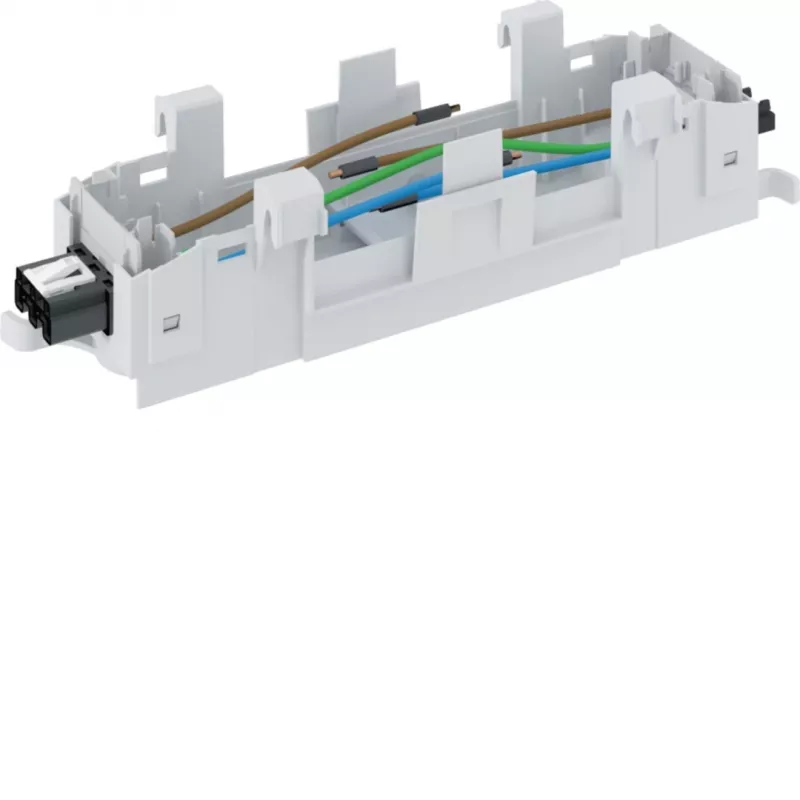

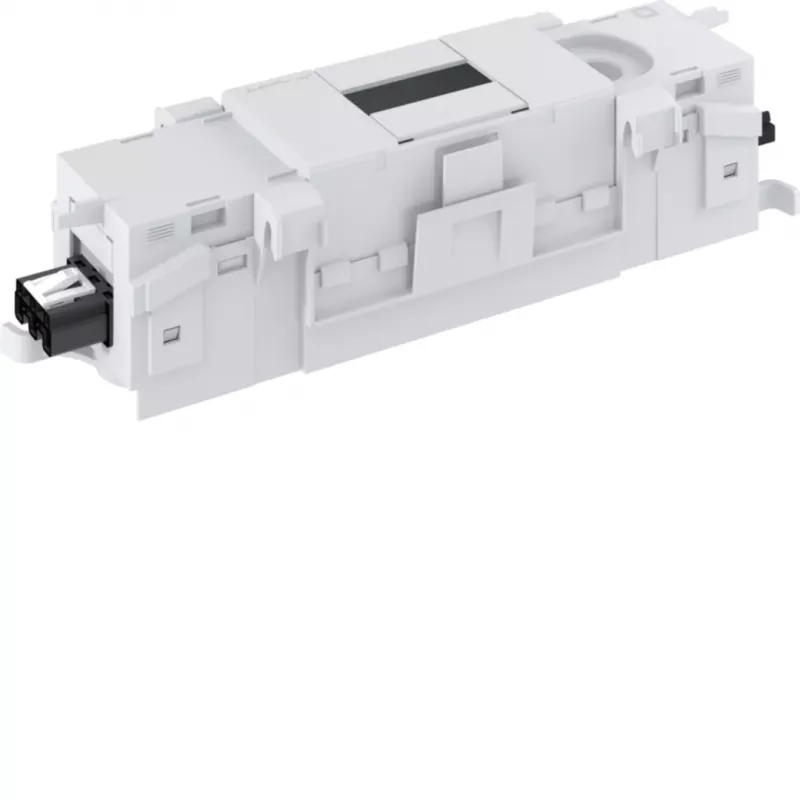

Hager cuadro de distribución pequeño GKEV03WA01 para canal BR OT80 3TE Wago Winsta

In multimedia cable duct installations, providing safe and organized power distribution to connected devices can be a challenge. The Hager Kleinverteiler GKEV03WA01 solves this by offering a compact, flush-mounted power distribution module designed specifically for the BR-Kanal OT80 cable duct system. It integrates seamlessly into the duct, delivering power where it's needed without cluttering the installation.

Who is it for

This module is intended for electricians and installers working on multimedia cable duct systems, particularly those using Hager's BR-Kanal OT80. It is suitable for commercial and residential projects where a clean, tool-free power distribution solution is required.

Main features

• Designed for flush mounting in Hager BR-Kanal OT80 cable ducts (80 mm depth).
• Compact 3 TE (module) width, saving space in the duct.
• Equipped with 3 Wago Winsta pluggable connectors, each 3-pole (L, N, PE).
• Tool-free snap-in mounting for quick and easy installation.
• Halogen-free thermoplastic housing in grey, ensuring safety and durability.
• Rated for 250 V AC and 16 A, suitable for standard power distribution.
• IP20 protection, appropriate for indoor use within the duct.

Specifications

• Product type: Multimedia distribution module
• Mounting type: Flush-mounted (for cable duct)
• Compatibility: Hager BR-Kanal OT80 cable duct system
• Module width: 3 TE
• Connection technology: Wago Winsta pluggable connectors
• Number of Winsta connectors: 3
• Winsta connector poles: 3-pole (L, N, PE)
• Rated voltage: 250 V AC
• Rated current: 16 A
• Protection class: IP20
• Material: Halogen-free thermoplastic
• Colour: Grey
• Installation: Tool-free snap-in mounting
• Application: Power distribution within multimedia cable ducts
• Standards: Complies with EN 60670-24
• Depth of channel compatibility: 80 mm (OT80)

Tips

When installing, ensure the cable duct is securely fixed and the module clicks into place. The Wago Winsta connectors allow for quick connection and disconnection, making future maintenance or reconfiguration straightforward. Always verify that the power is off before making any connections.
