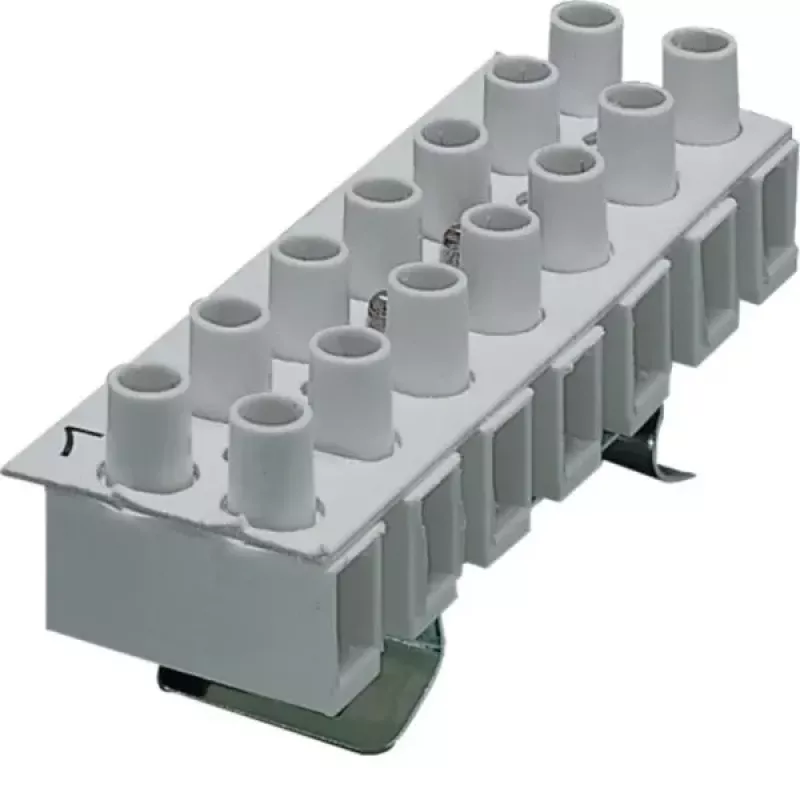

Hager K53 borne de conexión en hilera para cable de control 7 polos, conexión por tornillo, montaje en carril DIN, 250V, 24A, gris

With a rated current of 24 A and a 7-pole screw connection, the Hager K53 control line terminal block delivers reliable signal distribution in automation and control circuits. Its lateral entry design and DIN rail mounting make installation straightforward in distribution boards.

Overview

The Hager K53 is a single-level terminal block for control wiring, accepting solid or flexible conductors from 0.5 to 2.5 mm². The grey thermoplastic housing (RAL 7035) provides durability, and the screw clamping system ensures secure connections with a tightening torque of 0.5 Nm.

What stands out

• 7 poles for multi-conductor control lines
• Rated voltage 250 V AC, current 24 A
• DIN rail mounting for quick assembly
• Lateral connection direction saves space
• Stripping length 8 mm for efficient wiring

Technical details

• Number of poles: 7
• Connection type: Screw connection
• Conductor cross-section: 0.5–2.5 mm² (solid and flexible)
• Rated voltage: 250 V AC
• Rated current: 24 A
• Mounting type: DIN rail
• Housing material: Thermoplastic (PA)
• Colour: Grey (RAL 7035)
• Operating temperature: -5 °C to +40 °C
• Degree of protection: IP20
• Design: Single-level
• Connection direction: Lateral
• Stripping length: 8 mm
• Tightening torque: 0.5 Nm
• Standards/Approvals: VDE, CE

Our verdict

A dependable 7-pole terminal block for control and signal wiring, offering robust screw connections and easy DIN rail mounting in a compact grey housing.
