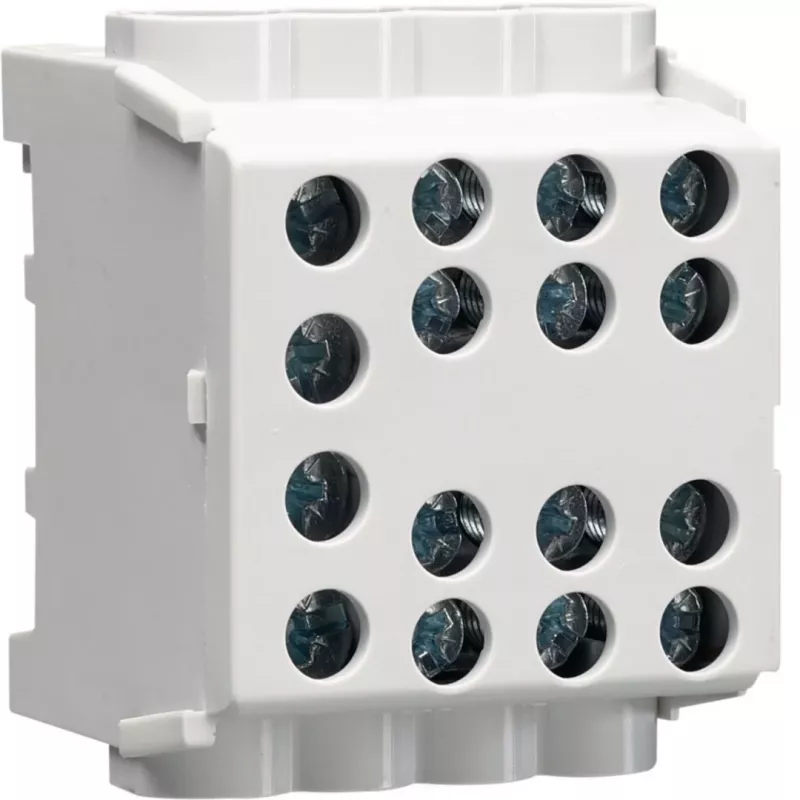

HAGER KH35L8 borne de derivación de línea principal 1 polo, línea principal 6-35 mm², 125 A, 1000 V, gris

The HAGER KH35L8 main line branch terminal block provides a compact solution for distributing power from a single main conductor to multiple branch circuits. Its 1-pole design supports main conductors from 6 to 35 mm² and offers six branch connections, making it suitable for industrial and commercial electrical installations.

Highlights

• Rated current: 125 A
• Rated voltage: 1000 V AC/DC
• Main conductor cross-section: 6 - 35 mm²
• Branch connections: 2x 1.5-16 mm² and 4x 1.5-10 mm²
• Screw terminal connection
• Mounting on DIN rail (35 mm) or screw mounting

In daily use

The terminal block features a grey polyamide housing and tinned brass conductors. It is suitable for operating temperatures from -25 to +70 °C and has a short-circuit current rating of 4.5 kA for 1 second. The IP20 protection class is intended for installation in enclosures.

Full specifications

• Number of poles: 1
• Number of main connections: 1
• Number of branch connections: 6
• Main conductor cross-section (rigid/flexible): 6 - 35 mm²
• Branch conductor cross-section (large): 1.5 - 16 mm² (2 connections)
• Branch conductor cross-section (small): 1.5 - 10 mm² (4 connections)
• Rated current (In): 125 A
• Rated voltage (Un): 1000 V AC/DC
• Connection type: Screw terminal
• Mounting type: DIN rail (35mm) or screw mounting
• Housing material: Polyamide (PA6)
• Conductor material: Tinned brass
• Protection class: IP20
• Operating temperature: -25 to +70 °C
• Colour: Grey (RAL 7035)
• Short-circuit current (Icw): 4.5 kA (1s)
• Standards: IEC 60947-7-1, VDE

Final note

The HAGER KH35L8 is a reliable choice for main line branching in electrical distribution systems.
