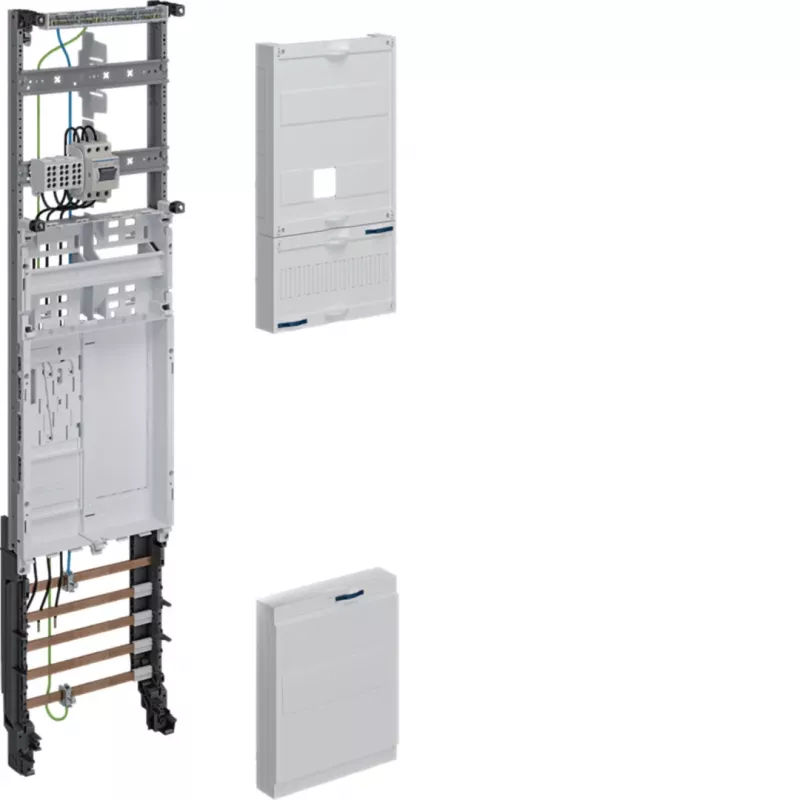

Hager univers Z Cuadro de contadores completo ZH3EL27T, BKE-I, 1050mm, 1 campo, 3 PLE, 63A, preconfeccionado

Managing a residential or commercial electrical distribution system demands a meter panel that ensures safe, compliant, and efficient power distribution. The Hager univers Z Complete Meter Panel ZH3EL27T addresses this need by integrating a BKE-I mounting and contact device for electronic household meters (eHZ) into a fully pre-wired, 1-field enclosure. This panel simplifies installation and enhances reliability, making it an essential component for modern electrical installations.

Who is it for

This meter panel is ideal for electricians, electrical contractors, and building managers who require a dependable, standards-compliant solution for single-meter applications in residential or small commercial settings. It is particularly suited for projects where space is limited but performance cannot be compromised.

Main features

• Integrated BKE-I device for quick and secure mounting of eHZ meters
• Fully pre-wired with 5-pole busbar system rated at 63 A
• Compact 1-field design with 3 distribution units (PLE) and 7 rows
• Robust sheet steel enclosure with powder coating for durability
• Complies with DIN VDE 0603-1 and DIN 43870-1 standards
• Protection class IP2XC when installed in a suitable cabinet

Specifications

• Series: univers Z
• Number of meter positions: 1
• Meter mounting type: BKE-I
• Height: 1050 mm
• Width: 250 mm
• Number of PLE: 3
• Busbar system: 5-pole, 10 mm² main, 1.5-2.5 mm² auxiliary
• Rated current: 63 A
• Pre-wired: Yes
• Material: Sheet steel, powder-coated
• Protection class: IP2XC
• Number of rows: 7
• Connection technology: Quick connection terminals
• System type: 3-phase
• Application: Residential and commercial electrical distribution
• Standards compliance: DIN VDE 0603-1, DIN 43870-1
• Compatible meter type: Electronic household meters (eHZ)

Tips

Ensure the panel is installed in a suitable cabinet to achieve the IP2XC protection class. The pre-wired design reduces installation time and potential wiring errors. Verify that the eHZ meter is compatible with the BKE-I mounting device before installation.
