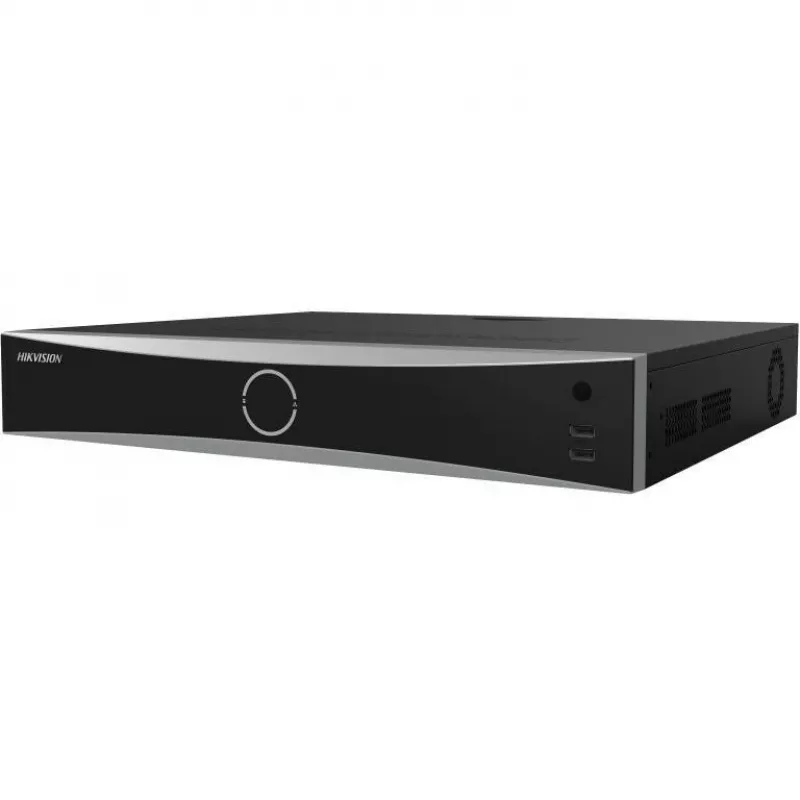

Hikvision DS-7716NXI-K4/16P NVR 4K de 16 canales con AcuSense, 16 puertos PoE, 16/9 alarma

The Hikvision DS-7716NXI-K4/16P is a professional 16-channel network video recorder (NVR) designed for advanced IP surveillance systems. With built-in AcuSense AI technology, it supports human and vehicle detection, perimeter protection, and facial recognition, significantly reducing false alarms. This NVR features 16 PoE ports (IEEE 802.3af/at) with a total power budget of 200 W, simplifying camera installation and power management. It supports up to 12 MP resolution recording and offers robust storage with 4 SATA interfaces (up to 10 TB each). Ideal for medium to large-scale security applications.

Advantages

AcuSense AI reduces false alarms by distinguishing humans and vehicles from other motion. 16 PoE ports eliminate the need for separate power supplies. High recording resolution up to 12 MP ensures detailed footage. Ample storage capacity with up to 40 TB total. Dual Gigabit Ethernet ports for network redundancy or load balancing.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics centers
• Educational institutions
• Government and public facilities

Key specifications

• 16-channel IP video input
• 16 PoE ports (IEEE 802.3af/at), max 200 W
• Recording resolution up to 12 MP
• Video compression: H.265+/H.265/H.264+/H.264
• Incoming bandwidth: 160 Mbps, outgoing: 256 Mbps
• 4 SATA interfaces, up to 10 TB each
• Video output: 1x HDMI (4K), 1x VGA (1080p)
• Audio: 1-ch RCA input, 1-ch RCA output
• Alarm: 16-ch input, 9-ch output
• 2x RJ-45 10/100/1000 Mbps Ethernet
• USB: 1x USB 2.0 (front), 1x USB 3.0 (rear)
• AcuSense AI: human/vehicle detection, perimeter protection, facial recognition
• Power supply: 100-240 VAC
• Operating temperature: -10 °C to 55 °C

Recommendations

For optimal performance, pair with Hikvision AcuSense cameras and use high-quality CAT6 cables. Configure RAID storage for data redundancy. Ensure adequate ventilation for the NVR.
