HQM AT-UPS10KV-T-ON SAI online de doble conversión 10000 VA torre

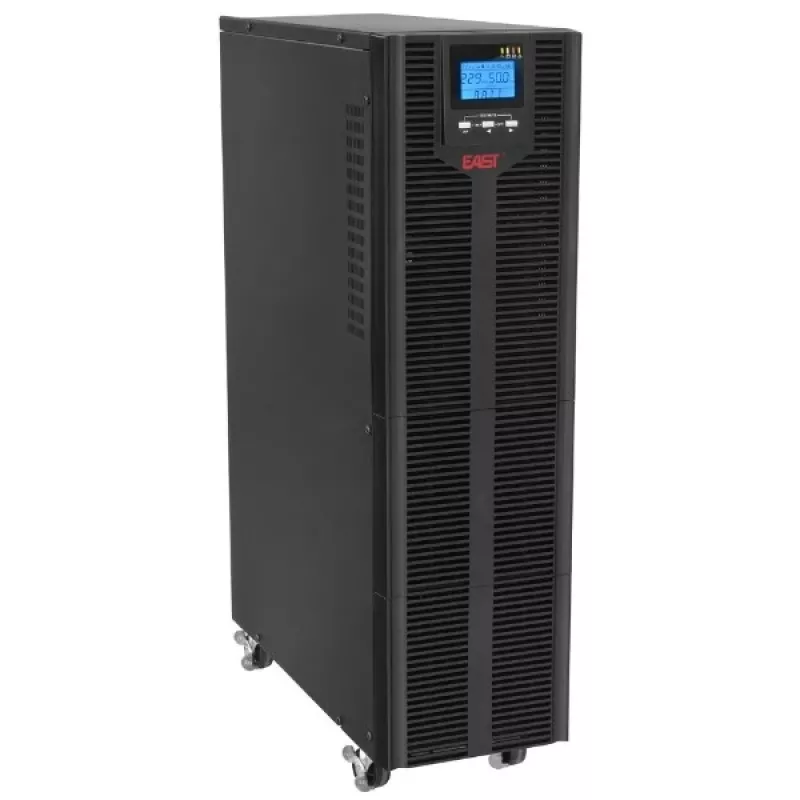

The HQM AT-UPS10KV-T-ON is a high-performance 10000 VA / 9000 W online double conversion UPS designed for critical power protection in professional environments. With pure sine wave output, zero transfer time, and wide input voltage range, it ensures stable, uninterrupted power for servers, network equipment, and industrial systems.

Advantages

True online double conversion topology isolates connected equipment from all power disturbances. Adjustable charging current and configurable DC bus voltage provide flexibility for external battery banks. ECO mode achieves up to 98% efficiency for energy savings.

Suitable for

• Data centers and server rooms
• Telecommunications infrastructure
• Industrial automation and control systems
• Medical and laboratory equipment

Key specifications

• Power Capacity: 10000 VA / 9000 W
• Topology: Online Double Conversion
• Input Voltage: 230 VAC single phase (range 110-300 VAC)
• Output Voltage: Selectable 208/220/230/240 VAC
• Output Waveform: Pure Sine Wave
• Transfer Time: 0 ms
• Efficiency: Up to 93% (online), up to 98% (ECO mode)
• Battery: External VRLA, DC bus 192V configurable
• Charging Current: Adjustable 1A-12A
• Connections: Terminal block input and output
• Communication: RS232, USB, intelligent slot, EPO
• Display: LCD
• Noise Level: <55 dB
• Form Factor: Tower

Recommendations

For optimal performance, use with external battery cabinets sized to your runtime requirements. The UPS supports SNMP management via optional card. Ensure proper ventilation and professional installation.
