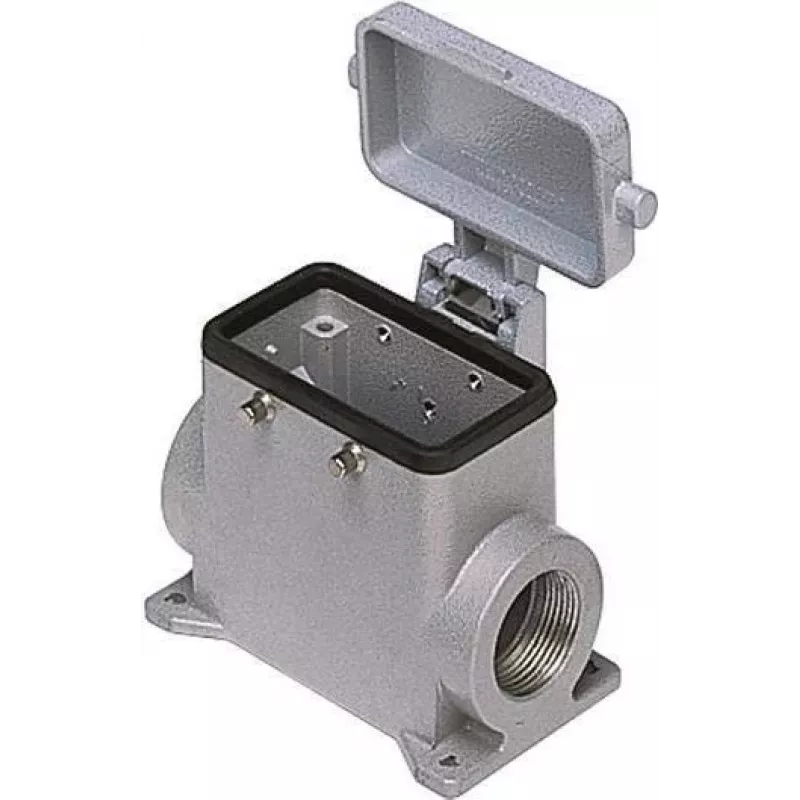

ILME MAP Serie Carcasa base de perfil alto, tamaño 16, entrada lateral, 2xM32, aluminio fundido, Gris MAP16CS232

This high-profile base housing from the ILME MAP series provides a robust enclosure for industrial rectangular connectors. Its die-cast aluminium alloy construction ensures durability in demanding environments, while the side cable entries with M32 threads allow for secure cable routing.

Advantages

• High-profile design accommodates larger wiring space
• Die-cast aluminium alloy offers excellent mechanical strength
• Powder-coated grey finish (RAL 7037) provides corrosion resistance
• Four locking bolts ensure a secure connection
• IP66/IP67 protection rating for harsh conditions

Suitable for

• Industrial machinery and automation systems
• Outdoor applications requiring weatherproof enclosures
• Use with ILME size 16 inserts

Key specifications

• Housing type: Base housing
• Profile: High
• Size: MAP 16 (77.27)
• Material: Die-cast aluminium alloy
• Cable entries: 2 x M32, side entry
• Locking: 4 bolts
• Protection rating: IP66/IP67
• Temperature range: -40°C to +125°C
• Surface treatment: Powder coated
• Colour: Grey (RAL 7037)

Recommendations

Pair with compatible ILME 16-size inserts and hoods for a complete connector solution.
