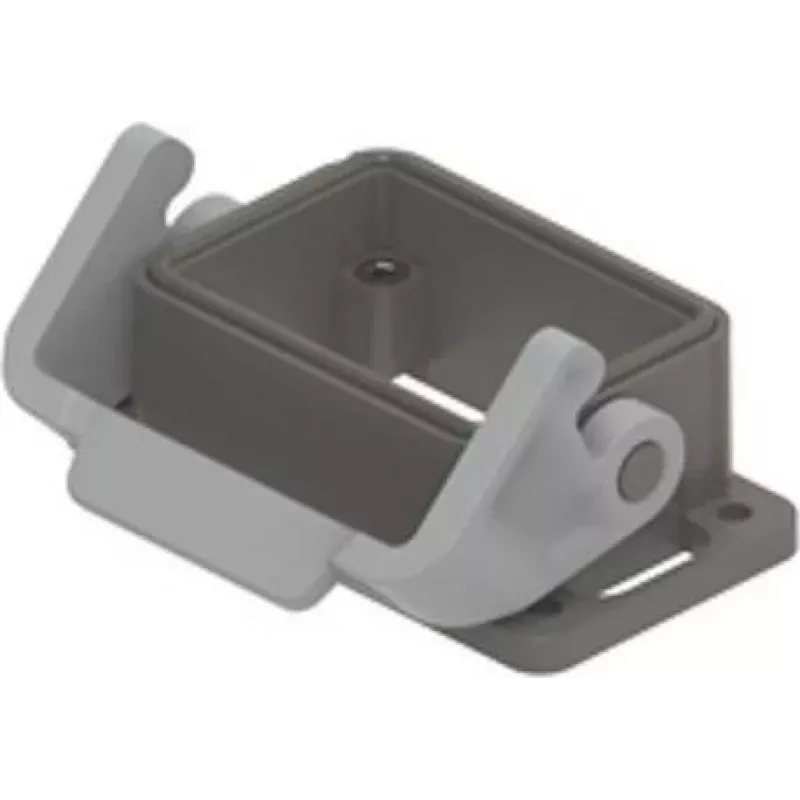

ILME TCHI06L carcasa de superficie tipo T tamaño 6 (44.27), termoplástico, palanca única, gris RAL 7032

When building or maintaining industrial connector systems, a reliable housing is essential to protect inserts and ensure safe operation. The ILME TCHI06L is a surface mounting housing for Size 6 (44.27) inserts, offering a robust thermoplastic enclosure with a single locking lever. It provides IP65 protection, making it suitable for demanding environments where dust and water ingress must be prevented.

Who is it for

This housing is ideal for panel builders, machine manufacturers, and maintenance technicians who need a durable and easy-to-use enclosure for rectangular connectors in industrial applications.

Main features

• Surface mounting housing for Size 6 (44.27) inserts
• Made of thermoplastic, grey RAL 7032
• Single lever locking mechanism for secure connection
• IP65 protection against dust and water jets
• Wide operating temperature range: -40°C to +125°C
• UL 94 V-0 flammability rating
• NBR gasket for reliable sealing
• Compatible with ILME Size 6 inserts
• RoHS compliant

Specifications

• Brand: ILME GMBH
• Model: TCHI06L
• MPN: TCHI06L
• EAN: 8015747168533
• Housing Type: Surface Mounting Housing
• Series: T-Type
• Size: Size 6 (44.27)
• Material: Thermoplastic
• Locking Mechanism: Single Lever
• Protection Degree: IP65
• Operating Temperature: -40°C to +125°C
• Color: Grey (RAL 7032)
• Flammability Rating: UL 94 V-0
• Gasket Material: NBR
• Mounting Type: Surface Mount
• RoHS Compliance: Yes
• Standards: EN 61984, UL 50, CSA C22.2 No. 14

Tips

Ensure the mating connector has a compatible locking mechanism and that the gasket is properly seated to maintain the IP65 seal. For outdoor or washdown applications, consider additional protection or periodic inspection of the gasket.
