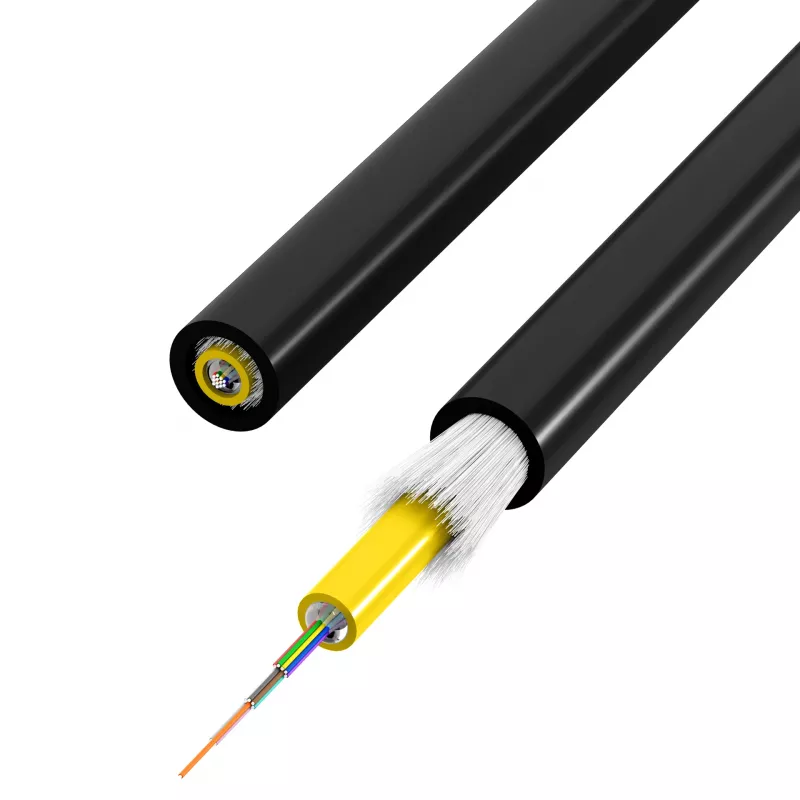

INFRALAN U-DQ(ZN)BH OM4 24G cable de fibra óptica para interior y exterior, 24 fibras, Eca, 3000N, LSZH negro, 7,5 mm 54524D2E-CPR

This INFRALAN U-DQ(ZN)BH OM4 24G cable is a universal indoor/outdoor fiber optic cable with 24 OM4 multimode fibers in a single loose tube. Its 3000 N tensile strength and LSZH black jacket make it suitable for demanding installations.

Advantages

The cable features a dry loose tube construction with non-metallic strain relief, ensuring reliable performance without the need for gel filling. The LSZH jacket provides low smoke and zero halogen emission in case of fire, and the Eca fire performance class meets European CPR requirements.

Suitable for

• Indoor and outdoor backbone cabling
• High-density fiber installations
• Environments requiring halogen-free cables

Key specifications

• Fiber type: OM4 multimode
• Fiber count: 24

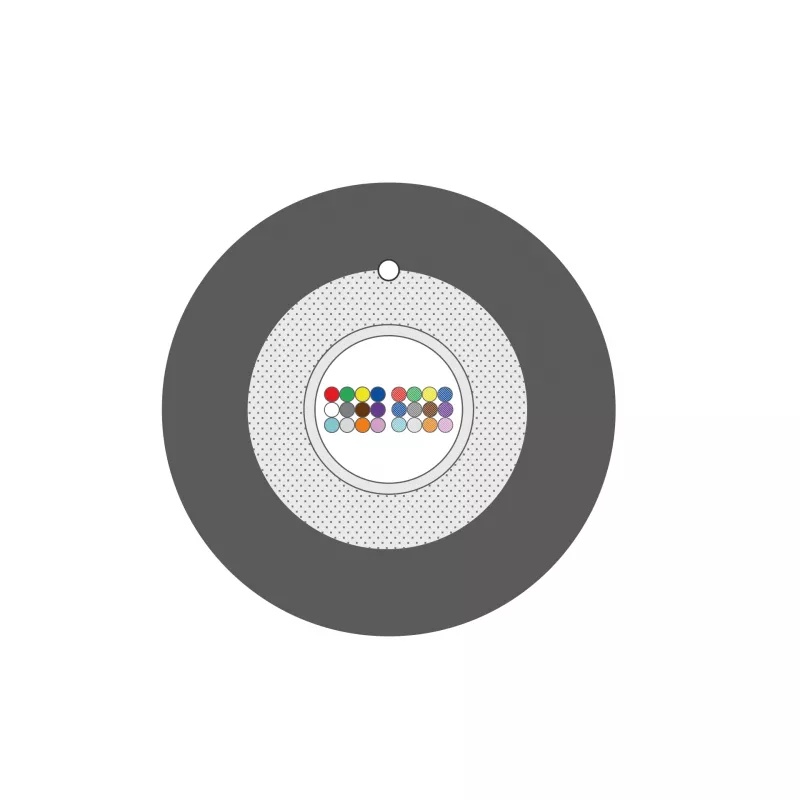

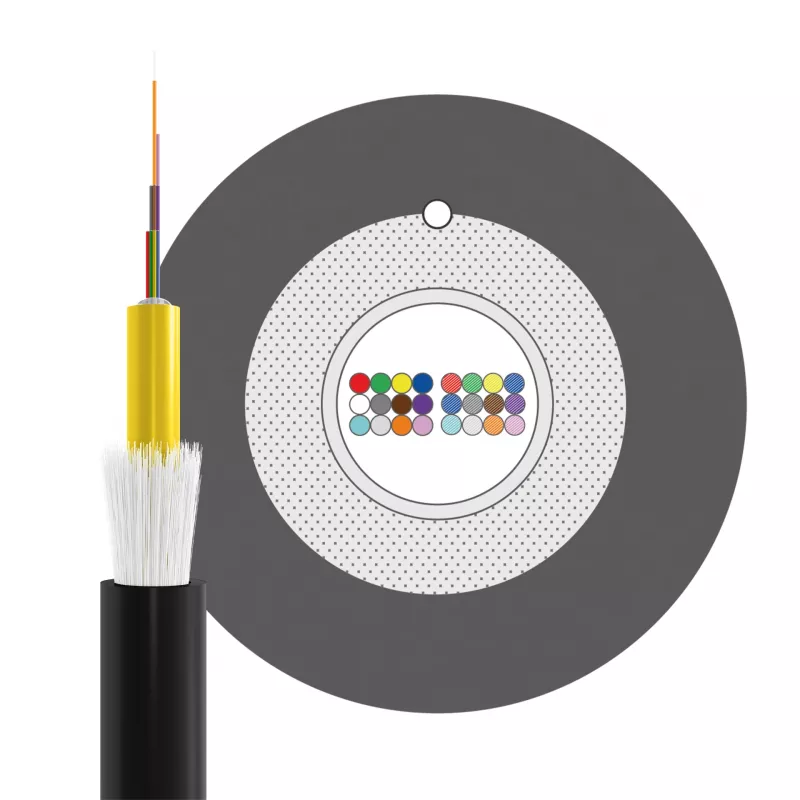

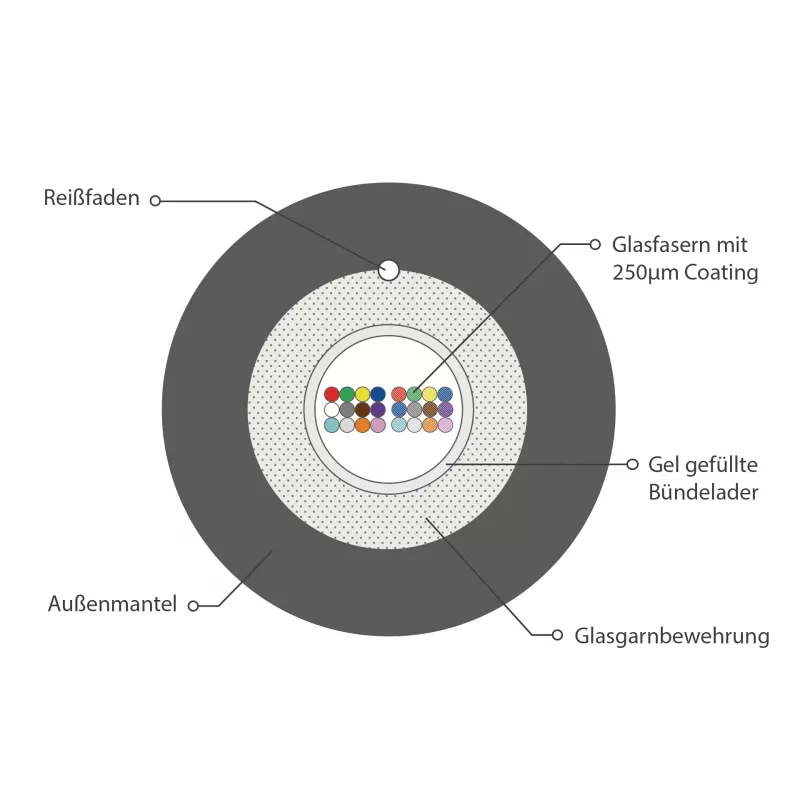

• Cable construction: U-DQ(ZN)BH (universal, dry loose tube, central strain relief, halogen-free sheath)
• Number of loose tubes: 1
• Fibers per loose tube: 24
• Outer diameter: 7.5 mm
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: black
• Fire performance class (CPR): Eca
• Tensile strength: 3000 N
• Attenuation @ 850nm: 2.3 dB/km
• Attenuation @ 1300nm: 0.6 dB/km
• Bandwidth (EMB) @ 850nm: 4700 MHz*km
• Bandwidth (OFL) @ 1300nm: 500 MHz*km
• Operating temperature range: -20°C to +70°C
• Storage temperature range: -40°C to +70°C

Recommendations

For installations requiring high fiber density and robust mechanical protection, this cable offers a reliable solution with excellent bandwidth performance.
