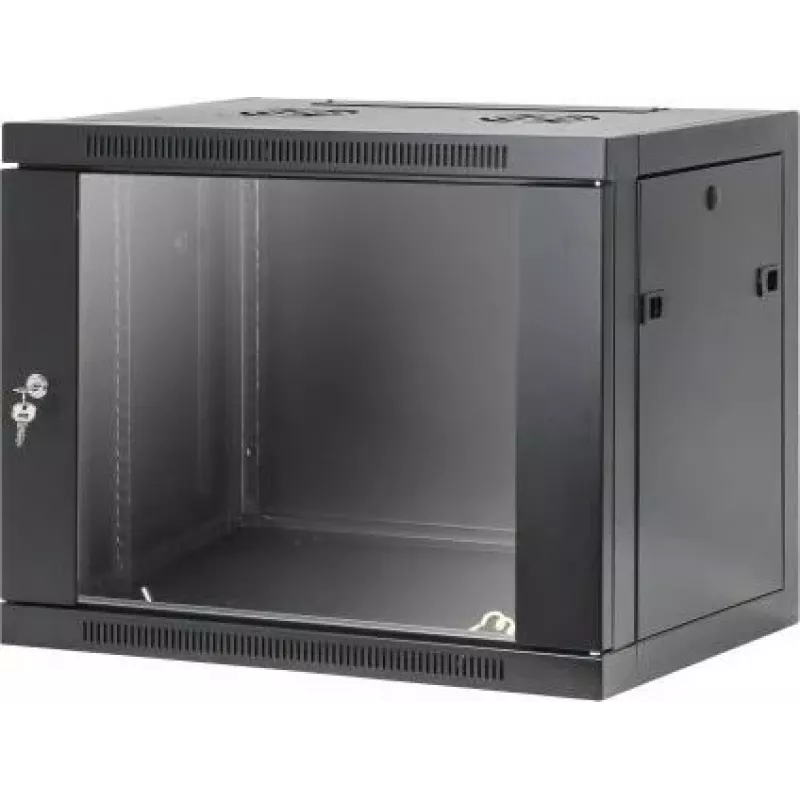

Intellinet armario de pared de red 19" montaje sin herramientas, 9U, 450 mm de profundidad, negro RAL 9005 (716833)

Organizing network equipment in small offices or industrial spaces often means choosing between bulky floor-standing racks and flimsy wall boxes. This Intellinet 9U wall cabinet solves both problems: it mounts securely on the wall or stands freely, yet assembles without tools in minutes thanks to its flatpack, quick-assembly design.

Who is it for

IT installers, system integrators, and facility managers who need a professional 19-inch enclosure for patch panels, switches, and small servers in limited spaces. Ideal for offices, retail back rooms, and light industrial environments.

Main features

• Tool-less assembly from flatpack – no screws or special tools required
• 9U rack capacity, 450 mm usable depth for standard 19" equipment
• Wall-mount or freestanding installation
• Lockable tempered glass front door and removable lockable side panels for security
• Top and bottom cable entry points for clean cable management
• Passive ventilation with fan-ready top for active cooling options
• Durable steel construction, black RAL 9005 finish
• Maximum static load: 60 kg

Specifications

• Rack standard: 19-inch
• Rack capacity: 9U
• External dimensions (W x H x D): 540 x 465 x 450 mm
• Material: Steel
• Colour: Black (RAL 9005)
• Mounting type: Wall-mount, freestanding
• Assembly: Tool-less, flatpack
• Front door: Tempered glass, lockable
• Side panels: Removable, lockable
• Cable entry: Top and bottom
• Ventilation: Passive, fan-ready top
• Maximum static load: 60 kg
• IP rating: IP20

Tips

Pair this cabinet with a 9U rack shelf or blanking panels to keep airflow optimal. For wall mounting, use appropriate anchors for the wall material and ensure the mounting surface can support the loaded weight.
