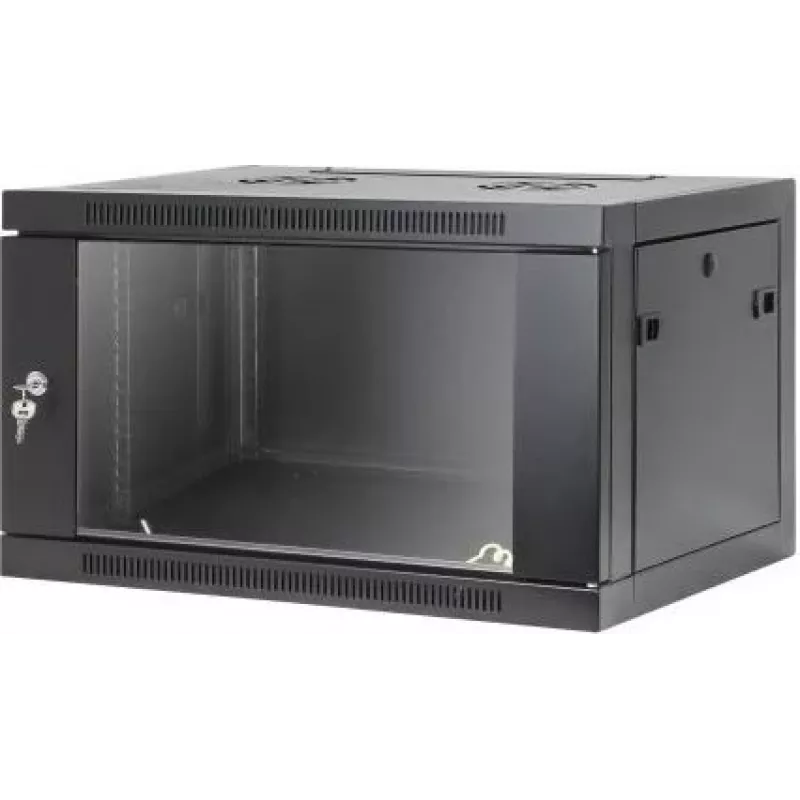

Intellinet Armario de red de pared 19 pulgadas, montaje sin herramientas, 6U, 450 mm de profundidad, negro RAL 9005 (716826)

Organizing network equipment in a compact space can be a challenge, especially when you need quick access and a clean, professional look. This Intellinet 6U wall-mount cabinet solves that problem with a tool-free assembly design that gets your rack up and running in minutes, without the hassle of nuts and bolts.

Who is it for

Ideal for small offices, retail back rooms, or any environment where floor space is limited but network reliability is critical. It suits IT installers and facility managers who need a secure, ventilated enclosure for switches, patch panels, and other 19-inch equipment.

Main features

• Tool-free flatpack assembly – no tools required, saves time and effort
• 6U rack capacity with 19-inch standard mounting
• 450 mm external depth, 400 mm usable depth for standard equipment
• Wall-mountable or freestanding installation
• Tempered glass front door with lock and key
• Removable, lockable side panels for easy access
• Top and bottom cable entry points for clean cable management
• Passive ventilation slots for natural airflow
• Pre-punched holes for optional fan installation
• Sturdy SPCC cold-rolled steel construction with 60 kg static load capacity
• Black RAL 9005 finish for a sleek, professional appearance

Specifications

• Rack Units: 6U
• Rack Standard: 19 inch
• External Dimensions (W x H x D): 540 x 320 x 450 mm
• Usable Depth: 400 mm
• Material: SPCC Cold Rolled Steel
• Colour: Black (RAL 9005)
• Mounting Type: Wall-mountable, Freestanding
• Front Door: Tempered Glass, Lockable
• Side Panels: Removable, Lockable
• Ventilation: Passive slots
• Static Load Capacity: 60 kg
• Shipping Configuration: Flatpack

Tips

For optimal airflow, consider adding optional fans to the pre-punched holes if you are installing heat-generating equipment like PoE switches. Use the removable side panels to route cables neatly and maintain a tidy installation.
