Inyector Power over Ethernet EXSYS EX-6006PoE

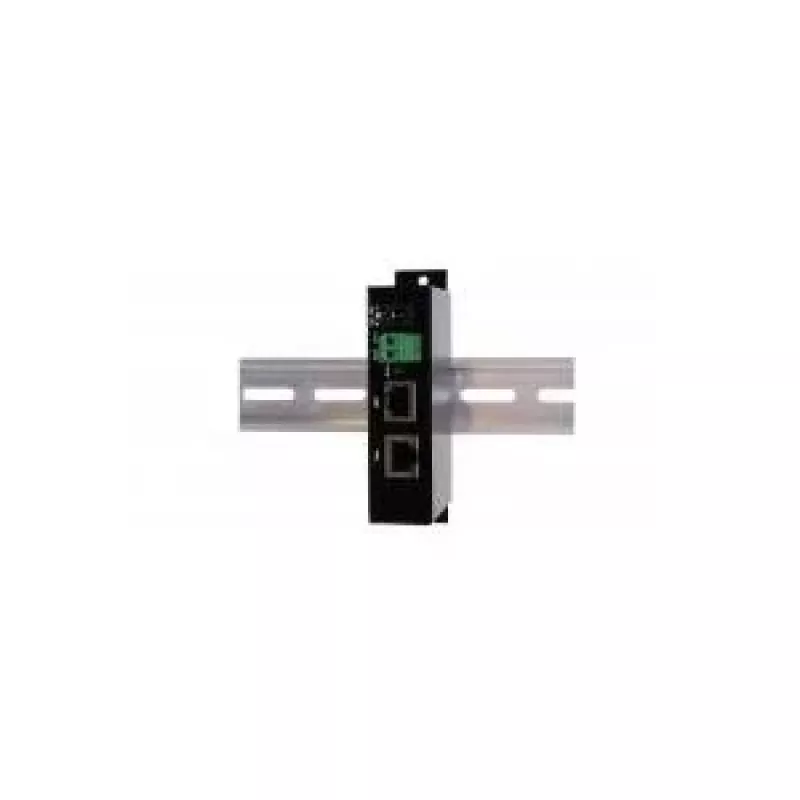

The EXSYS EX-6006PoE Power over Ethernet injector delivers 12 V and up to 15.4 W per port to compatible devices while passing Ethernet data at 10/100/1000 Mbit/s. Designed for compact installations, the unit measures 114 x 26 x 57 mm and weighs 0.3 kg, providing a small-footprint solution to supply power over existing network cabling. LED indicators show PoE status for quick visual checks. The injector is compliant with IEEE 802.3at signaling and is intended to simplify deployments by eliminating the need for separate power supplies at the powered device.

Advantages

The EX-6006PoE combines Gigabit-capable data throughput with PoE power delivery, allowing simultaneous network connectivity and power over a single Ethernet cable. Its compact black housing and lightweight construction make it easy to install in confined spaces or mount near network equipment. Integrated LEDs provide immediate status information, reducing troubleshooting time. Supporting standard PoE protocols ensures compatibility with a wide range of network endpoints that accept 12 V, 15.4 W power levels.

Suitable for

• Powering IP cameras and networked surveillance devices that accept 12 V PoE power
• Supplying power to wireless access points and small network devices in offices or homes
• Deployments where reducing separate power adapters and cable clutter is desirable
• Temporary or permanent installations requiring Gigabit Ethernet data rates alongside power

Key specifications

• PoE output voltage: 12 V
• Maximum PoE power per port: 15.4 W
• Data rates supported: 10/100/1000 Mbit/s (Gigabit Ethernet)
• Number of Ethernet (RJ‑45) ports: 2
• Product dimensions: 114 x 26 x 57 mm
• Weight: 0.3 kg
• Product colour: Black
• Standards compliance: IEEE 802.3at signaling for PoE

How to use

Connect the injector to a powered AC outlet according to the included safety instructions, then use standard Ethernet cables to connect the LAN side to your network switch or router and the PoE output to the powered device. Ensure the powered device accepts 12 V PoE and does not exceed the 15.4 W per-port power limit. Verify LED indicators to confirm PoE power delivery and link status before leaving the installation in service.

Recommendations

For reliable operation, use high-quality Cat5e or higher Ethernet cable, keep total cable length within standard Ethernet limits, and confirm device compatibility with 12 V, 15.4 W PoE. Locate the injector in a dry, ventilated area away from direct heat sources and follow manufacturer guidance for installation and safety.
