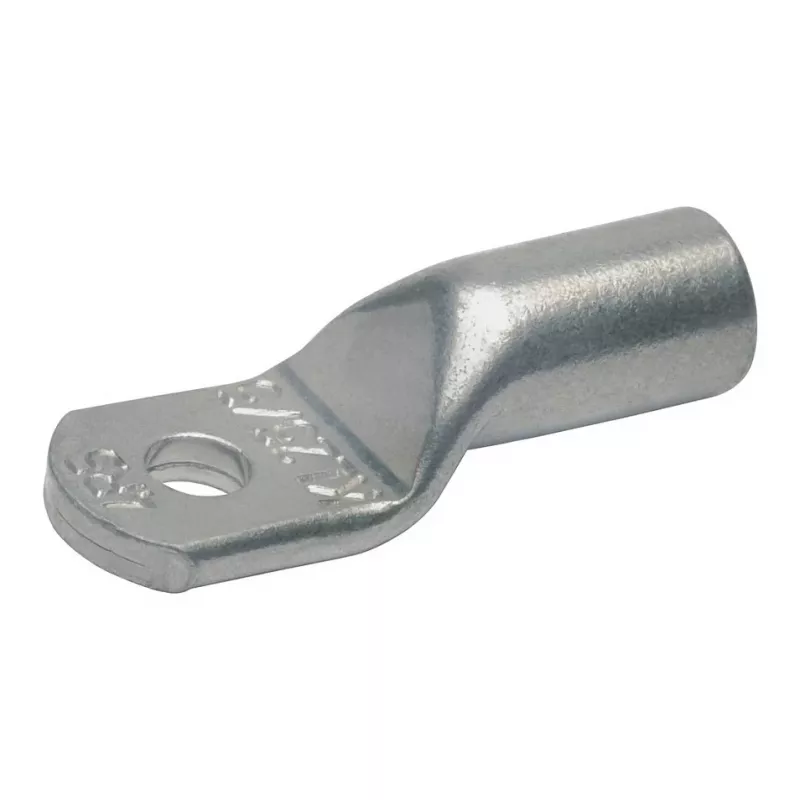

Klauke 4R12MS Terminal tubular 25mm² M12 E-Cu galvanizado estañado con orificio de inspección

The Klauke 4R12MS is a high-quality tubular cable lug designed for reliable electrical connections in power distribution, control cabinets, and industrial applications. Manufactured from electrolytic copper (E-Cu) with an electro-tinned surface, it offers excellent corrosion resistance and long-term conductivity. The integrated inspection hole allows for visual verification of proper conductor insertion before crimping, ensuring secure and consistent connections.

Advantages

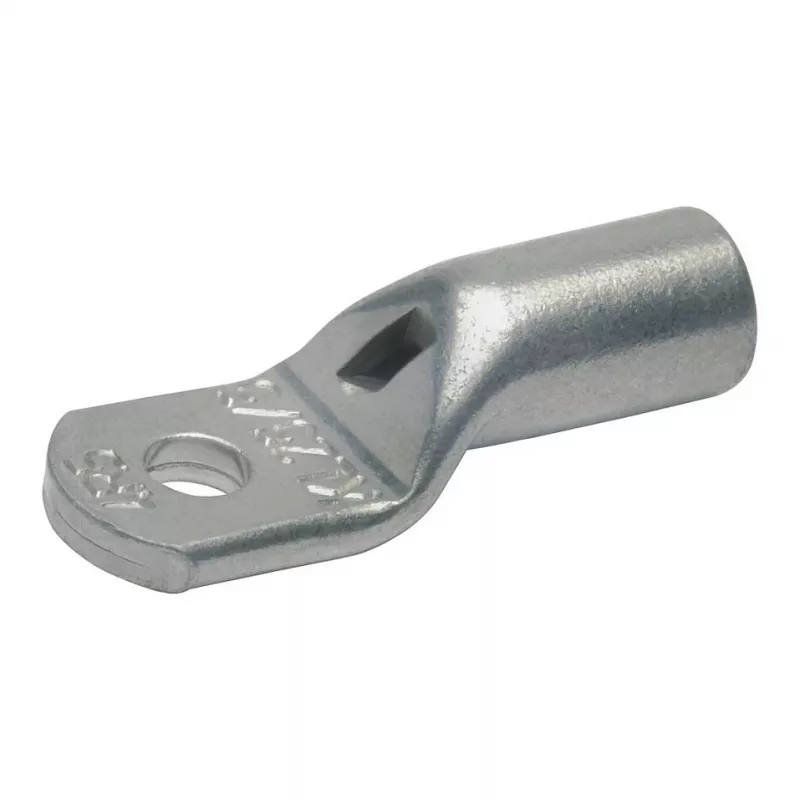

Electro-tinned surface provides superior corrosion protection and maintains low contact resistance. The inspection hole enables quick visual confirmation of correct conductor placement, reducing installation errors. Complies with DIN 46235 standard for crimp connections, ensuring compatibility with standard crimping tools and dies.

Suitable for

• Electrical connections in power distribution systems
• Control cabinet wiring
• Industrial machinery and equipment
• Renewable energy installations (solar, wind)
• Automation and process control

Key specifications

• Product Type: Tubular Cable Lug
• Cable Cross-Section: 25 mm²
• Bolt Hole Size: M12
• Material: Electrolytic Copper (E-Cu)
• Surface Treatment: Electro-tinned (Galvanically Tinned)
• Feature: With Inspection Hole
• Connection Method: Crimp
• Conductor Material Compatibility: Copper
• Conductor Type Compatibility: Stranded, Fine-Stranded, Solid (Class 2, 5, 6)
• Standard Compliance: DIN 46235
• Number of Bolt Holes: 1
• Manufacturer Series: R-Series
• Temperature Resistance: Up to 120°C
• Voltage Rating: Up to 1000 V
• Shape: Tubular

Recommendations

For optimal performance, use with Klauke crimping tools and dies designed for tubular cable lugs. Ensure proper conductor stripping and insertion depth. Always follow manufacturer guidelines for crimping force and die selection.
