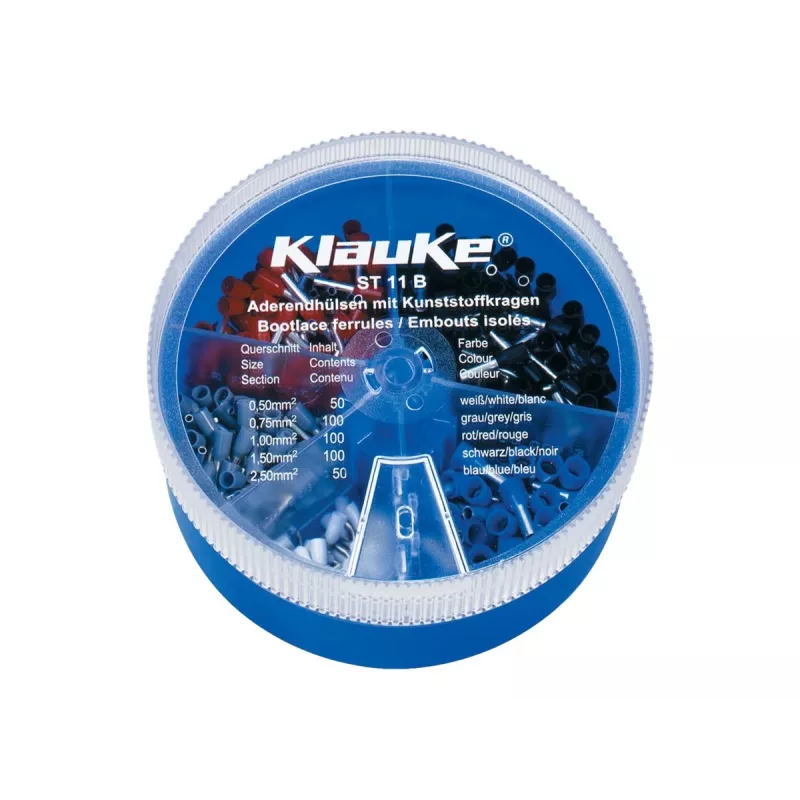

KLAUKE ST 11 B surtido de terminales tubulares aislados - 625 uds., 0,5-10 mm², caja gris/negra

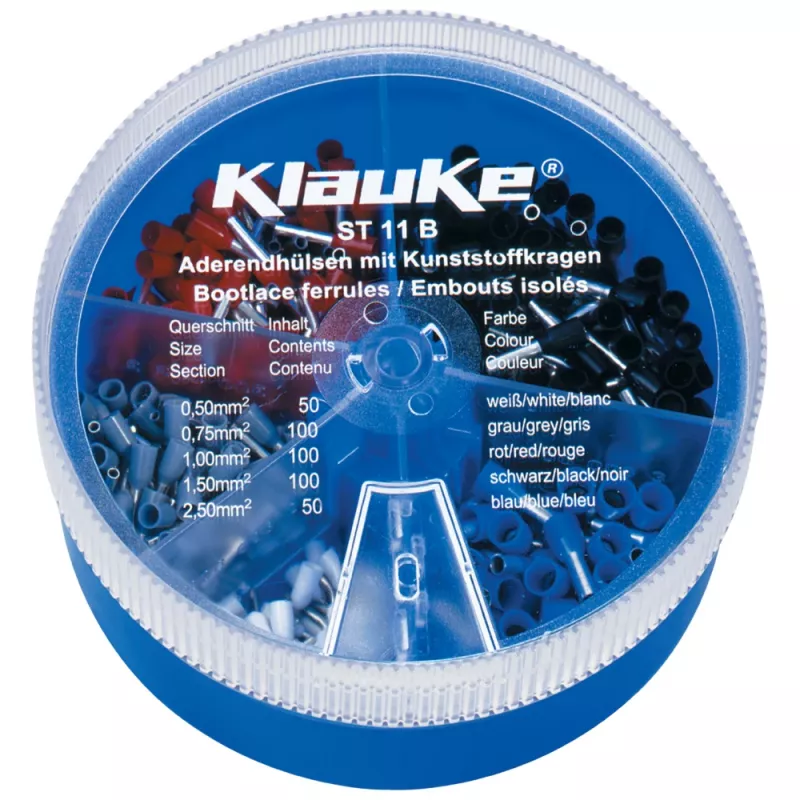

The KLAUKE ST 11 B is a comprehensive insulated wire end ferrule assortment set, designed for professional and industrial use. This set includes 625 pieces covering conductor cross-sections from 0.5 mm² to 10 mm², making it ideal for fine-stranded and super fine-stranded conductors. The ferrules are made of tin-plated electrolytic copper with polypropylene insulation, featuring a flared funnel-shaped entry for easy wire insertion. The set is color-coded according to DIN standards for quick size identification and comes in a durable grey and black storage box.

Advantages

This assortment set offers a wide range of sizes in one convenient package, saving time and ensuring you have the right ferrule for every job. The high-quality materials and DIN compliance guarantee reliable connections and long-lasting performance. The flared insulation design simplifies wire insertion, reducing installation time and errors.

Suitable for

• Electricians and electrical installers
• Industrial maintenance and repair
• Control cabinet building
• Automation and machinery wiring
• DIY enthusiasts and hobbyists

Key specifications

• Product Type: Insulated Wire End Ferrule Assortment Set
• Conductor Cross-Section Range: 0.5 mm² to 10 mm²
• Total Quantity: 625 pieces
• Ferrule Material: Electrolytic Copper (E-Cu), tin-plated
• Insulation Material: Polypropylene (PP)
• Insulation Type: Flared (funnel-shaped)
• Temperature Range: -40°C to +105°C
• Voltage Rating: Up to 600V
• Standards: DIN 46228 Part 4
• Color Coding Standard: DIN Color Code
• Included Sizes & Quantities: 0.5mm² (100 pcs, white), 0.75mm² (100 pcs, grey), 1.0mm² (100 pcs, red), 1.5mm² (100 pcs, black), 2.5mm² (100 pcs, blue), 4.0mm² (50 pcs), 6.0mm² (50 pcs), 10.0mm² (25 pcs)
• Box Color: Grey, Black

Recommendations

For optimal results, use with a compatible crimping tool designed for insulated ferrules. Always select the correct ferrule size matching the conductor cross-section to ensure a secure and reliable connection.
