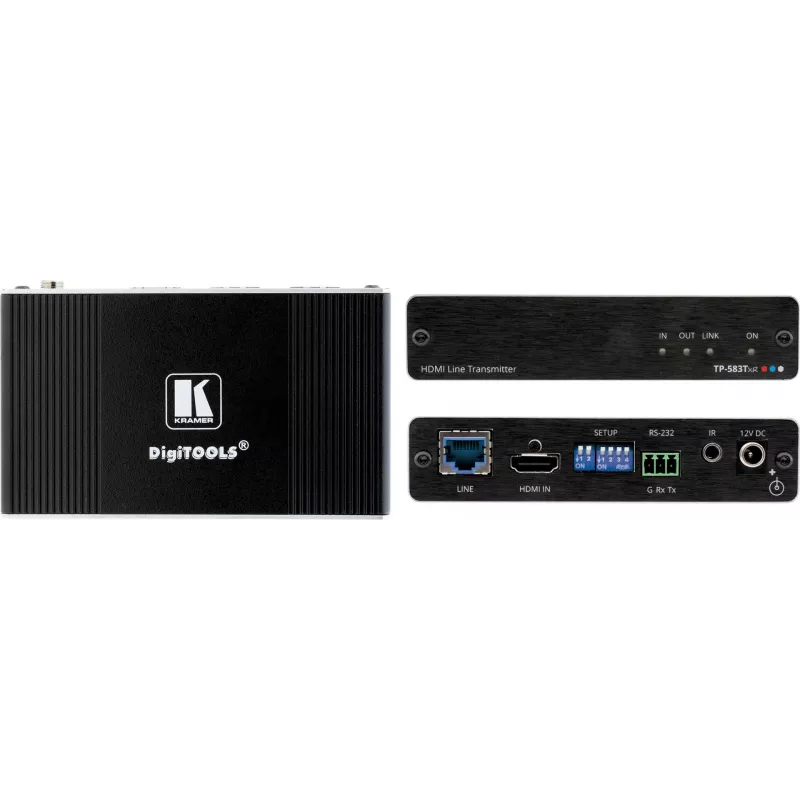

Kramer Electronics DigiTOOLS TP-583Txr Emisor HDBaseT - Extensión de vídeo, audio, infrarrojos y serie

The Kramer Electronics DigiTOOLS TP-583Txr is a professional HDBaseT transmitter designed for extending video, audio, infrared, and serial signals over long distances. Ideal for AV installations, it supports 4K@60Hz (4:2:0) up to 40m and 1080p up to 70m, ensuring high-quality signal transmission with zero latency. The transmitter features one HDMI input, one HDBaseT output, and bidirectional RS-232 and IR control, making it a versatile solution for conference rooms, classrooms, and digital signage.

Advantages

This transmitter offers seamless integration with existing systems, supporting HDCP 2.2 and HDBaseT 1.0 standards. Power over HDBaseT (PoH) eliminates the need for a local power supply when used with a compatible receiver, simplifying installation. The compact DigiTOOLS enclosure fits easily into any setup.

Suitable for

• Professional AV systems in corporate environments
• Educational institutions requiring reliable signal extension
• Digital signage and retail displays
• Home theater installations with long cable runs

Key specifications

• Product Type: HDBaseT Transmitter
• Max Resolution: 4K@60Hz (4:2:0)
• Max Range (4K): 40m (130ft)
• Max Range (1080p): 70m (230ft)
• Video Input: 1x HDMI
• Control/Data Inputs: 1x IR (3.5mm), 1x RS-232 (3-pin terminal block), 1x Ethernet (RJ-45)
• Output Port: 1x HDBaseT (RJ-45)
• HDCP Compliance: HDCP 2.2
• HDBaseT Compliance: HDBaseT 1.0
• Max Data Rate: 10.2 Gbps (3.4 Gbps per graphic channel)
• Ethernet Speed: 100BaseT
• Control Signals: Bidirectional RS-232, Bidirectional IR
• Power Over HDBaseT (PoH): Yes (from compatible receiver)
• HDMI Features: Deep Color, Lip Sync, CEC, Uncompressed Audio
• Video Latency: Zero Latency
• Enclosure Type: DigiTOOLS®

Recommendations

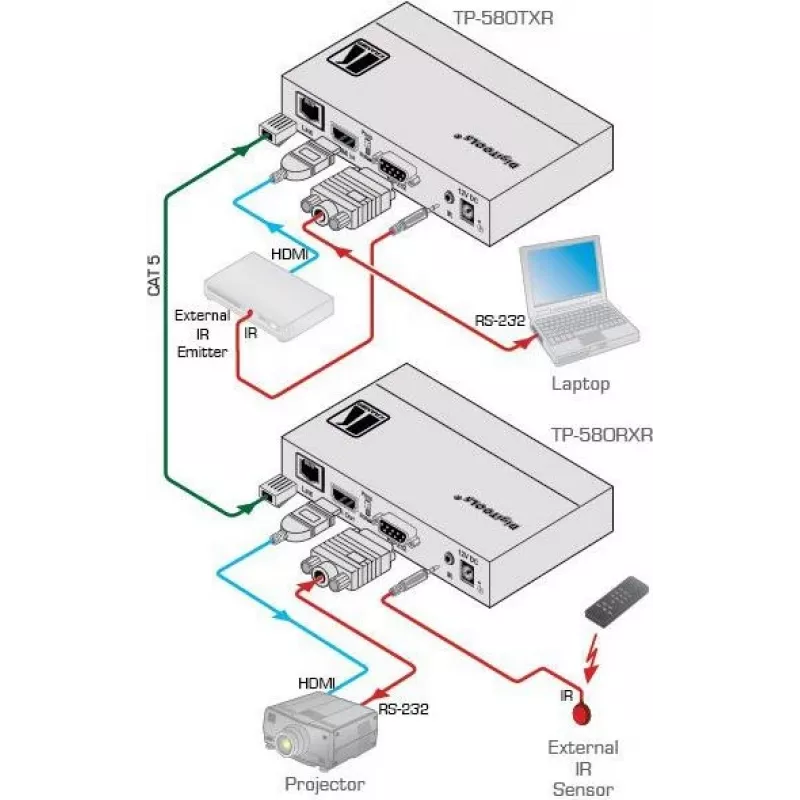

For optimal performance, pair the TP-583Txr with a compatible Kramer HDBaseT receiver. Ensure proper cable quality and termination for maximum range. This transmitter is an excellent choice for extending HDMI signals with control signals in professional AV installations.
