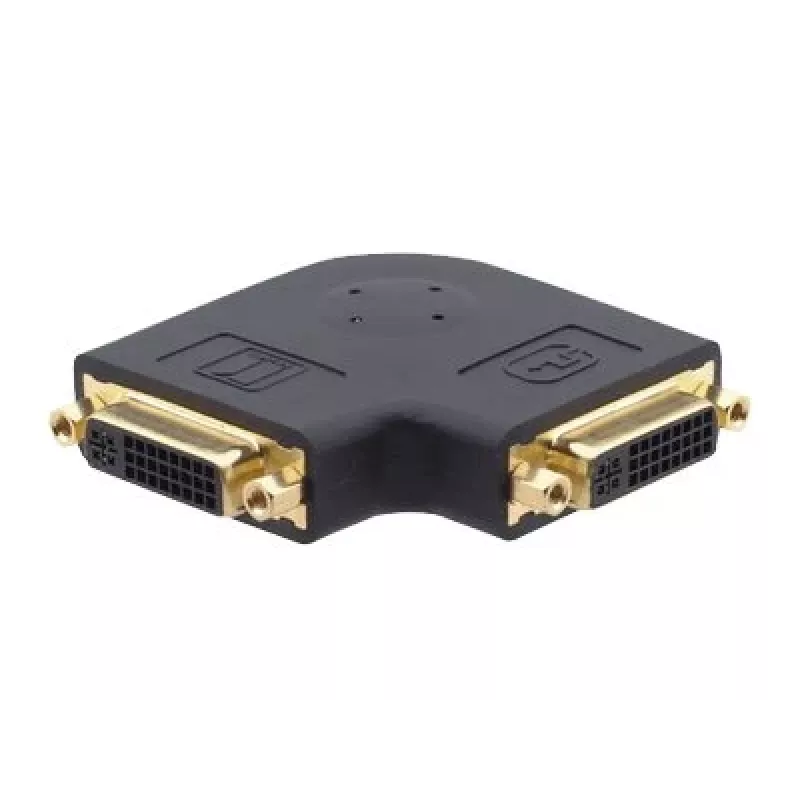

Kramer AD-DF/DF/RA-FLAT adaptador acoplador plano en ángulo recto conector hembra DVI-I a conector hembra DVI-I 99-9595211

This right-angled flat DVI-I coupler changes cable direction by 90 degrees, solving tight-space connection problems behind monitors or in wall plates. Unlike standard straight couplers, it routes the cable flat against the device, reducing strain and clutter.

Highlights

• DVI-I female to DVI-I female, right-angled flat design
• Supports digital and analog signals, dual link
• Passes through HDCP, plug and play
• Black housing, space-saving footprint

In daily use

The AD-DF/DF/RA-FLAT connects two DVI-I cables at a 90° angle, ideal for wall-mounted displays, rack installations, or any location where a straight coupler would protrude. It maintains full signal integrity for resolutions up to 2560x1600 digital and 1920x1200 analog, with dual-link support for high-bandwidth video.

Full specifications

• Connector 1: DVI-I female
• Connector 2: DVI-I female
• Orientation: right-angled, flat
• Signal support: digital and analog
• DVI link support: dual link
• Max digital resolution: 2560x1600 (WQXGA)
• Max analog resolution: 1920x1200 (WUXGA)
• HDCP support: pass-through
• Plug & Play: yes
• Housing colour: black

Final note

Kramer's AD-DF/DF/RA-FLAT is a durable, space-saving solution for right-angle DVI-I connections, built to maintain signal quality in professional AV environments.
