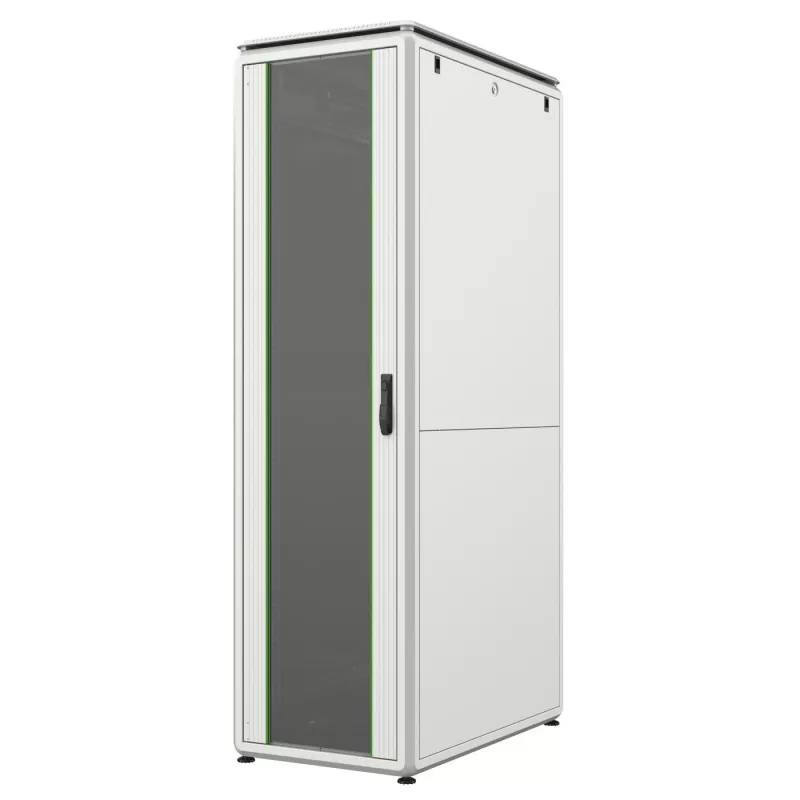

LANVIEW armario rack 19" 42U 600 x 600 mm, gris claro (RAL 7035), puerta de cristal, capacidad de carga 800 kg

When your network infrastructure grows beyond a few switches, scattered equipment becomes a serious risk. Cables tangle, airflow suffers, and security is an afterthought. The LANVIEW 19-inch 42U Rack Cabinet solves this by giving you a spacious, secure, and organized home for your servers, network devices, and patch panels. With a 42U capacity and a robust welded steel frame, it handles demanding installations while keeping everything neat and protected.

Who is it for

This rack cabinet is ideal for IT professionals, system integrators, and growing businesses that need to centralize their network hardware. Whether you're setting up a small server room, a wiring closet, or a data center, this freestanding cabinet provides the space and durability required for critical equipment. Its 800 kg static load capacity supports heavy servers and UPS units, making it a reliable foundation for your infrastructure.

Main features

• 42U of rack space in a standard 19-inch width, accommodating a wide range of equipment.
• Welded steel frame ensures exceptional stability and durability, even when fully loaded.
• Front tempered glass door with lock offers visibility while securing your gear.
• Rear steel door with lock provides additional security and easy access from the back.
• Removable and lockable side panels allow convenient installation and maintenance.
• Top and bottom cable entries with brush strips keep cables organized and dust out.
• Passive ventilation with preparation for fan units helps maintain optimal operating temperatures.
• Adjustable leveling feet and castors make positioning and mobility effortless.

Specifications

• Rack Standard: 19-inch
• Rack Capacity: 42U
• External Dimensions (W x D x H): 600 x 600 x 2055 mm
• Material: Steel
• Colour: Light Grey (RAL 7035)
• Front Door: Tempered glass with lock
• Rear Door: Steel with lock
• Side Panels: Removable and lockable
• Static Load Capacity: 800 kg
• Cable Entry: Top and bottom with brush strips
• Ventilation: Passive, prepared for fan units
• Protection Rating: IP20
• Frame Construction: Welded
• Included Accessories: 4x leveling feet, 4x castors, 2x keys for front/rear door, 2x keys for side panels, 20x cage nuts
• Compliance: IEC 60297-3-100, EN 60950-1

Tips

When installing your equipment, plan the layout to balance weight distribution. Use the included cage nuts to mount rails at the desired heights. Ensure proper airflow by leaving space between devices and consider adding optional fan units in the prepared slots for high-density setups. Regularly check that all locks are secure to maintain security and stability.
