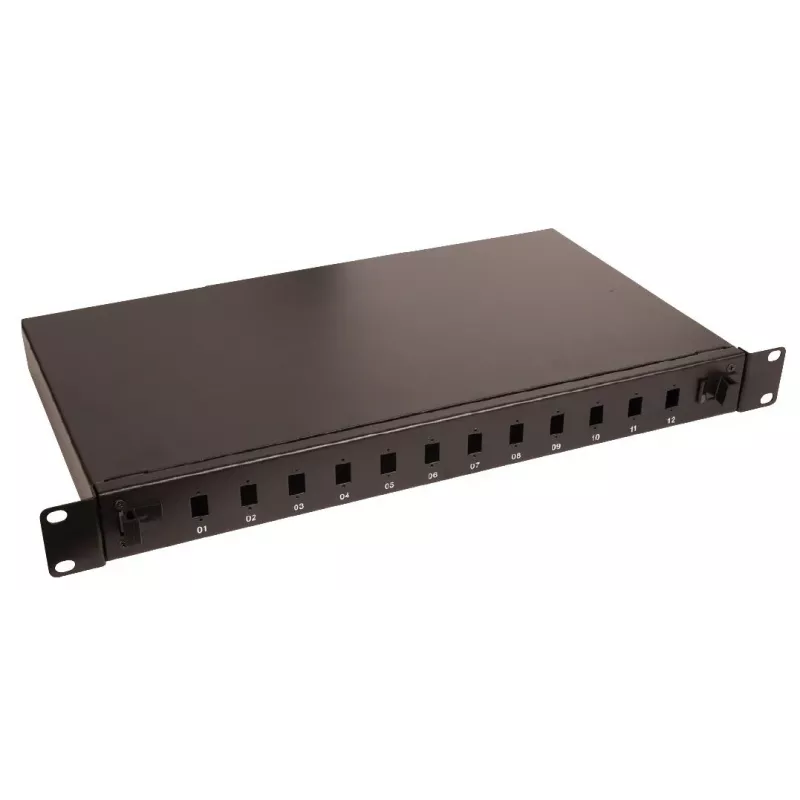

Lanview LVO231553 Patch panel 1U

The Lanview Patch Panel 1U LVO231553 is a 19" rack-mountable fibre patch panel for up to 12 SC simplex or LC duplex adapters. Constructed from black steel, it features a rear side with four Ø20 mm inlets suitable for PG screw connection and two rectangular 80 x 34 mm inlets with blank plates. The panel includes rubber-coated strain relief suitable for blown-fibre and fixtures for splice cassettes plus cable management cutouts to secure cables with ties or Velcro straps.

Advantages

This 1U fibre patch panel provides a compact, durable solution for organizing fibre connections in server rooms and telecom racks. Its steel construction and rubber-coated strain relief protect fibres and connectors, while the built-in splice cassette fixtures and cable management cutouts help maintain orderly routing and reduce mechanical stress on cables. The panel supports both SC simplex and LC duplex adapters, offering flexibility for mixed termination types.

Suitable for

• Data centres and server rooms for fibre cable termination
• Telecommunications racks and network closets
• Environments requiring up to 12 SC simplex or LC duplex ports
• Installations using blown-fibre or requiring splice cassette mounting

Key specifications

• Form factor: 19" 1U rack-mount
• Adapter capacity: up to 12 SC simplex or LC duplex
• Material and colour: black steel
• Weight: 3.29 kg
• Rear inlets: 4 × Ø20 mm (PG screw suitable) and 2 × 80 × 34 mm rectangular with blank plates
• Strain relief: rubber-coated, suitable for blown-fibre

How to use

Mount the patch panel in a standard 19" rack using the 1U height. Install SC simplex or LC duplex adapters on the front panel according to your cabling plan. Route incoming fibres through the rear inlets and secure them with the rubber-coated strain relief. Use the splice cassette fixtures if splicing is required, and secure fibre cables in the cable management cutouts with cable ties or Velcro straps to relieve stress. Close and secure the rectangular inlet plates if not in use.

Recommendations

For best performance, maintain bend radii recommended for your fibre type, keep connectors clean, and use appropriate cable ties or Velcro to avoid over-tightening. Verify adapter type (SC or LC) before installation to ensure compatibility with existing infrastructure.
