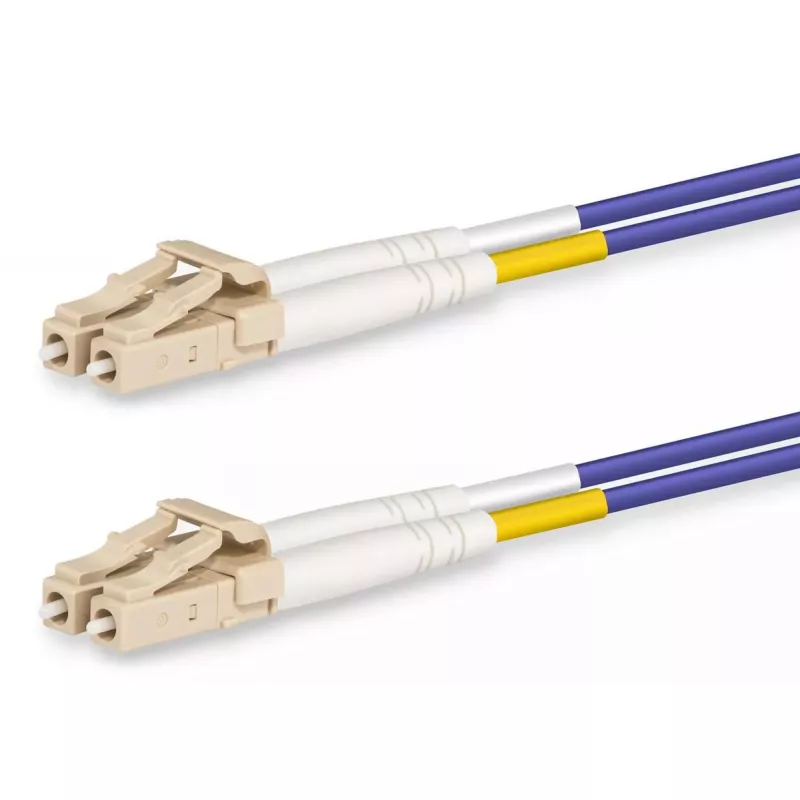

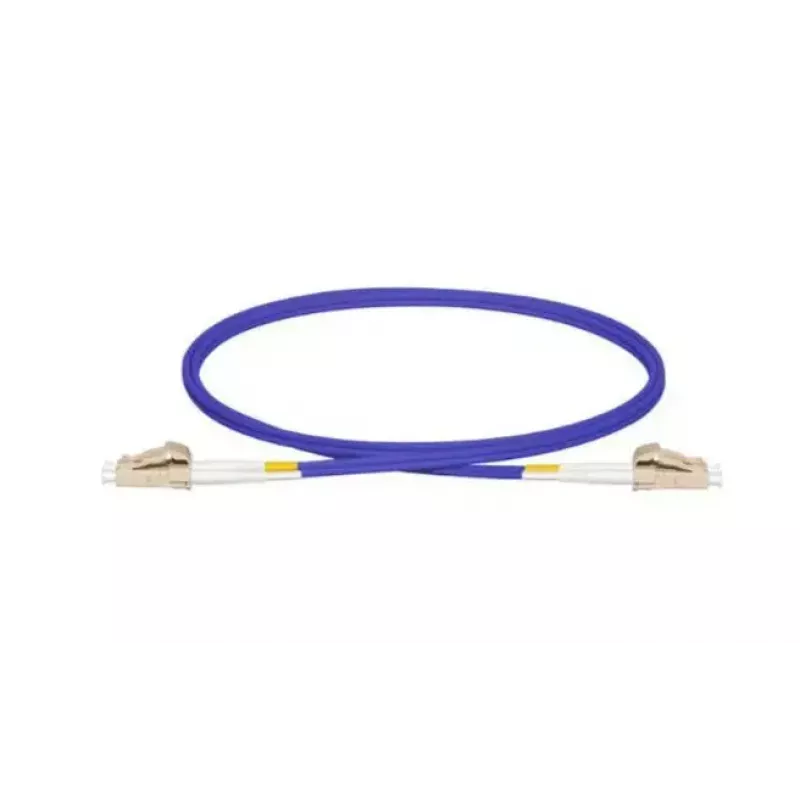

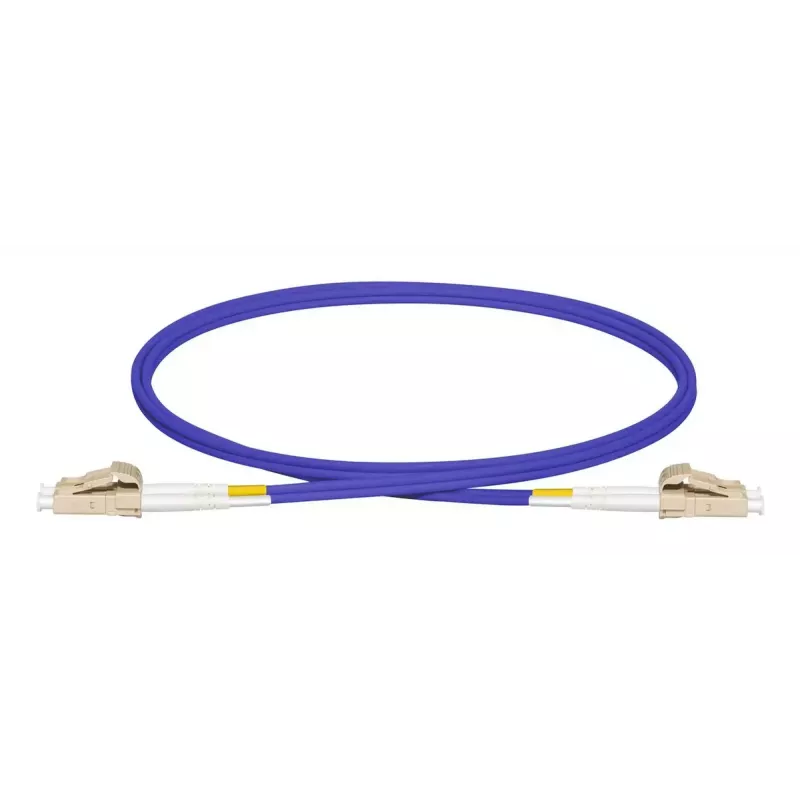

Lanview LVO231818 Cable InfiniBand/fibra óptica 5 m 2x LC beige

The Lanview LVO231818 is a 5 m OM4 multimode fibre optic patch cord with dual LC connectors at each end, designed for reliable high-speed data transmission. This 50/125 OM4 cable supports full-duplex connections and is suitable for modern 10G/40G/100G Ethernet environments. The cable uses LSZH jacket material and is compatible with common transceivers such as 40G BiDi SR, 10G SR, QSFP+ and SFP+.

Advantages

The OM4 multimode construction provides improved bandwidth and range for short-reach data centre links compared with lower-grade multimode fibres. Dual LC connectors ensure compact duplex connections and wide compatibility with networking equipment. The LSZH jacket reduces smoke and toxic emissions in case of fire, and the cable conforms to industry standards (Telcordia, EIA/TIA, IEC) for reliable interoperability.

Suitable for

• 10 Gigabit Ethernet (10G SR) links
• 40 Gigabit Ethernet connections (40G SR / 40G BiDi)
• 100 Gigabit Ethernet short-reach links
• Connections between QSFP+, SFP+ and similar transceivers
• Data centre patching and rack-to-rack fibre links

Key specifications

• Length: 5 m
• Fibre type: OM4 multimode (50/125 µm)
• Connectors: 2x LC to 2x LC (duplex)
• Jacket: LSZH
• Colour: Beige
• Weight: 0.005 kg
• Brand / MPN / EAN: Lanview / LVO231818 / 5704174790181

How to use

Inspect connectors and ports for dust or damage before installation. Insert each LC connector into the corresponding duplex port on transceivers or patch panels until it clicks. Use standard cable management to avoid tight bends and to maintain the recommended minimum bend radius for multimode fibre. For removal, depress the LC latch and pull straight out without twisting.

Recommendations

For optimal performance in 40G/100G deployments use certified OM4-compatible transceivers and follow data centre cabling standards; keep connector endfaces clean and use dust caps when not in use.
