Lanview RAR200BL carcasa para rack 2U montaje en pared rack negro

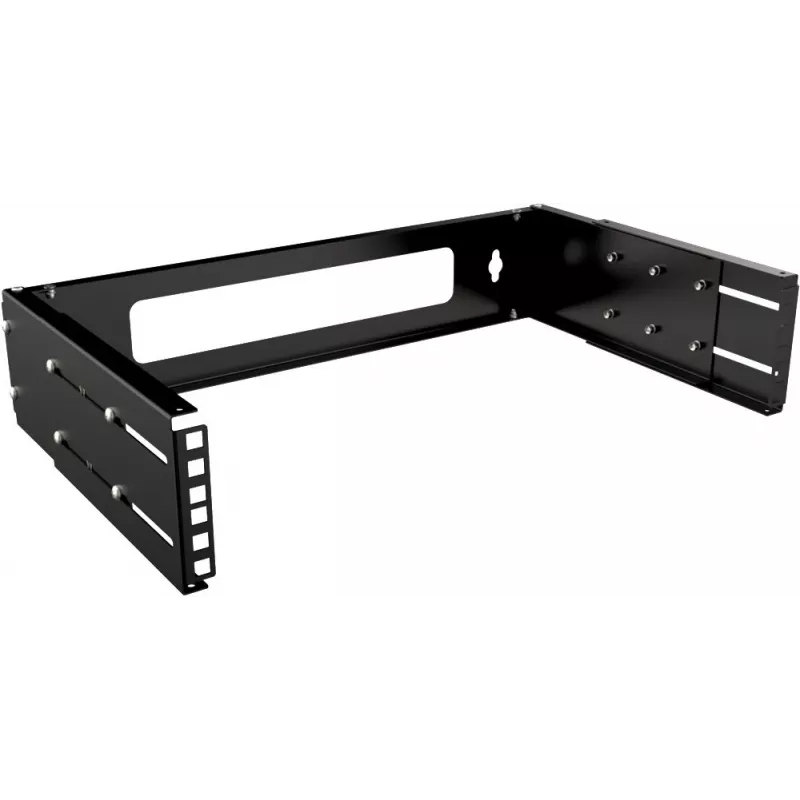

Rack Cabinet Lanview RAR200BL 2U Black is a compact wall-mounted 19" rack bracket with adjustable depth (150–350 mm) and external dimensions of 515 x 150-350 x 108 mm. Weighing 2 kg and finished in black, it is intended for mounting and housing smaller LAN equipment, surveillance devices and audiovisual hardware where space efficiency and secure mounting are required.

Advantages

The adjustable depth allows flexible placement of different devices while the wall-mounted, foldable design reduces floor footprint and facilitates installation in tight spaces. Constructed to fit standard 19" rack equipment, the unit is lightweight yet provides a stable mounting solution for network and AV devices.

Suitable for

• Small local area network (LAN) switches and patch panels
• Compact surveillance (CCTV) recorders and cameras' junction hardware
• Audio-visual components in small installations
• Space-constrained office, retail or residential racks

Key specifications

• Model: Lanview RAR200BL
• Form factor: wall-mounted 19" rack bracket, 2U
• Dimensions (external): 515 x 150-350 x 108 mm
• Adjustable depth: 150–350 mm
• Weight: 2 kg
• Finish: black
• MPN: RAR200BL, EAN: 5420016873989

How to use

Mount the bracket to a suitable wall surface using appropriate fasteners rated for the wall material and the combined weight of the unit and installed equipment. Adjust the depth to accommodate your devices, fit 19" equipment into the rackspace and secure each device with compatible rack screws. Fold the structure when needed to reduce its projection from the wall during maintenance or when equipment is removed.

Recommendations

Use only with devices whose combined weight does not exceed the carrying capacity of the wall and fasteners. Ensure proper ventilation around active equipment and secure cabling to prevent strain on connectors. For permanent installations consult a qualified installer.
