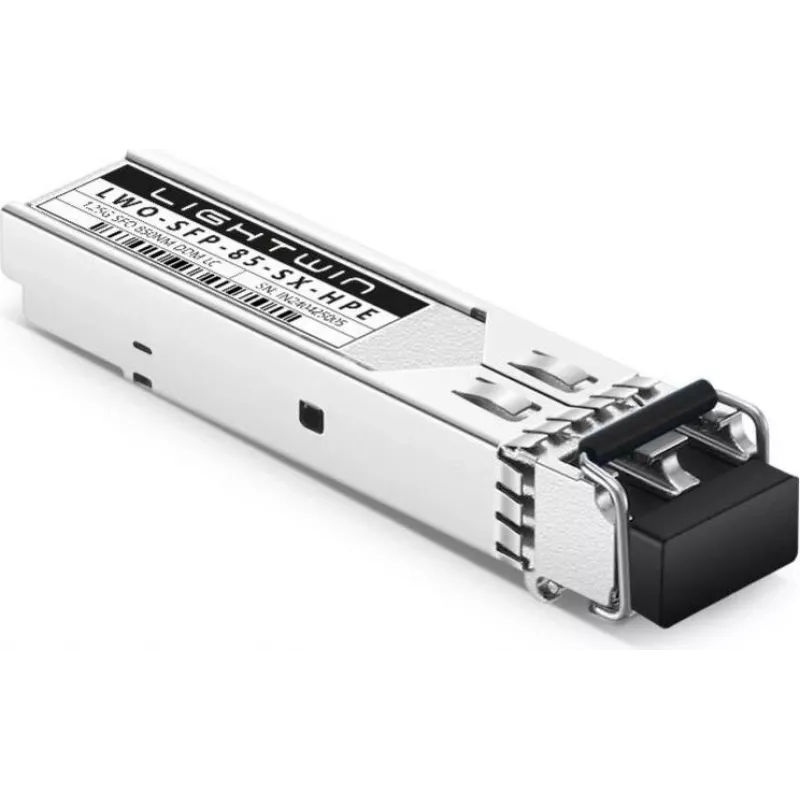

Lightwin Transceptor SFP 1,25G 850nm 550m LC dúplex multimodo DDM para HP Aruba (LWO-SFP-85-SX-HPE)

For HP Aruba network environments where reliable Gigabit Ethernet over multimode fibre is essential, the Lightwin LWO-SFP-85-SX-HPE stands out with its precise 850nm VCSEL transmitter and full DDM diagnostics. Unlike generic SFPs that may lack monitoring, this module lets you track temperature, voltage, laser bias, and optical power in real time, reducing downtime and simplifying troubleshooting.

Highlights

• 1000BASE-SX compliant for Gigabit Ethernet and 1G Fibre Channel
• Supports OM1, OM2, OM3, and OM4 multimode fibre up to 550 m
• LC Duplex connector with hot-swappable SFP form factor
• Digital Diagnostic Monitoring (DDM/DOM) for proactive maintenance
• Commercial temperature range 0°C to 70°C for standard deployments

In daily use

Installation is straightforward: insert the module into any compatible HP Aruba SFP port and connect your existing multimode cabling. The VCSEL laser and PIN photodiode ensure stable 1.25 Gbps links across campus or data centre distances. Because the module is hot-swappable, you can replace or upgrade without powering down the switch, minimising network disruption.

Full specifications

• Brand: Lightwin
• Model: LWO-SFP-85-SX-HPE
• MPN: LWO-SFP-85-SX-HPE
• EAN: 9120117656677
• Transceiver type: SFP
• Data rate: 1.25 Gbps
• Wavelength: 850 nm
• Maximum transfer distance: 550 m
• Fibre mode: Multimode
• Connector: LC Duplex
• DDM/DOM: Yes
• Compatibility: HP Aruba Networking
• Standard: IEEE 802.3z 1000BASE-SX
• Transmitter: VCSEL
• Receiver: PIN photodiode
• Power supply: 3.3 V
• Operating temperature: 0°C to 70°C
• Hot-swappable: Yes
• Supported cable types: OM1, OM2, OM3, OM4 multimode fibre

Final note

Choose the Lightwin LWO-SFP-85-SX-HPE for a dependable, fully monitored multimode fibre link that integrates seamlessly with your HP Aruba infrastructure.
