LogiLink PDU8C06 PDU de 19" 1U con 8 tomas Schuko y protección contra sobretensiones, 2x USB-C, protección contra sobrecargas, cable de 2 m, negro/plata

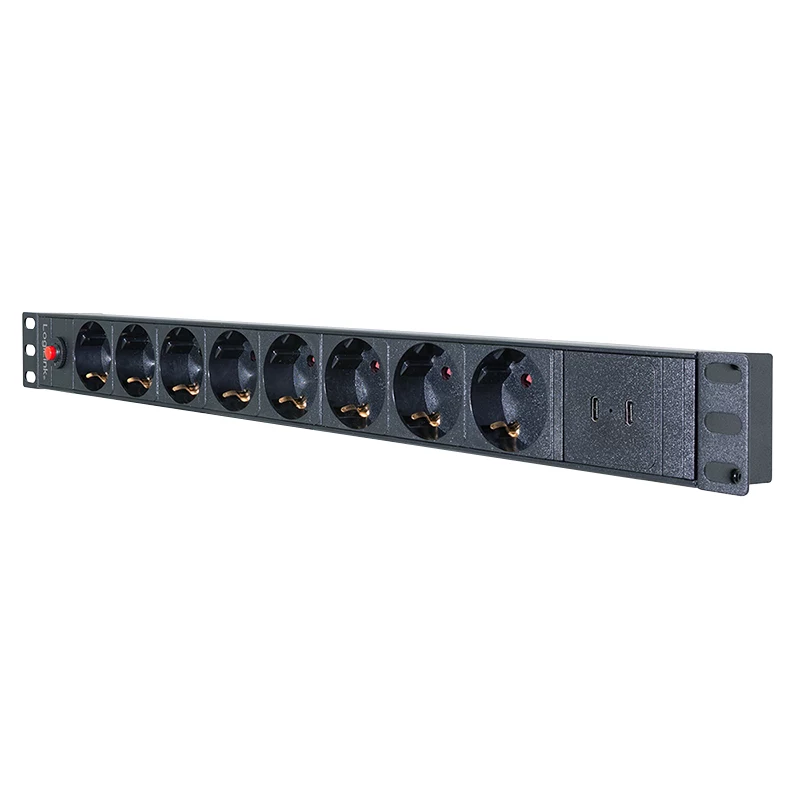

When rack space is at a premium and clean power distribution is non-negotiable, the LogiLink PDU8C06 steps in as a 19-inch, 1U unit that pairs eight Schuko outlets with two USB-C charging ports and a robust surge protection circuit. Unlike basic power strips that merely split a single feed, this PDU actively guards connected hardware against voltage spikes while its illuminated switch and overload protection keep the entire rack safe and visible at a glance.

Highlights

• 8 Schuko (Type F) outlets for equipment distribution in server cabinets and network racks

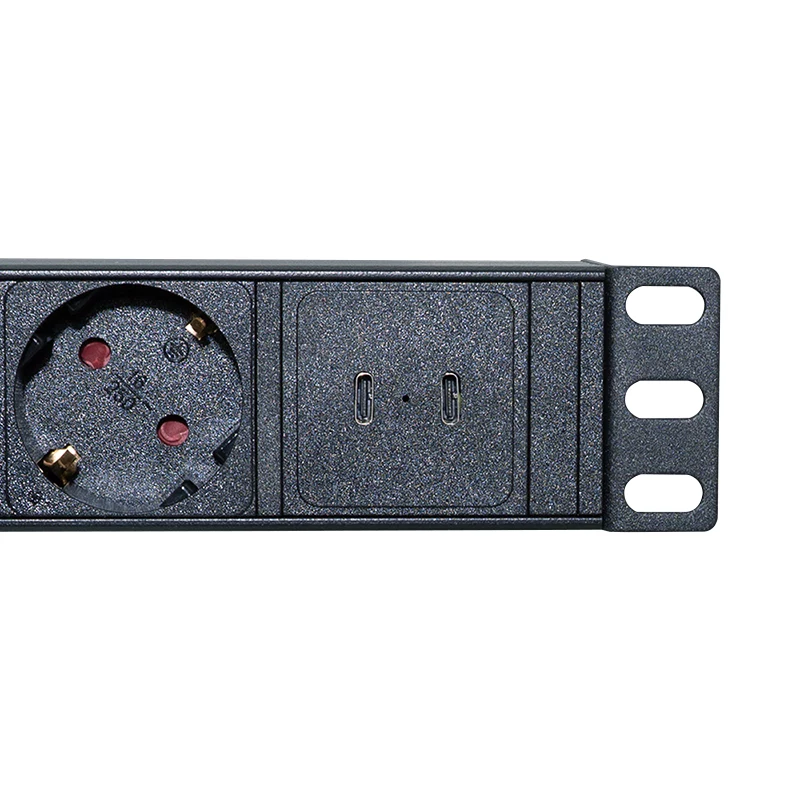

• 2 USB-C ports for direct charging of modern devices without extra adapters
• Integrated surge protection with status indicator to confirm active defense
• Overload protection prevents excessive current draw from damaging connected equipment
• 19-inch rackmount form factor, 1U height, with aluminum profile housing

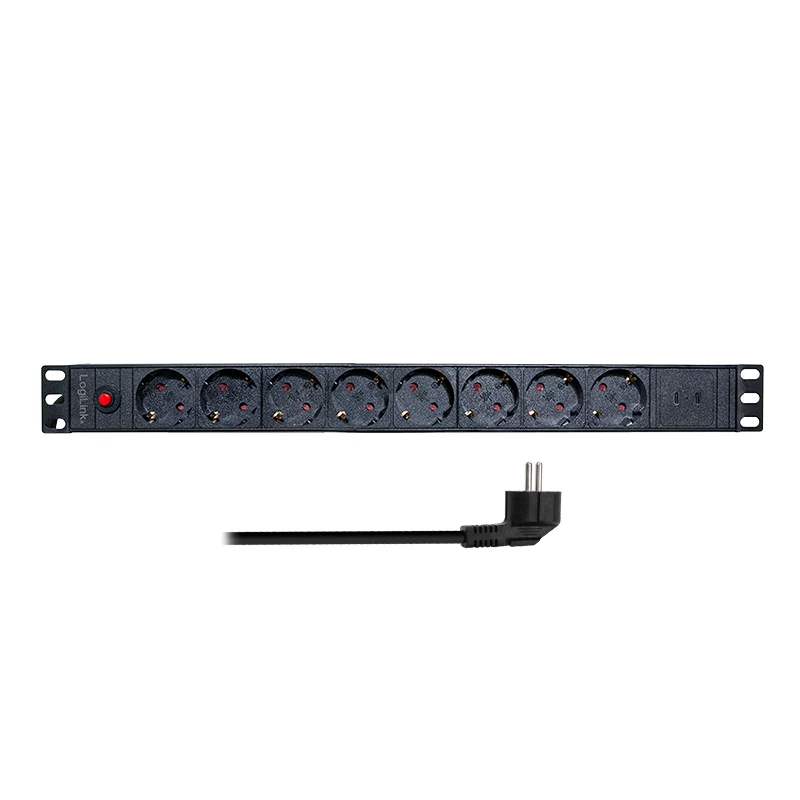

• 2 m H05VV-F 3G1.5mm² cable with Schuko plug for flexible installation

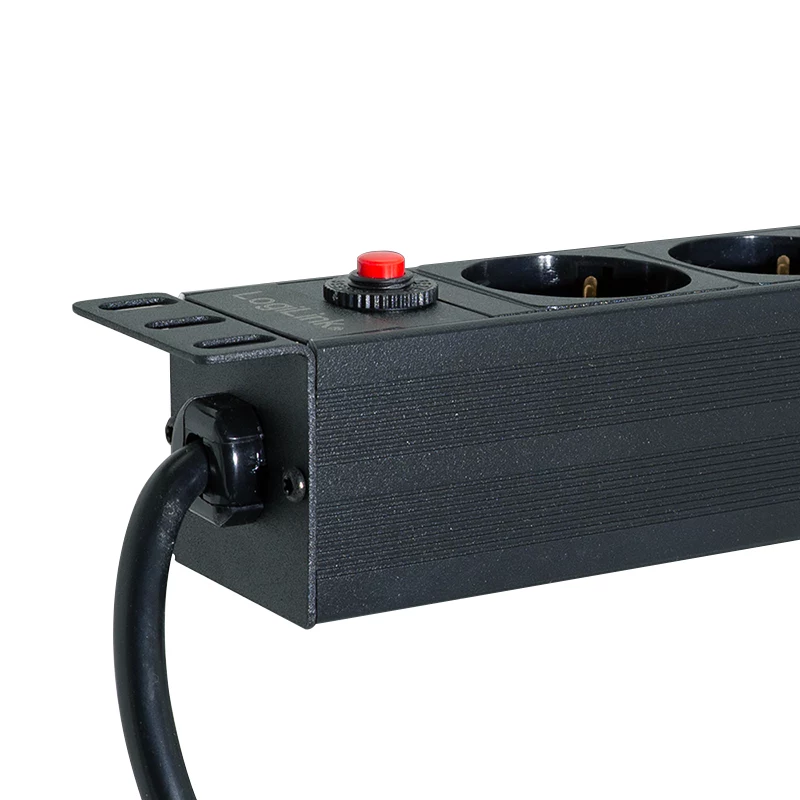

• Illuminated on/off switch for quick power control and visual status

In daily use

Mount the PDU8C06 horizontally in any standard 19-inch rack and connect it to a 230 V mains supply. The eight Schuko sockets accept standard European plugs, while the two USB-C ports deliver convenient charging for phones, tablets, or other USB-C devices. The surge protection indicator confirms that protection is active, and the illuminated switch lets you cut power to all outlets instantly when maintenance is required. The aluminum housing dissipates heat effectively and withstands the demands of continuous operation.

Full specifications

• Outlets: 8 × Schuko (Type F)
• USB ports: 2 × USB-C
• Surge protection: Yes, with indicator
• Overload protection: Yes
• Rack capacity: 1U, 19-inch
• Housing: Aluminum profile
• Cable: 2 m, H05VV-F 3G1.5mm², Schuko plug
• Switch: Illuminated on/off
• Maximum current: 16 A
• Maximum power: 3680 W
• Operating voltage: 250 V AC
• Frequency: 50/60 Hz
• Colour: Black / Silver
• Certifications: CE, RoHS

Final note

The LogiLink PDU8C06 is a dependable power distribution solution for professional racks, combining surge and overload protection with modern USB-C charging in a compact 1U design.
