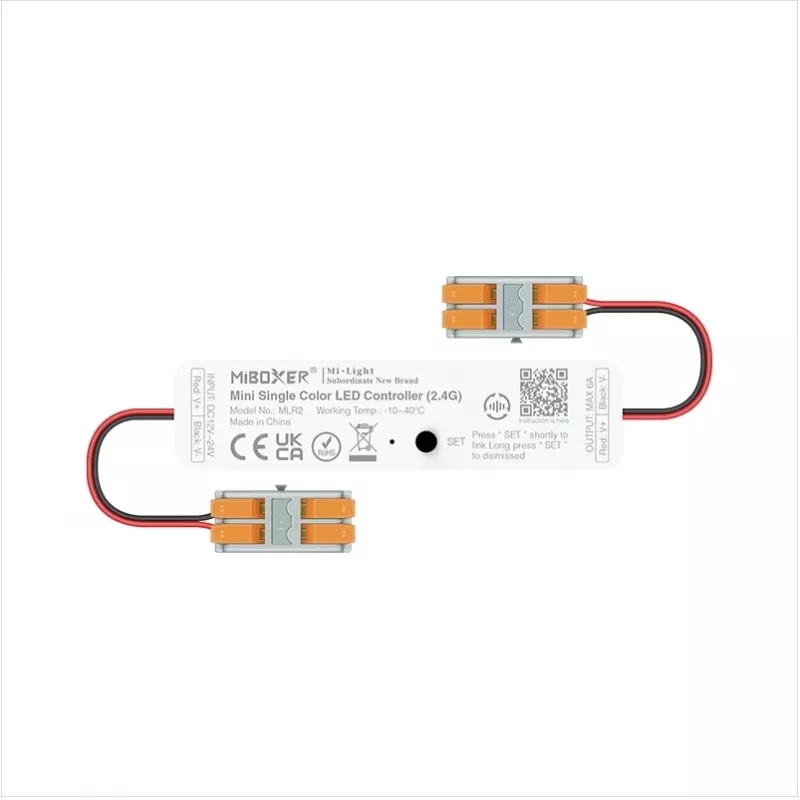

Miboxer controlador LED Mini de un solo color 2.4G (MLR2)

Imagine adjusting the brightness of your under-cabinet LED strips from across the room, without reaching for a wall switch. The Miboxer LED Controller Mini Single Color 2.4G (MLR2) makes this possible. This compact RF controller handles single-color LED strips or fixtures, letting you dim from 0 to 100% with any Miboxer 2.4G remote or the WL-Box1 gateway. It runs on 12-24V DC, supports up to 6A, and delivers up to 144W at 24V. The 2.4GHz signal passes through walls and obstacles, giving you reliable control up to 30 meters away.

Key specifications

• Control type: 2.4GHz RF wireless
• Supported LED type: Single color (dimmable)
• Input voltage: DC 12V-24V
• Output voltage: DC 12V-24V
• Max output current: 6A
• Max output power: 72W at 12V, 144W at 24V
• Control distance: up to 30 meters (98 feet)
• Number of channels: 1
• Dimming range: 0-100%
• Connection type: screw terminals
• Protection: overload and short circuit protection
• Housing material: ABS plastic
• Operating temperature: -20°C to 60°C
• Compatibility: Miboxer 2.4G RF remotes and WL-Box1 gateway

Why choose it

The MLR2 offers reliable wireless dimming without complex wiring or line-of-sight. Its compact ABS housing fits easily into junction boxes or behind fixtures, while screw terminals ensure a secure connection. With a wide input voltage range and robust protection features, it is built to handle demanding installations. The 2.4GHz RF signal penetrates walls and obstacles, giving you flexible control from anywhere in the room.

Ideal use cases

• Residential under-cabinet lighting and cove lighting
• Retail display lighting that needs adjustable brightness
• Hospitality settings where mood lighting is essential
• DIY smart home projects using Miboxer remotes

Good to know

This controller works exclusively with Miboxer 2.4G RF remotes or the WL-Box1 gateway. It does not support Wi-Fi or Bluetooth directly. For advanced automation, pair it with the WL-Box1 to integrate with the Miboxer app. The screw terminal connections accept wire sizes from 0.5 to 2.5 mm². The unit is not waterproof, so install it in a dry, protected location.
