MiBoxer D3-T decodificador LED DMX512/RDM-LE de 3 canales, carril DIN, 12–48 V DC

MiBoxer D3-T is a three-channel constant-voltage LED decoder for DMX512 installations, including RGB LED strips. It supports RDM for remote device management. The input is 12–48 V DC, with a maximum output current of 6 A per channel and 18 A in total. Match the LED strip and power-supply voltage and observe both current limits.

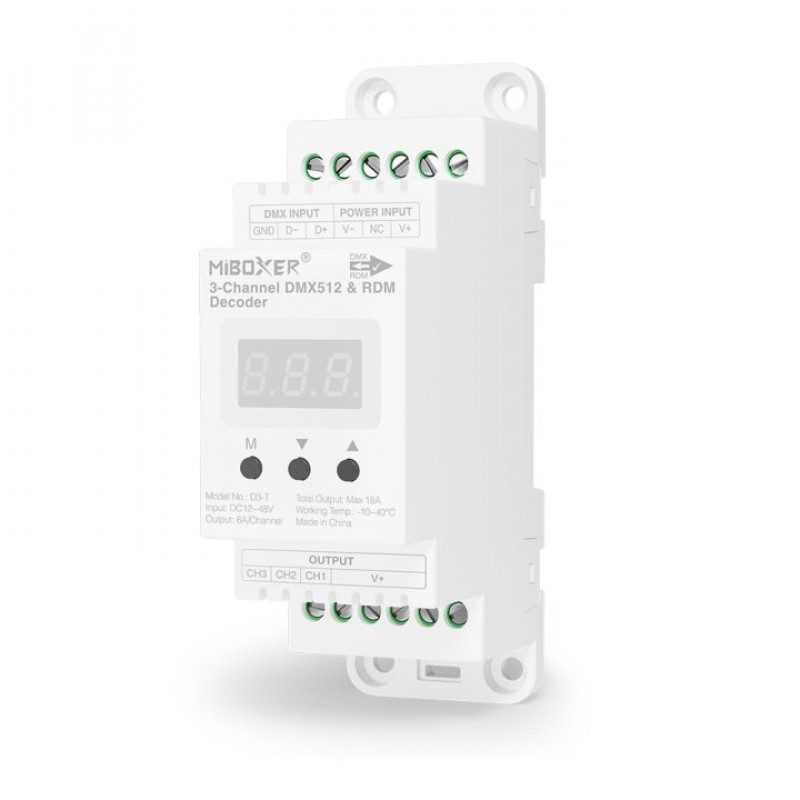

A digital display and three buttons allow the starting DMX address to be set on the device. The labelled screw terminals provide connections for the DMX signal, DC power and LED outputs. This model uses a wired DMX control connection; its three outputs correspond to the RGB channels of a compatible strip.

The white enclosure mounts on a standard 35 mm DIN rail. Its IP20 rating is intended for dry indoor installations, with an operating temperature of −10 to +40 °C. Provide suitable ventilation and access to the terminals. The controller does not replace a DC power supply or DMX control desk; select these separately for the installation. Check the labels and wiring diagram before connection.
