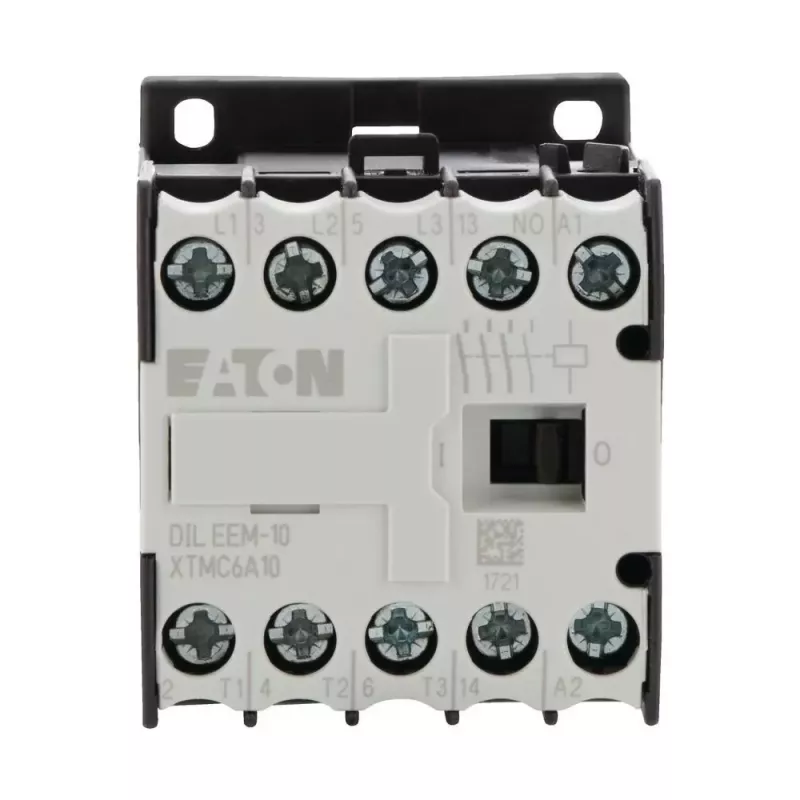

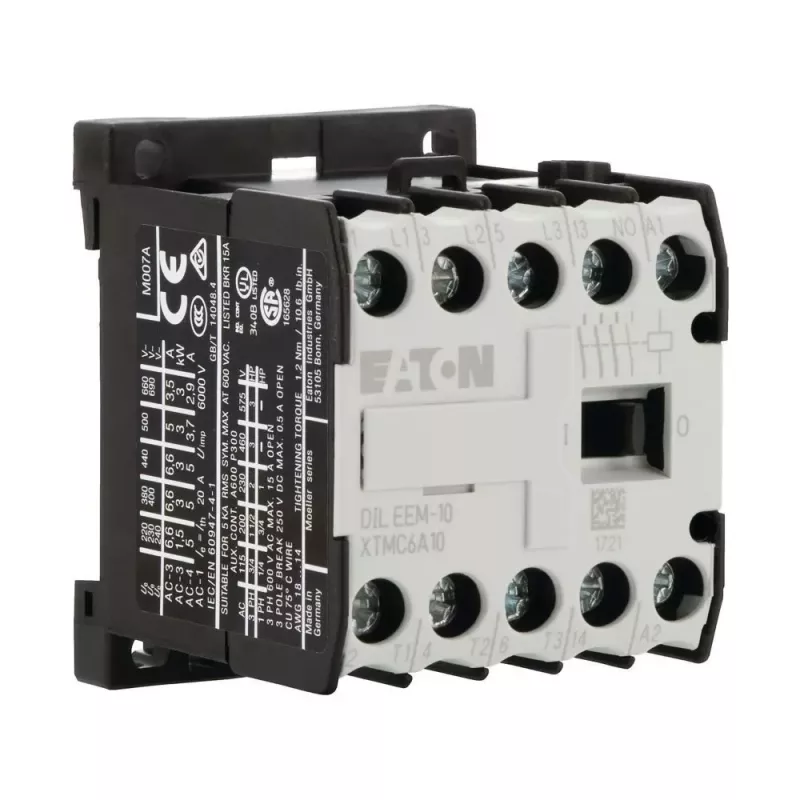

Minicontactor Eaton DILEEM-10, 3 polos, 9 A, bobina 230 V AC / 240 V AC, 1 contacto auxiliar NO, aislamiento 690 V 051608

With a rated insulation voltage of 690 V and compliance with IEC/EN 60947-4-1, UL 508, and CSA-C22.2 No. 14-05, the Eaton DILEEM-10 is a compact 3-pole mini contactor built for reliable switching in industrial control circuits.

Overview

The DILEEM-10 handles up to 9 A (AC-3, 400 V) and 4 kW motor power, making it suitable for small motors and resistive loads. Its coil accepts 230 V at 50 Hz or 240 V at 60 Hz, and it includes 1 normally open auxiliary contact for control feedback. The device mounts on standard DIN rail or with screws, and screw terminals ensure secure wiring.

What stands out

• Rated insulation voltage 690 V for safe operation in high-voltage systems
• Compact 3-pole design with 9 A AC-3 rating and 4 kW motor power
• Dual-frequency coil: 230 V 50 Hz / 240 V 60 Hz
• 1 NO auxiliary contact for status signaling
• DIN rail or screw mounting for flexible installation
• IP20 protection, operating temperature -25 to 50 °C

Technical details

• Product type: Mini contactor
• Number of poles: 3
• Rated operational current (AC-3, 400 V): 9 A
• Rated operational power (AC-3, 400 V): 4 kW
• Coil voltage: 230 V AC (50 Hz), 240 V AC (60 Hz)
• Auxiliary contacts: 1 NO
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Main circuit frequency: 50/60 Hz
• Standards: IEC/EN 60947-4-1, UL 508, CSA-C22.2 No. 14-05
• Certifications: CE
• Operating temperature range: -25 to 50 °C
• Mounting type: DIN rail / screw mounting
• Protection degree: IP20
• Terminal type: Screw terminals
• Electrical life (AC-3): 1.5 x 10^6 operations
• Mechanical life: 10 x 10^6 operations
• Rated short-circuit withstand current (Icw): 1 kA (1 s)

Our verdict

The Eaton DILEEM-10 delivers robust switching in a compact footprint. Its 690 V insulation rating and dual-frequency coil make it a versatile choice for machine builders and panel shops.
