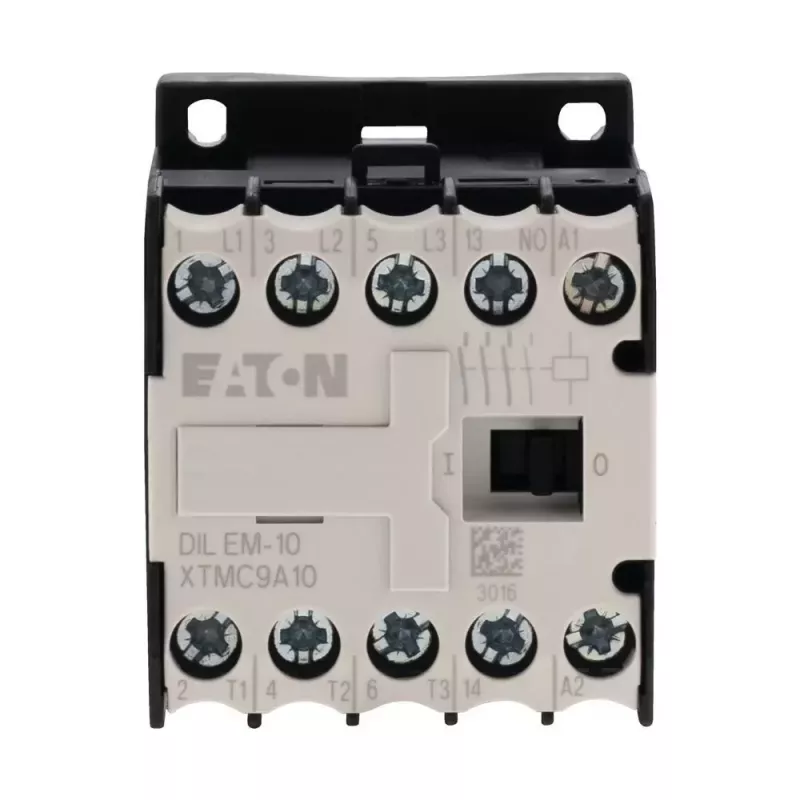

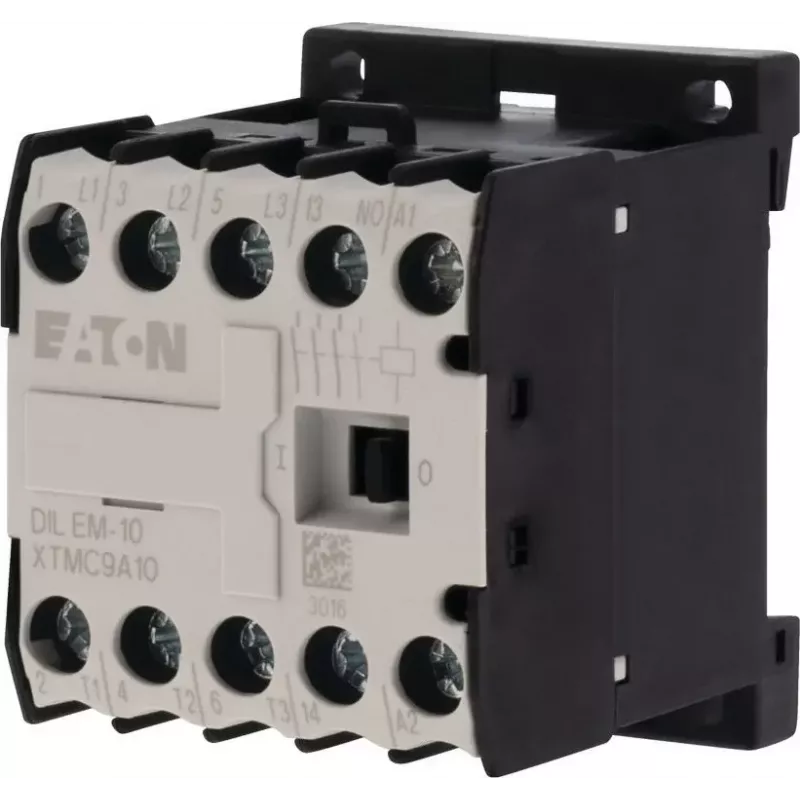

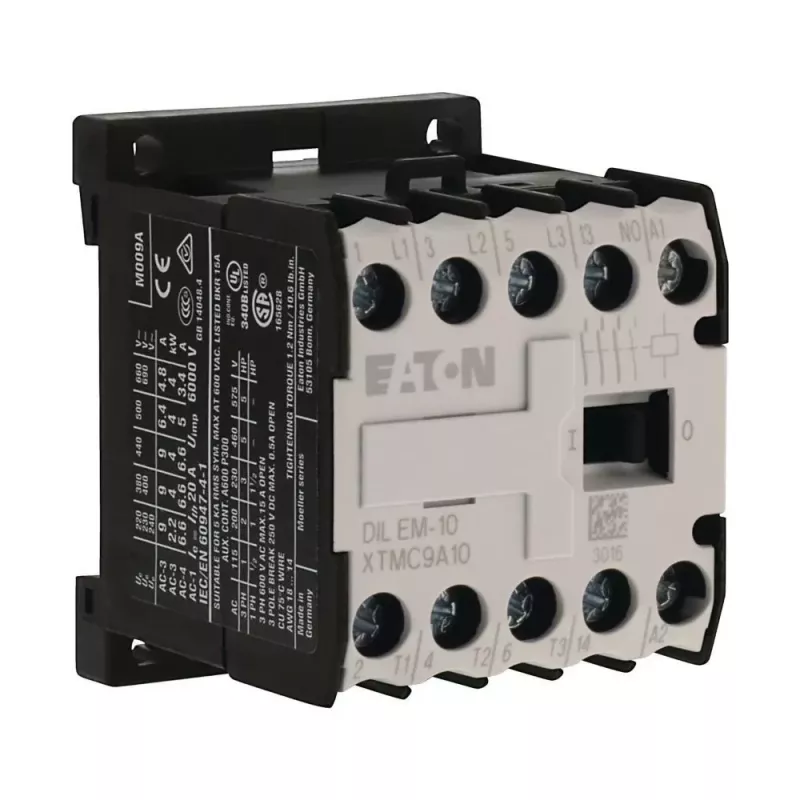

Minicontactor Eaton DILEM-10-G(12VDC), 3 polos, bobina 12 V DC, 9 A AC-3, 1 contacto auxiliar NO, IP20, bornes de tornillo, montaje en carril DIN/atornillado, negro/blanco 079594

In industrial control panels, reliable switching of motors and resistive loads is non-negotiable. The Eaton DILEM-10-G(12VDC) mini contactor answers that need with compact, dependable performance. This 3-pole contactor is engineered for 12 V DC control circuits, making it ideal for applications where low-voltage DC coils are required. Its 9 A AC-3 rating at 400 V handles small motors up to 4 kW, while the 20 A AC-1 rating supports resistive and lighting loads. The integrated 1 NO auxiliary contact provides status feedback or interlocking without extra components. With IP20 protection, screw terminals, and flexible DIN rail or screw mounting, it installs quickly in any standard enclosure. The black and white housing offers clear terminal identification and a professional look. Built to IEC/EN 60947, VDE 0660, UL, and CSA standards, this contactor ensures long-term reliability in demanding environments.

Who is it for

This mini contactor is perfect for panel builders, machine OEMs, and maintenance technicians who need a compact, DC-coil switching solution for motor control, heating, lighting, or auxiliary circuits. It suits applications in packaging machines, conveyors, HVAC equipment, and building automation where space is limited and reliability is critical.

Main features

• 3-pole main contacts rated 9 A AC-3 (400 V) for motor switching up to 4 kW
• 1 normally open (NO) auxiliary contact for signaling or control logic
• 12 V DC coil for low-voltage control circuits
• IP20 degree of protection for use in enclosed panels
• Screw terminals ensure secure, vibration-resistant connections
• Mounts on 35 mm DIN rail or with screws for flexible installation
• Compact dimensions: 45 mm width, 52 mm height, 58 mm depth
• Black and white housing for clear terminal identification
• Meets international standards: IEC/EN 60947, VDE 0660, UL, CSA

Specifications

• Brand: Eaton
• Model: DILEM-10-G(12VDC)
• MPN: 079594
• EAN: 4015080795940
• Product type: Mini contactor
• Number of main poles: 3
• Auxiliary contacts: 1 NO
• Coil voltage: 12 V DC
• Rated operational current AC-3 (400 V): 9 A
• Rated operational power AC-3 (400 V): 4 kW
• Rated operational current AC-1 (400 V): 20 A
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Degree of protection: IP20
• Mounting: DIN rail / screw
• Terminal type: Screw terminals
• Ambient operating temperature: -25 to +50 °C
• Standards: IEC/EN 60947, VDE 0660, UL, CSA
• Colour: Black / White
• Width: 45 mm
• Height: 52 mm
• Depth: 58 mm

Tips

Always verify the coil voltage matches your control circuit (12 V DC). For motor loads, select the contactor based on AC-3 rating; for resistive loads, use AC-1. Ensure adequate ventilation in the enclosure to maintain operating temperature limits. Use appropriate wire ferrules with screw terminals for reliable connections. The auxiliary contact can be used for feedback to a PLC or indicator lamp.
