Módulo receptor GPS USB Navilock NL-8022MU

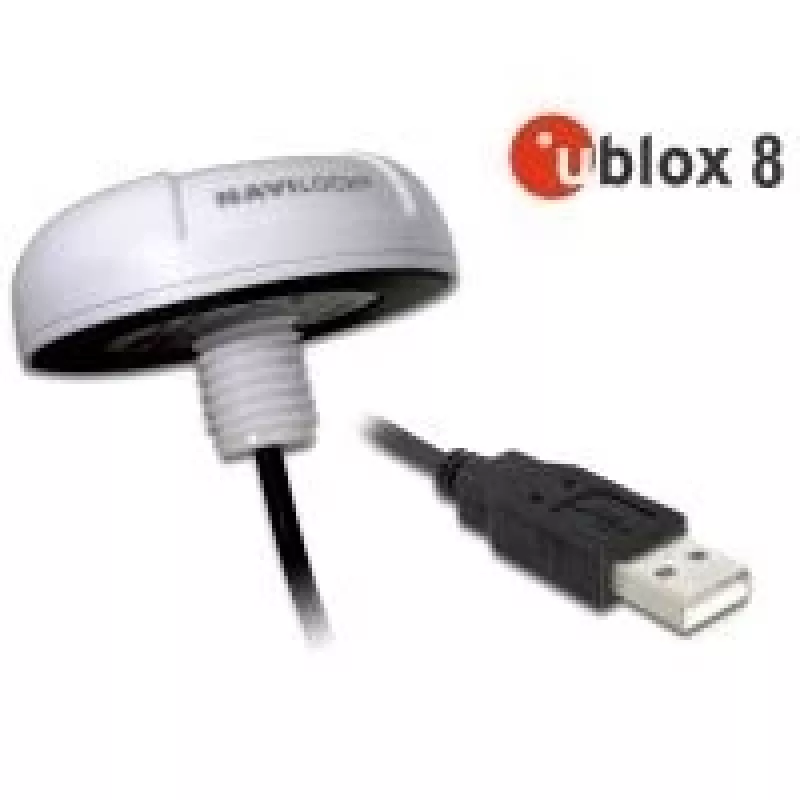

The Navilock NL-8022MU is a compact USB GPS receiver module with a built-in antenna and a u-blox 8 chipset supporting L1 navigation signals (1575.42 MHz). Designed for connection via USB Type-A, the device provides high sensitivity positioning in a low-profile housing sized 62 × 62 × 21 mm. The NL-8022MU is intended for use with notebooks and routing or navigation software and is specifically designed to be mounted on light-coloured surfaces such as boats, campers or buses.

Advantages

The receiver offers high sensitivity due to its integrated antenna and u-blox 8 chipset, plug-and-play connection through a USB Type-A interface, and a discreet, flat housing that blends with white or light vehicle roofs. Its compact dimensions make it suitable for installations where space is limited while delivering stable GNSS reception for navigation tasks.

Suitable for

• Notebook-based navigation with routing software
• Boat positioning where a white or light mounting surface is available
• Camper and bus rooftop installations
• Portable location tracking and mapping applications

Key specifications

• Model: Navilock NL-8022MU (MPN 62532, EAN 4043619625321)
• GNSS chipset: u-blox 8
• Signal: L1 (1575.42 MHz)
• Interface: USB 2.0, Type-A connector
• Integrated antenna for high sensitivity
• Dimensions: 62 × 62 × 21 mm

How to use

Connect the Navilock NL-8022MU to a computer using the USB Type-A connector and install any required drivers or navigation software if not provided by the operating system automatically. Place the receiver on a suitable white or light-coloured surface, for example a boat or vehicle roof, to match the intended design. Launch your routing or mapping application and select the NL-8022MU as the GNSS input device to begin receiving position data.

Recommendations

For best reception, mount the unit with an unobstructed view of the sky and avoid metal obstructions directly above the receiver. Verify that your navigation software is configured to use the USB GNSS device and keep drivers up to date for optimal performance.
