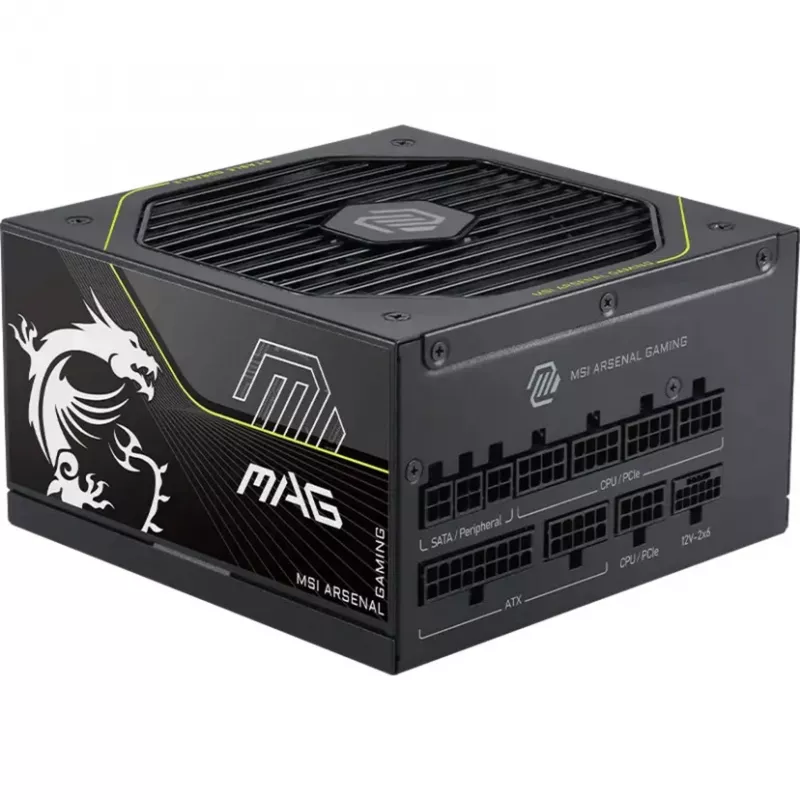

MSI MAG A1200PLS PCIE5 1200W 80 PLUS Gold Fully Modular ATX Fuente de alimentación

The MSI MAG A1200PLS PCIE5 is a high-performance power supply designed for demanding gaming and workstation builds. With 1200W continuous power and 80 PLUS Gold efficiency, it delivers reliable, energy-saving performance. Fully modular cabling simplifies installation and improves airflow, while the 135mm fluid dynamic bearing fan ensures quiet and durable cooling. Equipped with a native 12VHPWR connector for PCIe 5.0 graphics cards, it supports the latest GPUs up to 600W. 100% Japanese 105°C capacitors and comprehensive protection (OCP, OVP, OPP, OTP, SCP, UVP) guarantee stability and longevity.

Advantages

This power supply offers exceptional build quality and future-proof connectivity. The fully modular design reduces cable clutter, making case management easier and improving thermal performance. The 80 PLUS Gold certification means lower electricity bills and less heat output. With 8 PCIe 6+2-pin connectors and 12 SATA connectors, it can handle multi-GPU setups and extensive storage arrays. The 100,000-hour MTBF and Japanese capacitors ensure years of trouble-free operation.

Suitable for

• High-end gaming PCs with PCIe 5.0 graphics cards
• Workstations for content creation, rendering, or AI
• Multi-GPU configurations (up to 4-way)
• Enthusiasts seeking quiet, efficient, and reliable power

Key specifications

• Total Power: 1200 W
• Efficiency: 80 PLUS Gold
• Form Factor: ATX
• Modularity: Fully Modular
• Fan Diameter: 135 mm
• Fan Bearing: Fluid Dynamic Bearing (FDB)
• PCIe 5.0 Connector: 1x 12VHPWR (16-pin, 600W)
• ATX 24-Pin Connectors: 1
• EPS 4+4-Pin Connectors: 2
• PCIe 6+2-Pin Connectors: 8
• SATA Power Connectors: 12
• Peripheral (Molex) Connectors: 4
• Input Voltage: 100-240 Vac
• Input Frequency: 50-60 Hz
• Protection Features: OCP, OVP, OPP, OTP, SCP, UVP
• MTBF: 100,000 hours
• Capacitor Type: 100% Japanese 105°C

Recommendations

For a top-tier build with the latest graphics cards, the MSI MAG A1200PLS PCIE5 provides ample power and cutting-edge connectivity. Its fully modular design and high-quality components make it a reliable choice for enthusiasts and professionals alike.
