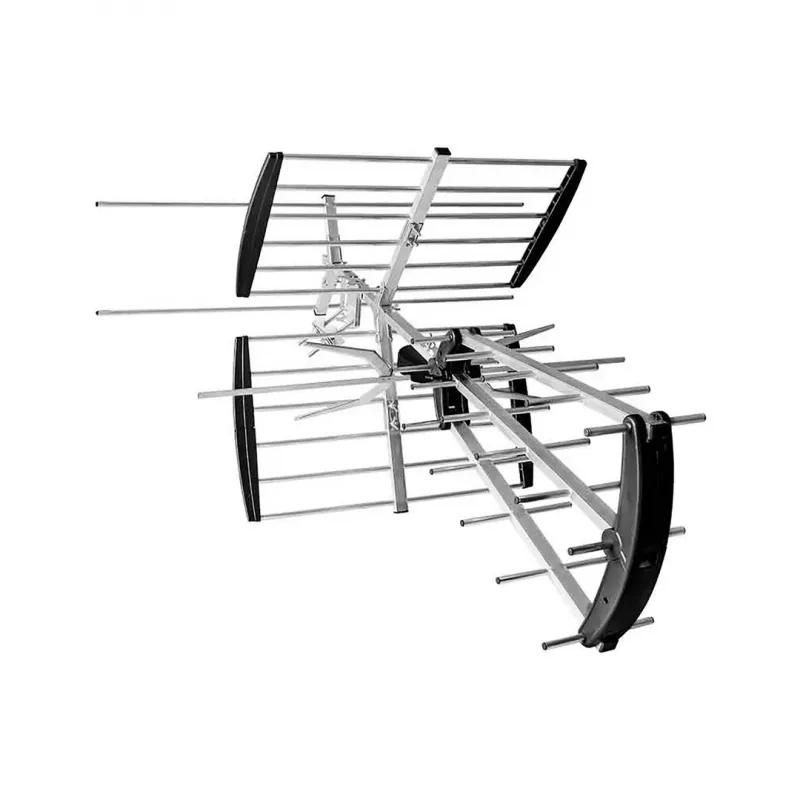

Antena direccional para exterior DVB-T / DVB-T2 DPM HN63NWZ con filtro LTE, 32 elementos, amplificador integrado

For viewers in fringe reception areas, the DPM HN63NWZ stands apart through its high-gain directional array and integrated LTE rejection. Where ordinary indoor aerials struggle with weak signals or interference from nearby mobile towers, this outdoor unit combines 32 active elements with a low-noise amplifier to lock onto distant transmitters. The built-in 700 MHz filter prevents 4G/5G signals from degrading your TV picture, making it a reliable choice for DVB-T and DVB-T2 broadcasts.

Highlights

• High-gain directional design with 32 elements for maximum signal capture
• Built-in amplifier with up to 32 dBi gain and low noise figure (< 3 dB)
• Integrated LTE/4G filter blocks 700 MHz band interference
• Weather-resistant aluminum and UV-stable plastic construction for outdoor mounting
• Includes mast clamp for easy installation
• 75 Ohm F-type connector for standard coaxial cable

In daily use

Mount the antenna on a mast or wall bracket, aim it toward the nearest transmitter, and connect the coaxial cable to your TV or set-top box. The amplifier is powered via the coaxial cable (5-12V DC), so no separate power line is needed—just enable the antenna power option on your receiver or use an optional power inserter. The directional pattern reduces multipath interference and improves signal-to-noise ratio, delivering stable reception even in challenging environments. The LTE filter ensures that nearby mobile signals do not cause pixelation or channel loss.

Full specifications

• Type: Directional outdoor antenna
• Compatibility: DVB-T, DVB-T2
• Frequency range: 470 - 694 MHz
• Number of elements: 32
• Built-in amplifier: Yes
• Max gain (with amplifier): Up to 32 dBi
• LTE/4G filter: Yes (700 MHz band)
• Output impedance: 75 Ohm
• Connector type: F-type
• Amplifier power supply: 5-12V DC via coaxial cable
• Noise figure: < 3 dB
• Polarization: Horizontal (mountable for vertical)
• Material: Aluminum, UV-resistant plastic
• Mounting: Mast clamp (included)
• Weather resistance: Outdoor rated

Final note

The DPM HN63NWZ is a robust solution for anyone needing reliable digital terrestrial TV reception in weak signal areas, with the added benefit of LTE filtering to future-proof your setup against mobile interference.
