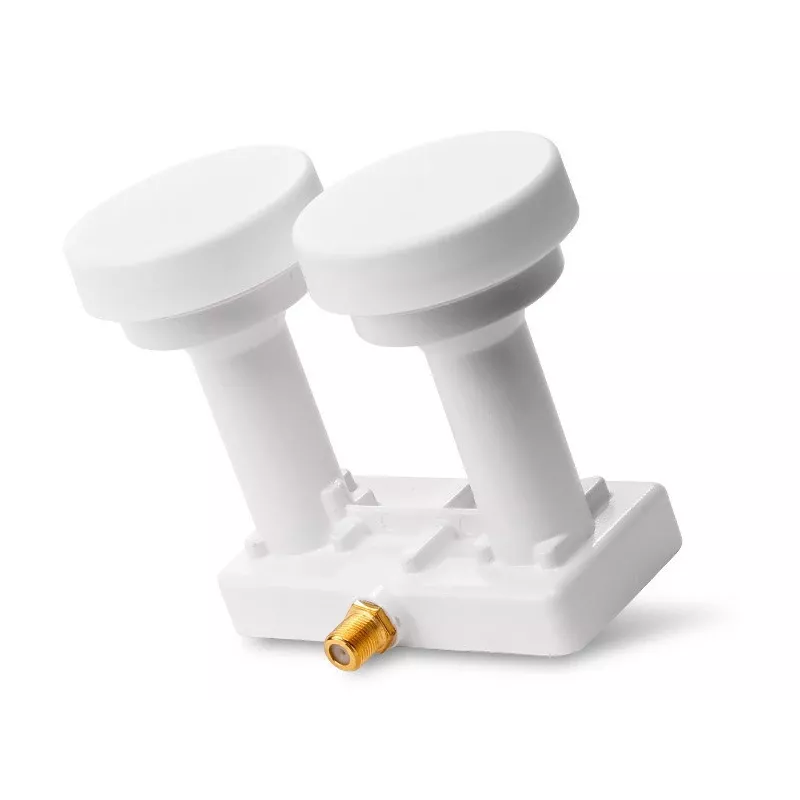

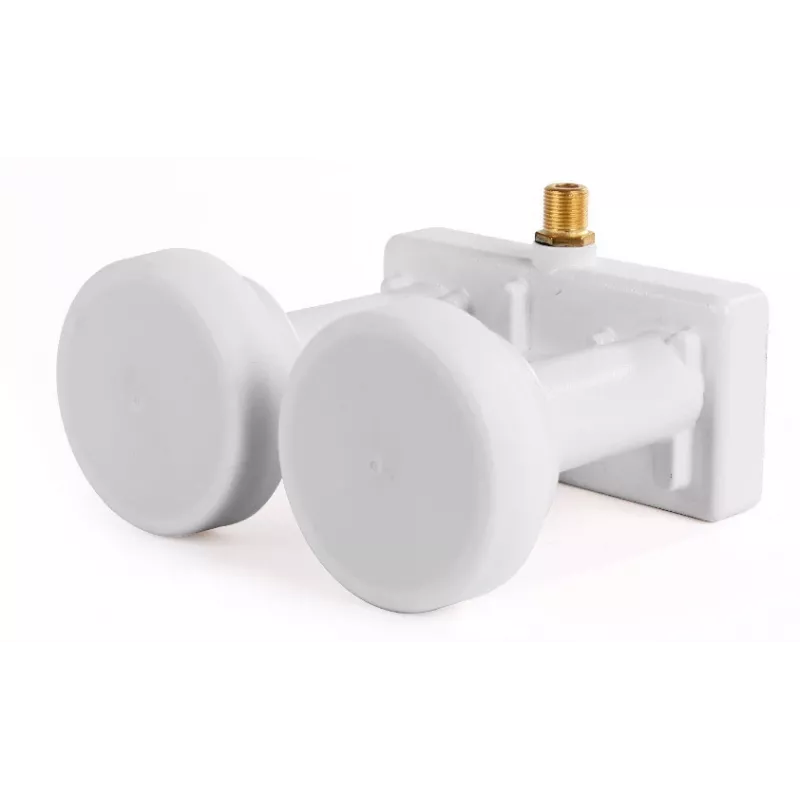

OPTICUM Monoblock Quad LNB LMP-04H 4 salidas 6° de separación

The OPTICUM Monoblock Quad LNB LMP-04H is a high-performance satellite LNB designed for receiving signals from two satellites spaced 6° apart, such as Hot Bird 13°E and Astra 19.2°E. With four independent outputs, it supports up to four satellite receivers simultaneously, making it ideal for multi-room installations.

Advantages

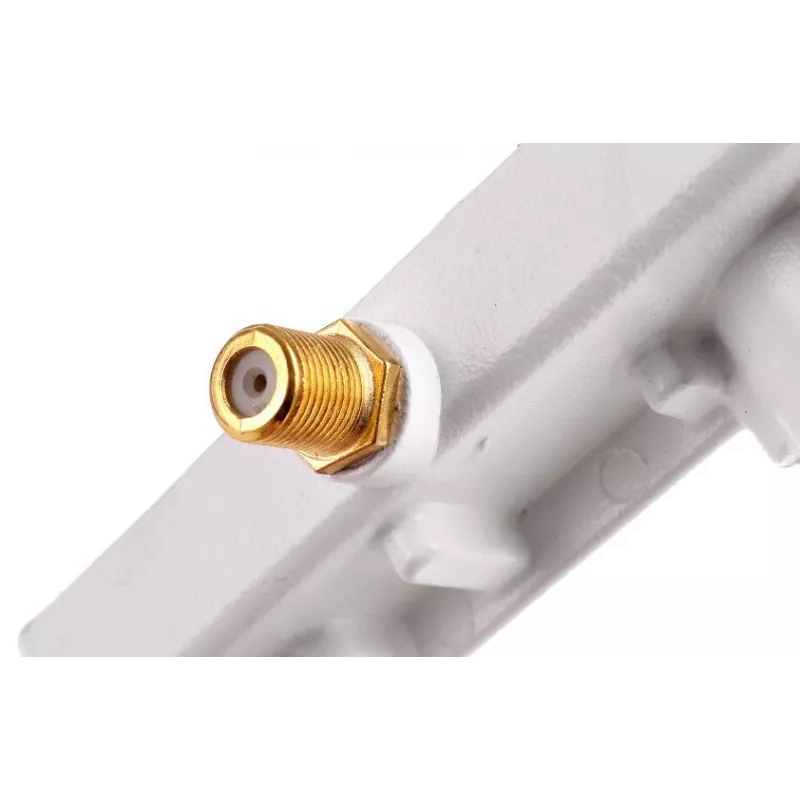

This LNB offers a low noise figure of 0.1 dB for excellent signal quality, built-in DiSEqC 1.0 for automatic satellite switching, and a weather-protected design with retractable F-connector covers for durability. Its compact monoblock design simplifies installation and reduces cable clutter.

Suitable for

• Multi-room satellite TV systems requiring up to 4 receivers
• Installations using Hot Bird 13°E and Astra 19.2°E satellites
• DVB-S and DVB-S2 digital satellite reception

Key specifications

• LNB Type: Monoblock Quad
• Number of Outputs: 4
• Satellite Spacing: 6°
• Noise Figure: 0.1 dB
• Input Frequency Range: 10.7 - 12.75 GHz
• Output Frequency Range: 950 - 2150 MHz
• Low Band LO Frequency: 9.75 GHz
• High Band LO Frequency: 10.6 GHz
• Conversion Gain: 55 - 65 dB
• Feed Diameter: 40 mm
• DiSEqC Support: DiSEqC 1.0
• Polarization: Linear (Vertical/Horizontal)
• Cross Polarization Isolation: >20 dB
• Image Rejection: >40 dB
• Power Consumption: 120 mA max
• Operating Voltage: 11.5 - 19 V DC
• Connector Type: F-Type
• Weather Protection: Yes, retractable cover
• Compatibility: DVB-S / DVB-S2

Recommendations

For optimal performance, use high-quality coaxial cables and ensure proper alignment of the dish. This LNB is a reliable choice for expanding your satellite TV system to multiple rooms.
