Panel de parcheo EFB Elektronik 37737.12

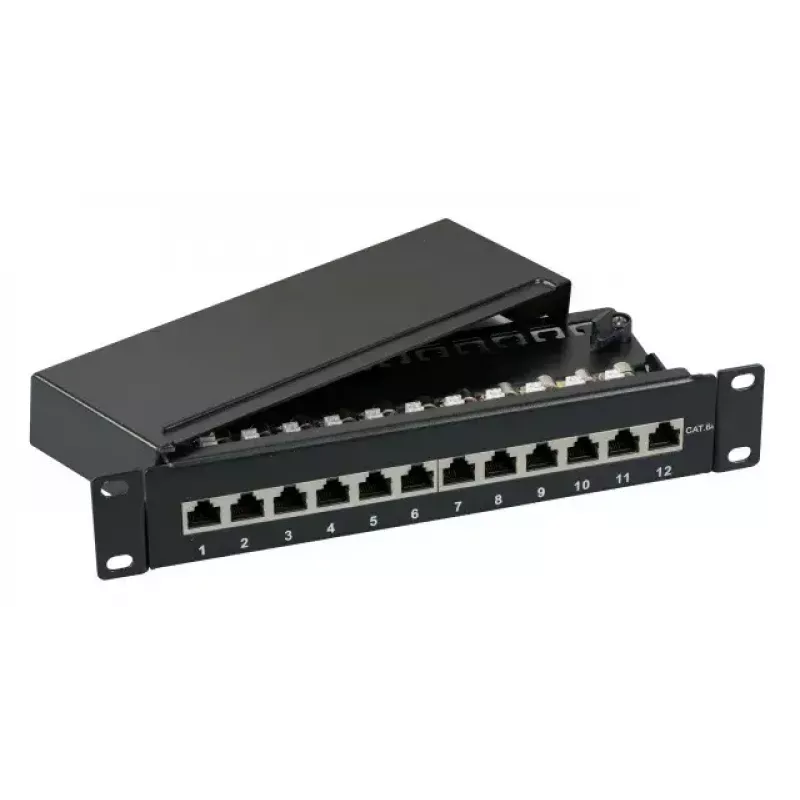

The EFB Elektronik 37737.12 patch panel is a 1U, rack-mounted network component designed for structured cabling in server rooms and network cabinets. It supports Cat6a cabling and is rated for data transfer speeds up to 10000 Mbit/s. The panel provides 12 ports and accepts AWG 22/24 wire sizes, combining compact 1U form factor with professional grey styling to fit standard 19-inch racks and organized patching environments.

Advantages

This patch panel offers a compact 1U footprint that conserves rack space while delivering Cat6a performance suitable for high-speed networks. With 12 ports it simplifies cable management and front-facing access for patching and troubleshooting. The compatibility with AWG 22/24 ensures reliable terminations for typical copper Ethernet installations. Its grey finish provides a neutral appearance that integrates into most server rooms and telecommunication closets.

Suitable for

• Small to medium rack installations requiring Cat6a performance
• Patch rooms and server cabinets where a 1U solution is preferred
• Environments using AWG 22/24 copper Ethernet cabling
• Network upgrades to support up to 10 Gbit/s links

Key specifications

• Form factor: 1U rack-mounted panel
• Port count: 12 front-facing ports
• Cabling standard: Cat6a compatibility
• Maximum data rate: up to 10000 Mbit/s (10 Gbit/s)
• Supported conductor sizes: AWG 22/24
• Colour: Grey

How to use

Mount the panel in a standard 19-inch rack using the provided mounting points and secure it at the desired U position. Terminate individual Cat6a cable pairs to the rear termination points following T568A or T568B wiring schemes, ensuring correct pair alignment and proper punch-down technique for secure contacts. Route and label each cable according to site documentation, then use short patch cords to connect the front ports to switches or other network devices. Verify connections and test each port with a certified cable tester to confirm continuity and performance up to 10 Gbit/s.

Recommendations

For best results, use Cat6a-rated patch cords and maintain proper bend radius and separation from power cabling. Perform certification testing after installation and consider adding cable management accessories to reduce stress on terminations and to keep front and rear cable runs organized.
