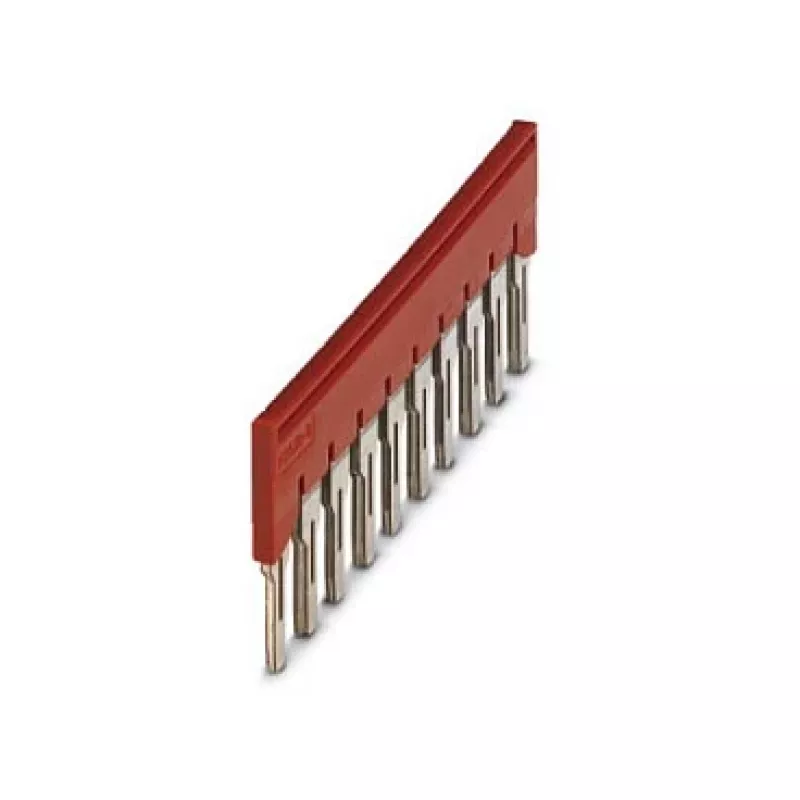

Phoenix 3030323 FBS 10-8 puente de conexión, 10 polos, paso 8,2 mm, rojo

In control cabinets and terminal strip assemblies, bridging multiple terminal blocks individually is time-consuming and prone to wiring errors. The Phoenix 3030323 FBS 10-8 plug-in bridge solves this by linking up to 10 adjacent terminals with a single component, saving installation time and reducing potential faults. Its 8.2 mm pitch matches standard Phoenix terminal blocks, ensuring a secure fit and reliable electrical connection.

Who is it for

This plug-in bridge is ideal for panel builders, machine manufacturers, and electrical installers who need to distribute power or signals across multiple terminals quickly and safely. It suits applications in industrial control, power distribution, and automation where high current ratings and robust insulation are required.

Main features

• 10-position bridge for connecting up to 10 terminal blocks simultaneously
• 8.2 mm pitch compatible with Phoenix terminal blocks of the same spacing
• Rated for 800 V and 41 A, suitable for high-power circuits
• Red polyamide housing, halogen-free and flame-retardant (UL 94 V0)
• Copper contacts with tin plating for low contact resistance and corrosion resistance
• Wide operating temperature range from -60 °C to 105 °C
• Complies with IEC 60947-7-1, UL 1059, and CSA C22.2 No. 158

Specifications

• Product type: Plug-in bridge
• Number of positions: 10
• Pitch: 8.2 mm
• Colour: Red
• Insulating material: PA (Polyamide)
• Contact material: Copper
• Rated voltage (IEC): 800 V
• Rated current (IEC): 41 A
• Rated surge voltage: 6 kV
• Overvoltage category: III
• Pollution degree: 3
• Flammability rating: UL 94 V0
• Operating temperature range: -60 °C to 105 °C
• Mounting type: Plug-in
• Compatibility: For terminal blocks with 8.2 mm pitch
• Standards: IEC 60947-7-1, UL 1059, CSA C22.2 No. 158
• Environmental compliance: RoHS, REACH

Tips

To ensure a reliable connection, verify that your terminal blocks have an 8.2 mm pitch before installation. The bridge is designed for plug-in mounting; simply press it onto the terminals until it clicks into place. For high-vibration environments, consider using additional end brackets or check regularly for secure seating. This bridge is not intended for disconnecting under load; always de-energize the circuit before installation or removal.
