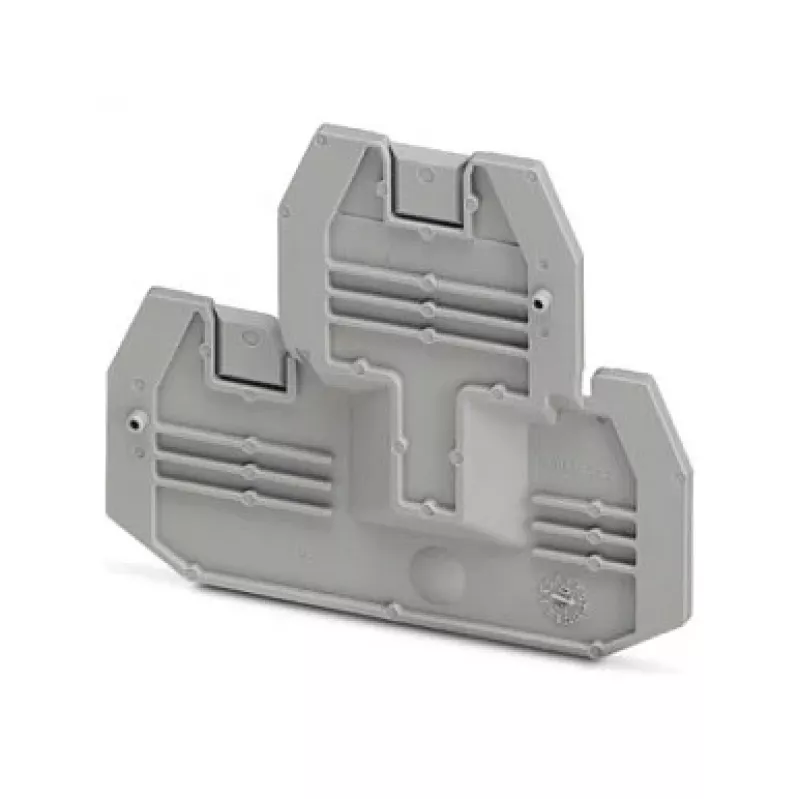

Phoenix Contact D-UTTB 2,5/4 Tapa final (gris) para bornes de doble nivel CLIPLINE Complete

With a flammability rating of UL 94 V0 and an operating range from -60 °C to 105 °C, the Phoenix Contact D-UTTB 2,5/4 end cover delivers uncompromising insulation integrity for double-level terminal blocks in demanding industrial environments.

Overview

This end cover snaps securely onto the open side of UTTB 2,5/4 series terminal blocks, preventing accidental contact and protecting against dust and debris. Its compact 2.2 mm width adds minimal footprint, while the robust polyamide housing ensures long-term durability.

What stands out

• UL 94 V0 flame-retardant polyamide for enhanced fire safety
• Wide temperature tolerance from -60 °C to 105 °C
• Snap-on mounting for quick, tool-free installation
• Compatible with UTTB 2,5/4, UTTB 2,5/4-PV, and UTTB 2,5/4-PV-FU terminal blocks
• REACH and RoHS compliant for global regulatory confidence

Technical details

• Product type: End cover
• Color: Gray
• Material: Polyamide (PA), insulating material group I
• Flammability rating: UL 94 V0
• Operating temperature: -60 °C to 105 °C
• Dimensions (W x H x D): 2.2 mm x 47.5 mm x 65.4 mm
• Mounting: Snap-on
• System: CLIPLINE complete

Our verdict

An essential accessory for safe and reliable terminal block installations, the D-UTTB 2,5/4 end cover combines premium materials with precision engineering to meet the highest standards of electrical insulation.
