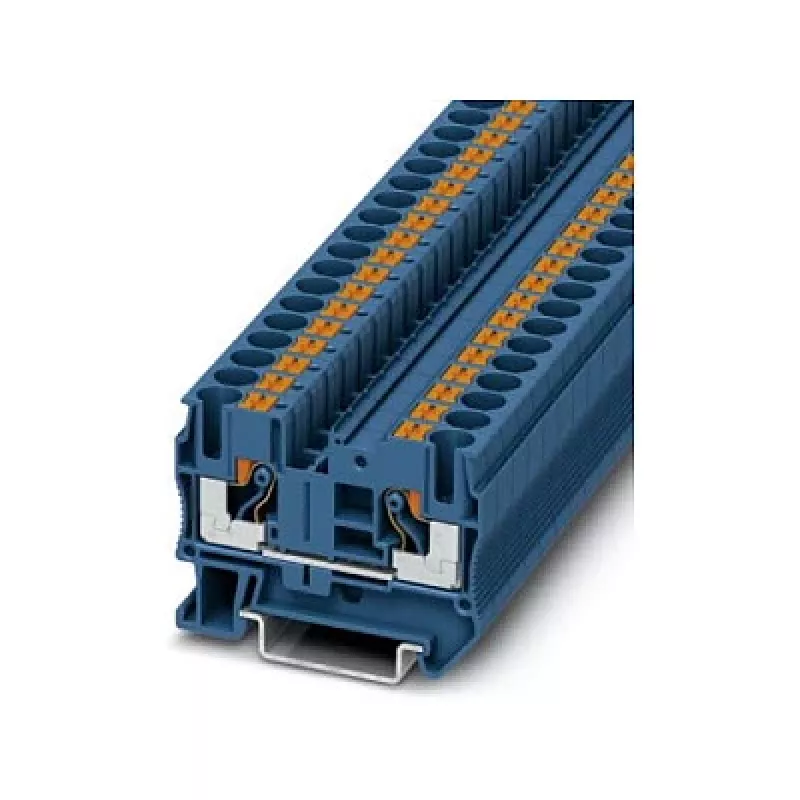

Phoenix Contact PT 6 BU Borne de paso Push-in, Azul, 6 mm², 41 A, 1000 V, carril DIN

The Phoenix Contact PT 6 BU stands out with its tool-free push-in connection technology, allowing solid and stranded conductors to be inserted directly without preparation—saving time during installation compared to screw or spring clamp terminals. Its compact 6 mm² design and blue housing make it ideal for clear circuit identification in control cabinets.

Highlights

• Push-in connection: no tools required for solid conductors or ferruled stranded wires
• High current capacity: 41 A at 1000 V (IEC), suitable for demanding industrial applications
• Wide conductor range: 0.5–10 mm² solid, 0.5–6 mm² stranded
• Robust polyamide housing, UL 94 V0 flammability rated
• Mounts on standard 35 mm DIN rails (NS 35/7.5 and NS 35/15)

In daily use

Electricians and panel builders benefit from the PT 6 BU's quick wiring and secure contact. The blue color provides visual differentiation for neutral or specific circuit functions, while the 10 mm stripping length is easy to achieve with standard tools. With an operating temperature range of -60 °C to 105 °C, it performs reliably in harsh environments.

Full specifications

• Connection technology: Push-in
• Number of positions: 1
• Number of connections: 2
• Nominal cross section: 6 mm²
• Color: Blue
• Rated voltage (IEC): 1000 V
• Rated current (IEC): 41 A
• Rated surge voltage: 8 kV
• Insulating material: PA (Polyamide)
• Flammability rating: UL 94 V0
• Mounting type: DIN rail NS 35/7.5, NS 35/15
• Operating temperature: -60 °C to 105 °C
• Stripping length: 10 mm
• Conductor cross section solid: 0.5–10 mm²
• Conductor cross section stranded: 0.5–6 mm²
• Pollution degree: 3
• Overvoltage category: III
• Standards: IEC 60947-7-1

Final note

The PT 6 BU combines efficiency and safety, making it a dependable choice for modern electrical installations where speed and reliability matter.
