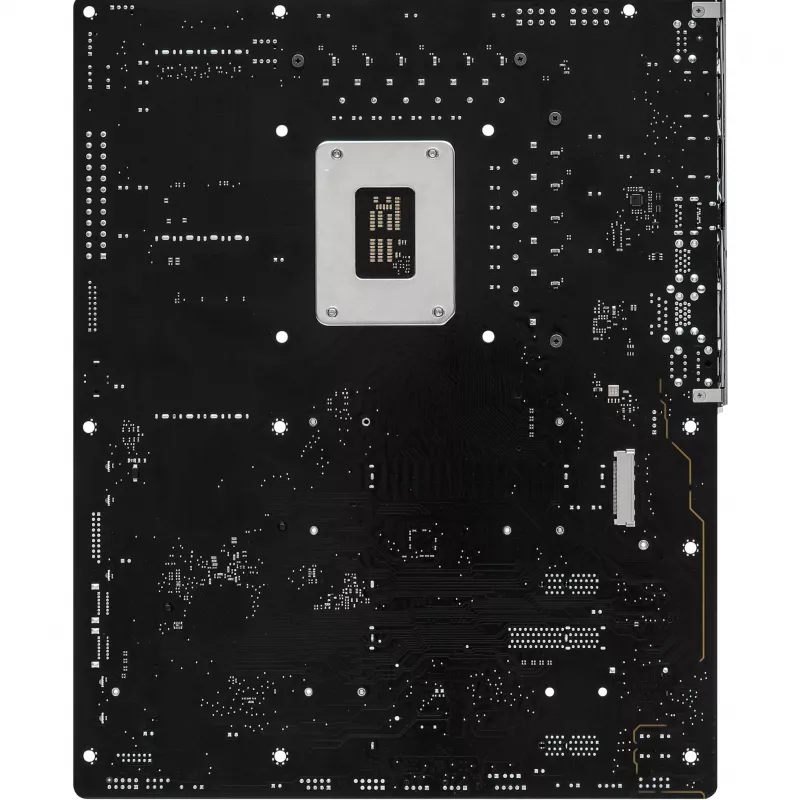

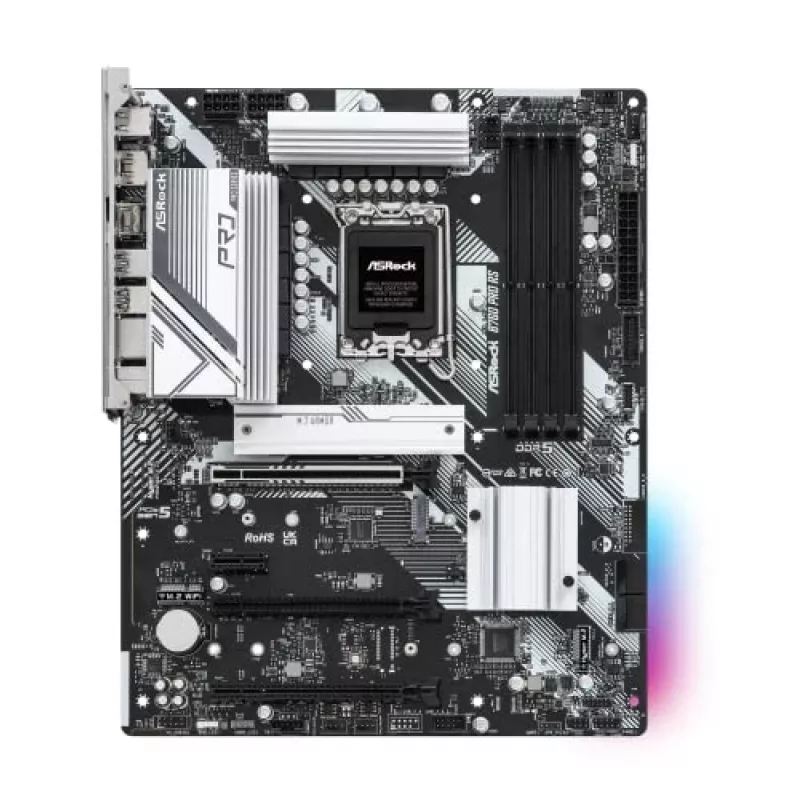

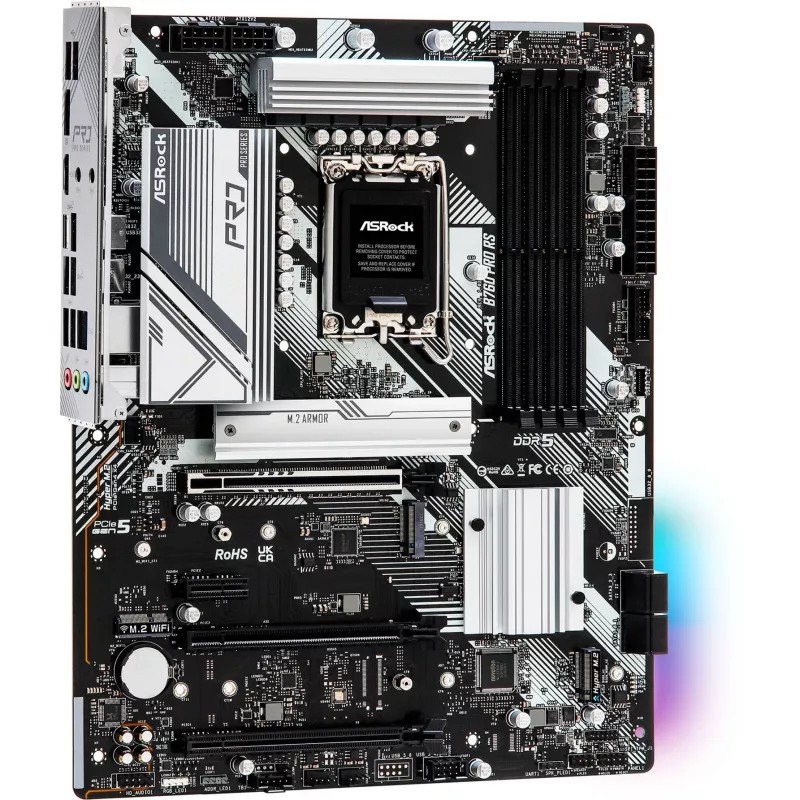

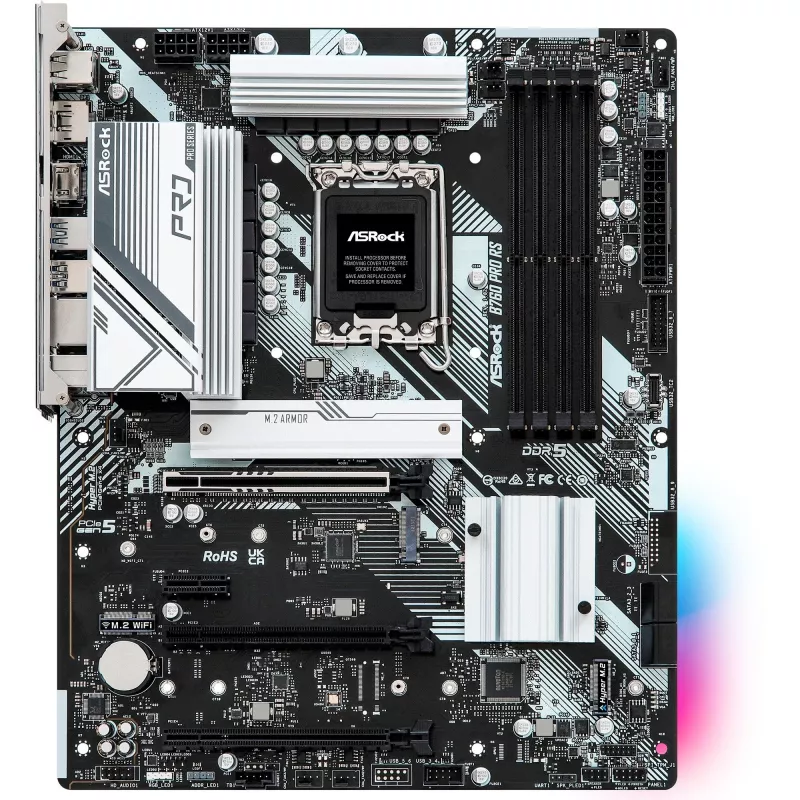

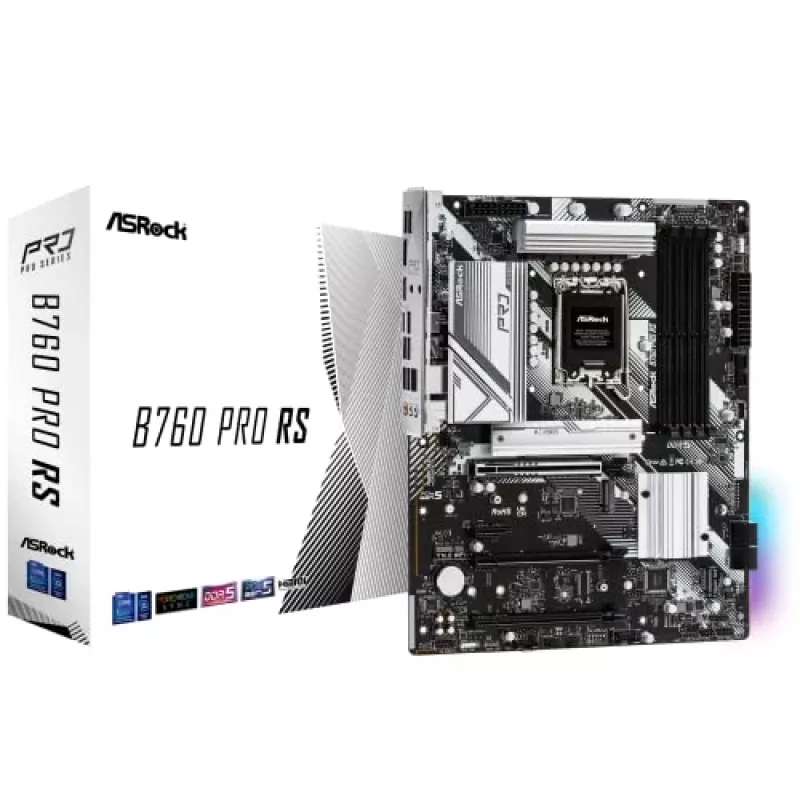

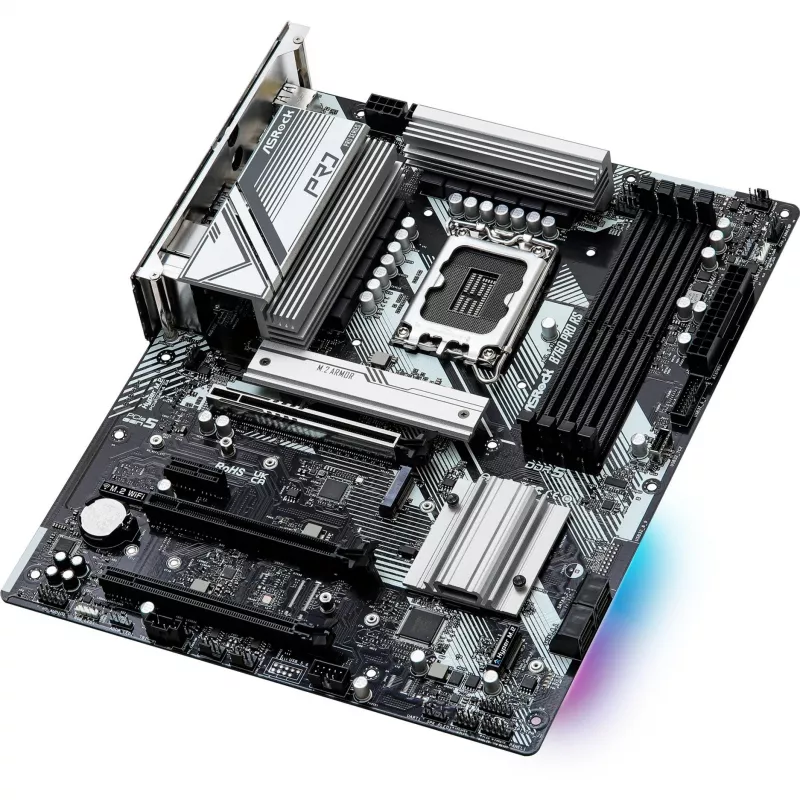

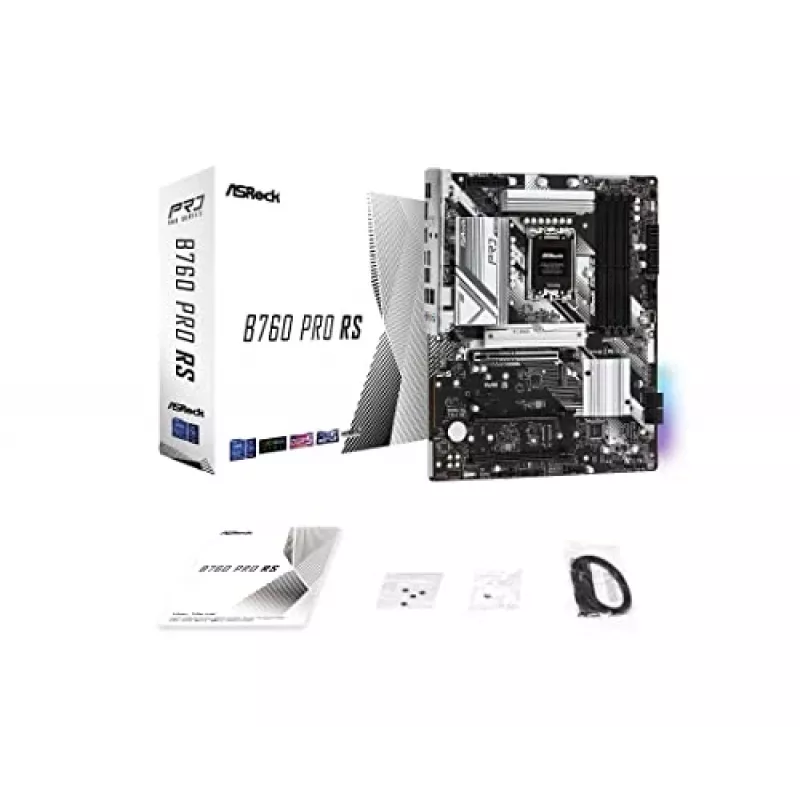

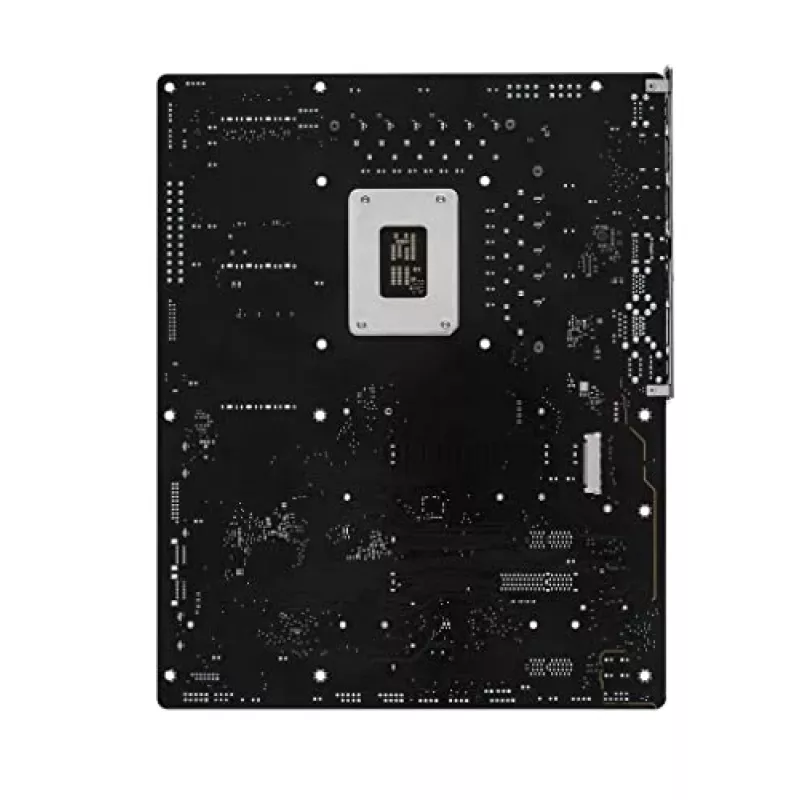

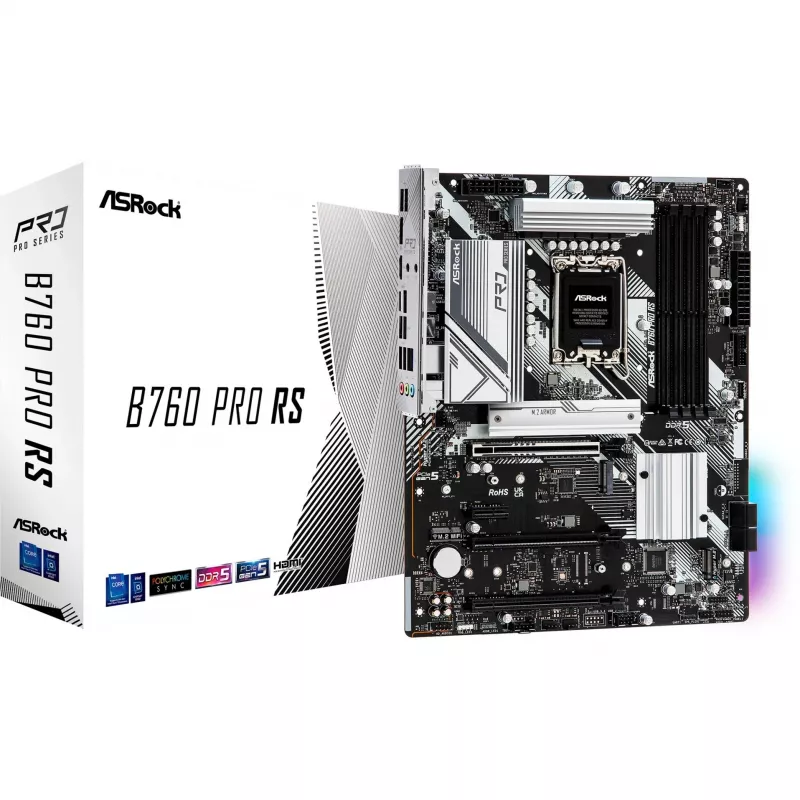

Placa base ASRock B760 Pro RS DDR5 ATX

The ASRock B760 Pro RS DDR5 ATX Motherboard is engineered for Intel 13th and 12th Gen Core processors (LGA1700), delivering robust performance with a 10+1+1 Power Phase design and Dr.MOS for VCore+GT. It supports high-speed DDR5 memory up to 7200MHz (OC) and features a comprehensive connectivity suite, including PCIe 5.0, dual Hyper M.2 slots, and Dragon 2.5G LAN, making it ideal for gaming and productivity builds.

Key features

• Supports Intel 13th and 12th Gen Core processors (LGA1700) with 10+1+1 Power Phase, Dr.MOS for VCore+GT
• 4 x DDR5 DIMM slots, supporting up to 7200MHz (OC) with a maximum capacity of 192GB
• 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, and 1 x PCIe 3.0 x1 slots
• 2 x Hyper M.2 (PCIe Gen4x4) and 1 x M.2 (PCIe Gen4x2) for high-speed storage; 4 x SATA3 ports

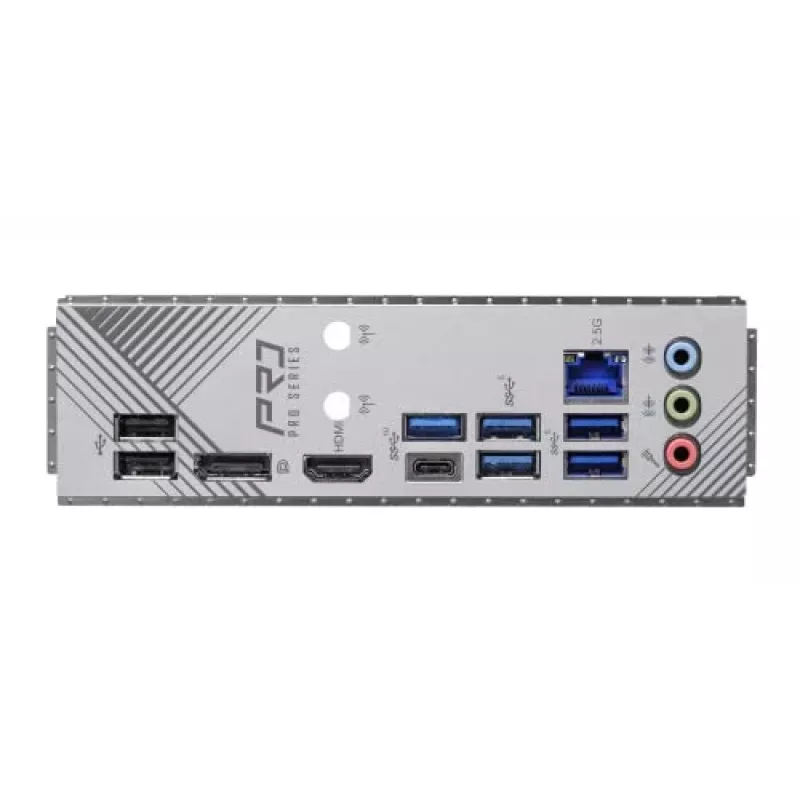

• Rear I/O: 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen2 Type-A, 4 x USB 3.2 Gen1, 2 x USB 2.0; front: 1 x USB 3.2 Gen2 Type-C, 2 x USB 3.2 Gen1, 2 x USB 2.0
• Graphics outputs: HDMI, DisplayPort, and eDP; Realtek ALC897 7.1 CH HD Audio with Nahimic Audio
• Dragon 2.5G LAN (Realtek RTL8125-BG) and M.2 Key E slot for WiFi
