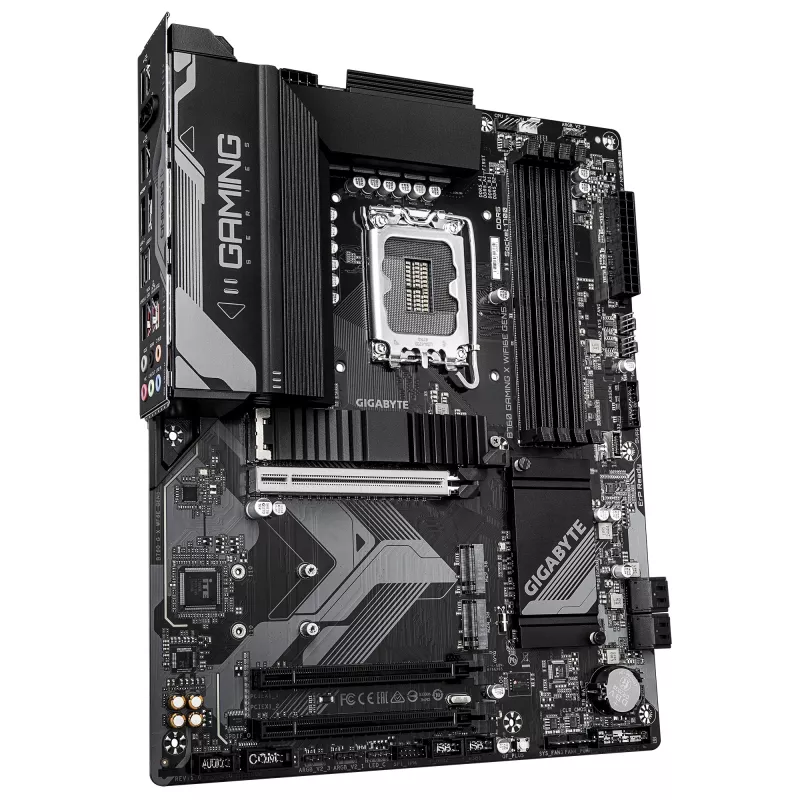

Placa base GIGABYTE B760 GAMING X WIFI6E GEN5, Intel B760, LGA 1700, ATX, DDR5 hasta 256 GB, PCIe 5.0, Wi-Fi 6E, 2,5 Gb LAN

The GIGABYTE B760 GAMING X WIFI6E GEN5 is an ATX motherboard based on the Intel B760 chipset and designed for Intel LGA 1700 processors. It supports 12th, 13th and 14th Gen Intel Core and Intel Celeron series, offers DDR5 memory support across four DIMM slots, onboard Wi‑Fi 6E and Bluetooth with included antenna, multiple USB ports including Type‑C, integrated HDMI and 1Gb Ethernet, and modern storage interfaces such as M.2, PCIe 4.0 and SATA III. The board provides a 4096 x 2304 display output capability and is intended for desktop builds that require expandability and contemporary connectivity.

Advantages

The motherboard combines broad CPU compatibility for Intel 12th–14th Gen processors with DDR5 memory support and four DIMM slots for higher memory capacity and bandwidth. Integrated Wi‑Fi 6E and Bluetooth simplify wireless networking, while a variety of USB ports including USB 3.2 Gen 2 and Type‑C enable fast peripheral connections. Multiple storage interfaces, PCIe 4.0 support and an ATX layout provide flexibility for NVMe drives, add‑in cards and cooling solutions.

Suitable for

• Gaming desktop builds requiring modern connectivity and expansion
• Content creation systems that use DDR5 memory and fast NVMe storage
• Home or office PCs needing onboard Wi‑Fi 6E and Bluetooth
• Upgrading to an LGA 1700 platform with support for 12th–14th Gen Intel CPUs

Key specifications

• Form factor: ATX
• Chipset: Intel B760
• CPU socket: LGA 1700 (supports Intel 12th–14th Gen Core and Intel Celeron series)
• Memory: DDR5‑SDRAM, 4 × DIMM slots
• Integrated networking: Wi‑Fi 6E and Bluetooth (antenna included)
• Ethernet: 1 × RJ‑45 LAN (1 Gb/s)
• Video outputs: 1 × HDMI (up to 4096 × 2304)
• USB: multiple ports including 5 × USB 2.0, 1 × USB 3.2 Gen 1 Type‑A, 1 × USB 3.2 Gen 1 Type‑C, 1 × USB 3.2 Gen 2 Type‑A
• Storage interfaces: M.2, PCIe 4.0, SATA III
• Audio: 7.1 channels
• Weight: 1.61 kg

How to use

Install the motherboard into a compatible ATX case and mount an LGA 1700 CPU following the processor and cooler manufacturer instructions. Populate DDR5 DIMM slots according to the motherboard manual to enable dual‑channel memory operation. Connect M.2 and SATA storage devices as needed and attach power connectors from a suitable PSU. Install drivers and the latest BIOS from the GIGABYTE support site to ensure full functionality of chipset, LAN, Wi‑Fi 6E and Bluetooth features.

Recommendations

For stable operation and best performance, use DDR5 modules from the motherboard's QVL or reputable brands, a quality power supply with appropriate connectors, and update BIOS and drivers after initial assembly. Ensure proper case airflow when installing high‑performance CPUs or multiple add‑in cards.
