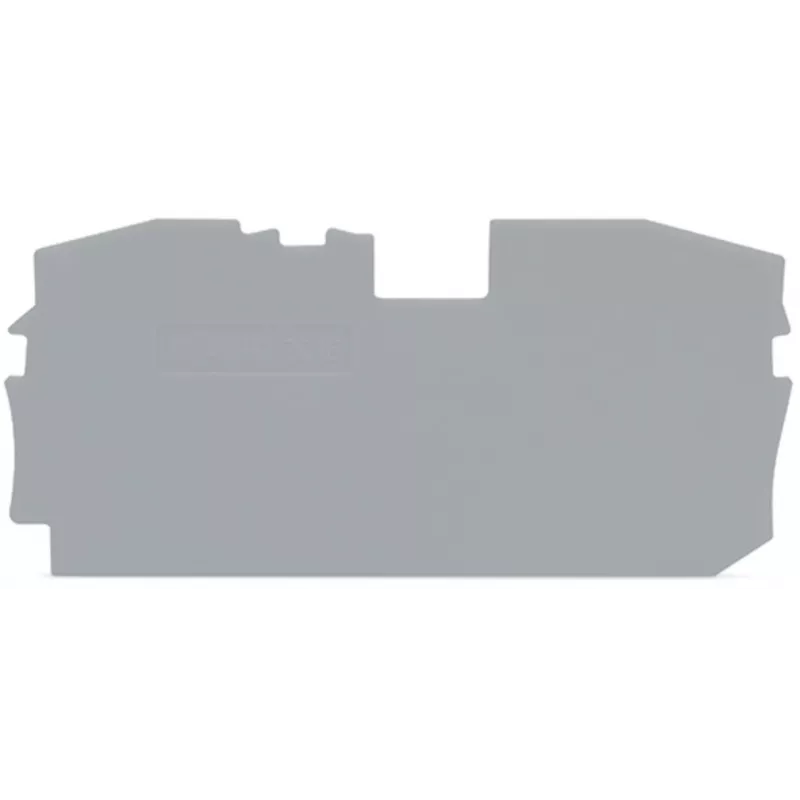

Placa de cierre WAGO 2016-1291 para bornes TOPJOB® S, gris, 1 mm de grosor, 73 x 36,5 mm

The WAGO 2016-1291 is a high-quality end plate designed for use with WAGO TOPJOB® S 2016 Series terminal blocks. This gray polyamide (PA 66) cover plate provides reliable insulation and protection for terminal block assemblies, ensuring safe and organized electrical connections. With a thickness of 1 mm and dimensions of 73 mm height and 36.5 mm depth, it offers a precise fit for secure snap-on mounting.

Advantages

This end plate enhances safety by providing electrical insulation and preventing accidental contact with live components. Its snap-on design allows for quick and tool-free installation, saving time during assembly. The UL 94 V-0 flammability rating ensures high fire resistance, making it suitable for demanding industrial environments. RoHS compliance guarantees environmental friendliness.

Suitable for

• Industrial control panels
• Building automation systems
• Electrical distribution systems
• Any application using WAGO TOPJOB® S 2016 Series terminal blocks

Key specifications

• Product Type: End Plate / Cover Plate
• Compatibility: WAGO TOPJOB® S 2016 Series Terminal Blocks
• Thickness: 1 mm
• Color: Gray
• Material: Polyamide (PA) 66
• Mounting Type: Snap-on / Push-in
• Height: 73 mm
• Depth: 36.5 mm
• Weight: 2.44 g
• Flammability Rating: UL 94 V-0
• Operating Temperature: -35 °C to +105 °C
• Storage Temperature: -35 °C to +105 °C
• Environmental Compliance: RoHS Compliant

Recommendations

For optimal performance and safety, always use genuine WAGO accessories with compatible terminal blocks. This end plate is an essential component for maintaining insulation integrity in your electrical installations.
