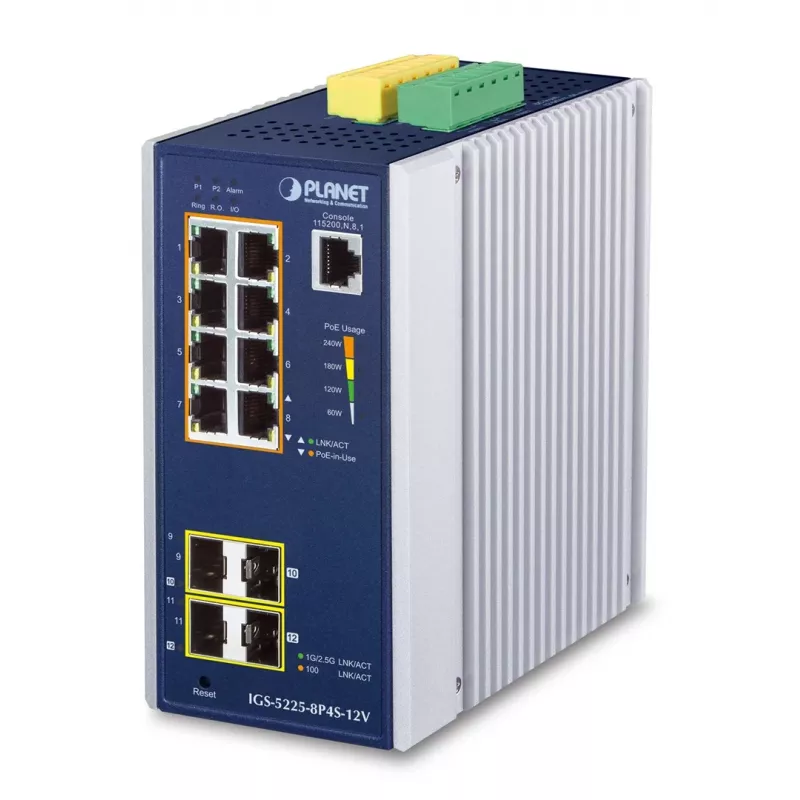

PLANET switch industrial Gigabit Ethernet 8 puertos GE PoE+ 2x 1G SFP + 2x 2.5G SFP Managed L2+, aluminio, azul

The PLANET IGS-5225-8P4S-12V is a rugged industrial managed L2+ Gigabit Ethernet switch designed for demanding environments. It features 8 10/100/1000BASE-T PoE+ ports and 4 SFP slots (2x 1G, 2x 2.5G), providing high-speed connectivity and power delivery for IP cameras, wireless access points, and other PoE devices. With a total PoE budget of up to 480W and support for IEEE 802.3af/at, this switch ensures reliable power to connected devices. Its fanless, IP30-rated aluminum housing allows operation in temperatures from -40 to 75°C, making it ideal for outdoor or industrial installations.

Advantages

Robust industrial design with dual redundant DC power inputs ensures maximum uptime. The switch offers advanced Layer 2+ management features including VLAN, QoS, IGMP snooping, and static routing, providing flexibility and security for network segmentation. The combination of Gigabit copper and multi-gigabit SFP ports allows for flexible uplink options and future-proofing.

Suitable for

• Industrial automation networks
• Surveillance systems with PoE cameras
• Smart city infrastructure
• Transportation and utility networks
• Outdoor wireless access point deployments

Key specifications

• 8x 10/100/1000BASE-T PoE+ ports (IEEE 802.3af/at, up to 36W per port)
• 2x 100/1000/2.5GBASE-X SFP slots
• Switching capacity: 20 Gbps non-blocking
• MAC address table: 16K entries
• Jumbo frame support: 10K bytes
• Management: Web, CLI, SNMP, Telnet
• Layer 2 features: VLAN (802.1Q, Q-in-Q), STP, LACP, IGMP Snooping, QoS
• Layer 3 features: Static routing (IPv4/IPv6)
• Industrial protection: IP30, fanless, -40 to 75°C operating temperature
• Power input: Dual redundant 48~54V DC
• ESD/EFT protection: 6KV DC
• Alarm for power failure and port link down

Recommendations

For optimal performance, use a 54VDC power supply to achieve the full 480W PoE budget. The switch supports DIN-rail or wall-mount installation; ensure adequate ventilation for passive cooling. Pair with PLANET SFP modules for reliable fiber connectivity.
