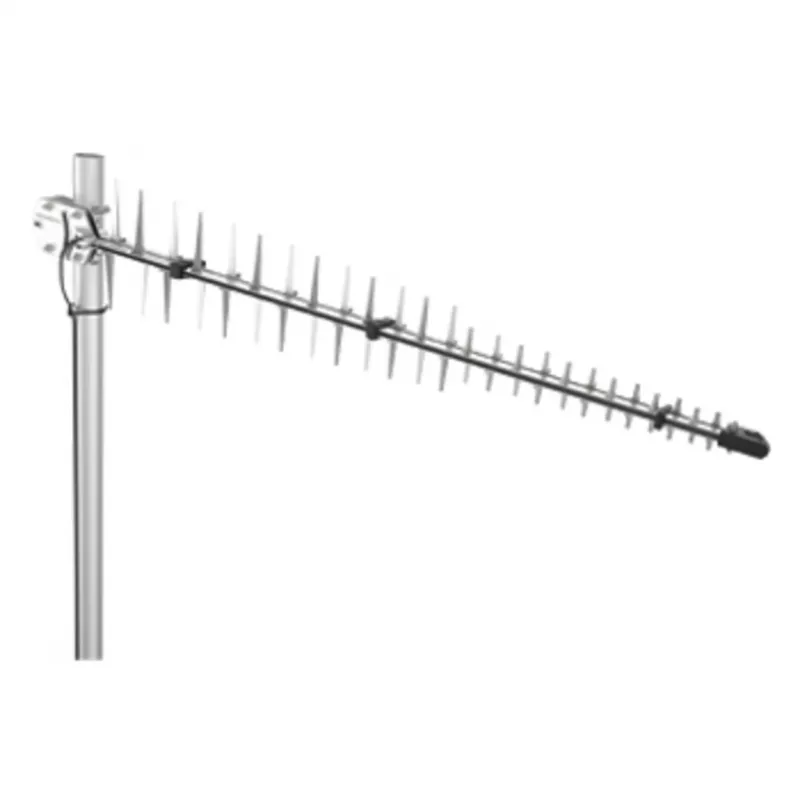

Poynting A-LPDA-0092-04 Antena direccional array dipolo log-periódico, 698-960/1710-2700 MHz, 11 dBi, conector SMA, plata

The Poynting A-LPDA-0092-04 is a high-performance directional log-periodic dipole array (LPDA) antenna designed for LTE, GSM, LoRa, Helium, and IoT applications. With a peak gain of 11 dBi and wide frequency coverage from 698 to 2700 MHz, this antenna ensures reliable connectivity for 4G, 3G, 2G, and emerging IoT networks. Its robust UV-stable ABS housing and IP65 rating make it suitable for outdoor mast mounting, withstanding wind speeds up to 160 km/h.

Advantages

This antenna offers exceptional gain and directivity, improving signal strength and range for cellular and IoT devices. The LPDA design provides consistent performance across multiple frequency bands, making it a versatile solution for multi-network environments. Easy pole mounting with included U-bolt bracket simplifies installation.

Suitable for

• LTE/4G/3G/2G cellular networks
• LoRaWAN and Helium IoT networks
• M2M and industrial IoT applications
• Rural and remote area connectivity
• Signal boosting for weak coverage zones

Key specifications

• Antenna Type: Directional Log-Periodic Dipole Array (LPDA)
• Frequency Range: 698 - 960 MHz / 1710 - 2700 MHz
• Peak Gain: 11 dBi
• VSWR: < 2.0:1
• Polarisation: Linear (Vertical or Horizontal)
• Input Impedance: 50 Ohm
• Connector: SMA Male
• Mounting: Pole/Mast Mount (U-bolt bracket included)
• Housing Material: UV Stable ABS
• Environmental Rating: IP65
• Operating Temperature: -40°C to +70°C
• Wind Survival: Up to 160 km/h (100 mph)
• Colour: Silver

Recommendations

For optimal performance, mount the antenna as high as possible with clear line of sight to the base station. Use high-quality, low-loss coaxial cable (e.g., LMR400) and ensure proper grounding. Compatible with Poynting mounting accessories for versatile installation.
