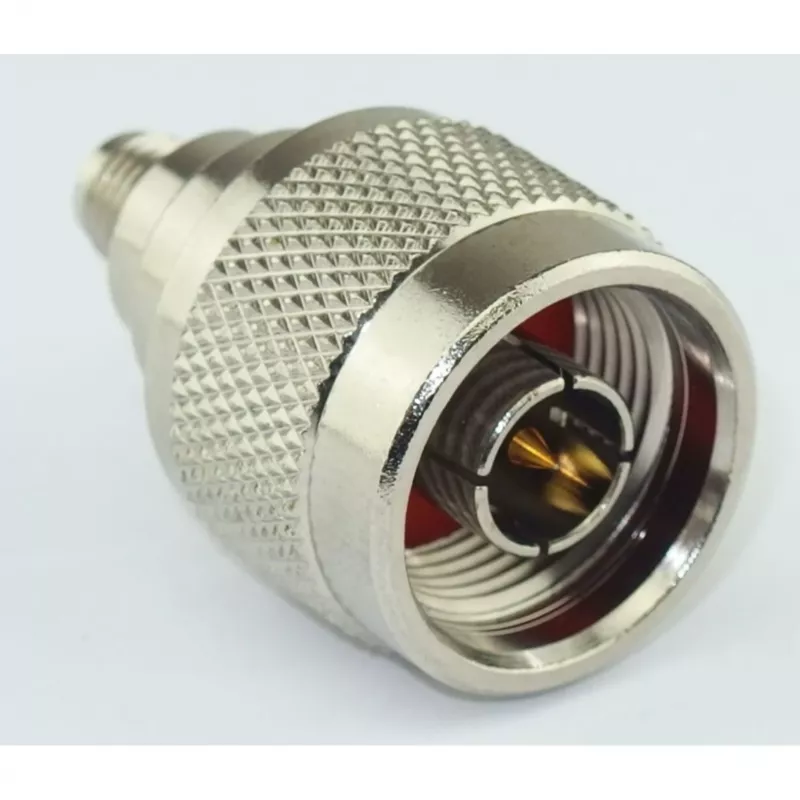

Poynting Adaptador Coaxial RF Conector SMA Hembra a Conector N Macho A-ADPT-041

Poynting Adaptador Coaxial RF Conector SMA Hembra a Conector N Macho A-ADPT-041
Poynting Adaptador Coaxial RF Conector SMA Hembra a Conector N Macho A-ADPT-041
189,07 €
PDF
PDF
Stock 8 Código 3046201 Modelo A-ADPT-041 Garantía 3 años

Envíos y devoluciones

Entrega estimada jueves, 10 de diciembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

The Poynting A-ADPT-041 is a high-quality RF coaxial adapter designed to connect SMA female connectors to N-Type male connectors. Engineered for reliable signal transmission in wireless communication, antenna systems, and RF test equipment, this adapter ensures minimal signal loss and excellent performance across a wide frequency range.

Advantages

This adapter offers robust construction with a brass body, nickel plating, and gold-plated center contact for superior conductivity and corrosion resistance. It supports frequencies up to 6 GHz with a low VSWR of less than 1.2:1, ensuring efficient power transfer and signal integrity. The PTFE insulator provides excellent dielectric properties, making it suitable for demanding environments.

Suitable for

  • Connecting SMA female antennas to N-Type male cables or devices
  • RF test setups requiring a reliable adapter
  • Wireless communication systems, including Wi-Fi, cellular, and IoT applications
  • Extending or adapting antenna connections in professional installations

Key specifications

  • Adapter Type: RF Coaxial Adapter
  • Connector A: SMA Female
  • Connector B: N-Type Male
  • Impedance: 50 Ohm
  • Frequency Range: DC to 6 GHz
  • VSWR: < 1.2:1 (at 6 GHz)
  • Body Material: Brass, Nickel Plated
  • Center Contact: Gold Plated
  • Insulator: PTFE
  • Body Style: Straight
  • Mounting: In-line / Free Hanging
  • Operating Temperature: -40°C to +85°C
  • Dielectric Withstanding Voltage: 1000 V RMS
  • Insulation Resistance: ≥ 5000 MΩ
  • Durability: 500 Mating Cycles

Recommendations

For optimal performance, use with 50 Ohm cables and connectors. Ensure proper torque when mating to avoid damage. Suitable for indoor and outdoor applications when protected from moisture.

Especificaciones

Especificaciones
Altura del embalaje
10 mm
Ancho del embalaje
30 mm
Cables incluidos
No
Carga rápida
No
Categoría
Adaptador RF
Certificación
RoHS
Color del producto
Silver
Conectividad USB
No
Contenido del embalaje
1 adaptador
EAN
6009710921845
Marca
Poynting
Modelo
A-ADPT-041
MPN
A-ADPT-041
Periodo de garantía
2 años
Peso
0.025 kg
Profundidad del embalaje
10 mm
Puerto USB
No
Tecnología de conectividad
Con cable
Temperatura de almacenamiento (T-T)
-40°C to +85°C
Temperatura de funcionamiento (T-T)
-40°C to +85°C
Tipo de producto
Adaptador coaxial RF
