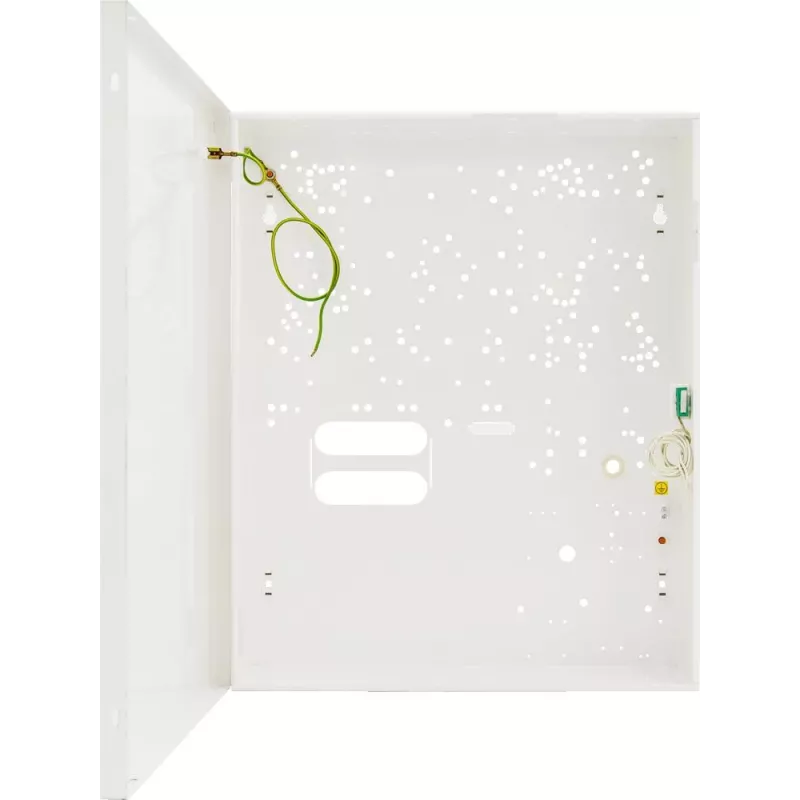

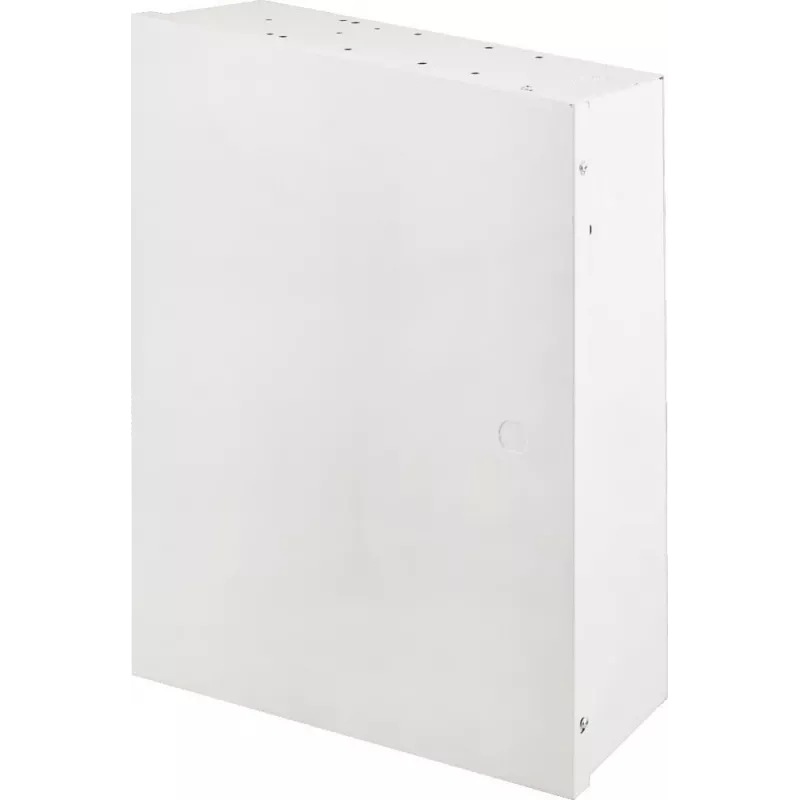

Pulsar AWO200PU Carcasa metálica universal, Negra, acero 0,8 mm, IP20, montaje en pared, cerradura con llave

The Pulsar AWO200PU is a robust universal metal enclosure designed for housing alarm control panels, access control systems, CCTV components, and other electronic modules. Manufactured from 0.8 mm thick steel sheet with a black powder-coated finish (RAL 9005), this surface-mount wall enclosure offers reliable protection and tamper security for indoor installations.

Advantages

Durable steel construction with powder coating ensures long-lasting performance. The enclosure features a tamper-protected NC microswitch, key lock with two keys, and ventilation for heat dissipation. It accommodates batteries up to 17Ah/12V or two 7Ah/12V batteries, as well as transformers like the Pulsar TRP series. Multiple cable entries (top, bottom, rear) simplify wiring.

Suitable for

• Alarm control panels
• Access control systems
• CCTV components
• Universal electronic modules

Key specifications

• Enclosure Type: Universal Metal Enclosure
• Material: Steel Sheet, 0.8 mm thickness
• Colour: Black (RAL 9005)
• Finish: Powder Coated
• Mounting: Surface Mount (Wall)
• IP Rating: IP20
• Tamper Protection: Yes (NC Microswitch)
• Battery Accommodation: Up to 17Ah/12V or 2x 7Ah/12V
• Transformer Accommodation: Yes (e.g., Pulsar TRP series)
• Lock Type: Key Lock (2 keys included)
• Ventilation: Yes
• Cable Entries: Multiple (top, bottom, rear)
• Removable Door: Yes
• Operating Temperature: -10°C to +40°C
• Compatibility: Universal for various alarm/access control modules

Recommendations

For optimal performance, use with Pulsar power supplies and accessories. Ensure proper ventilation and secure wall mounting. Suitable for indoor use only.
