Carcasa de alarma Pulsar AWO224

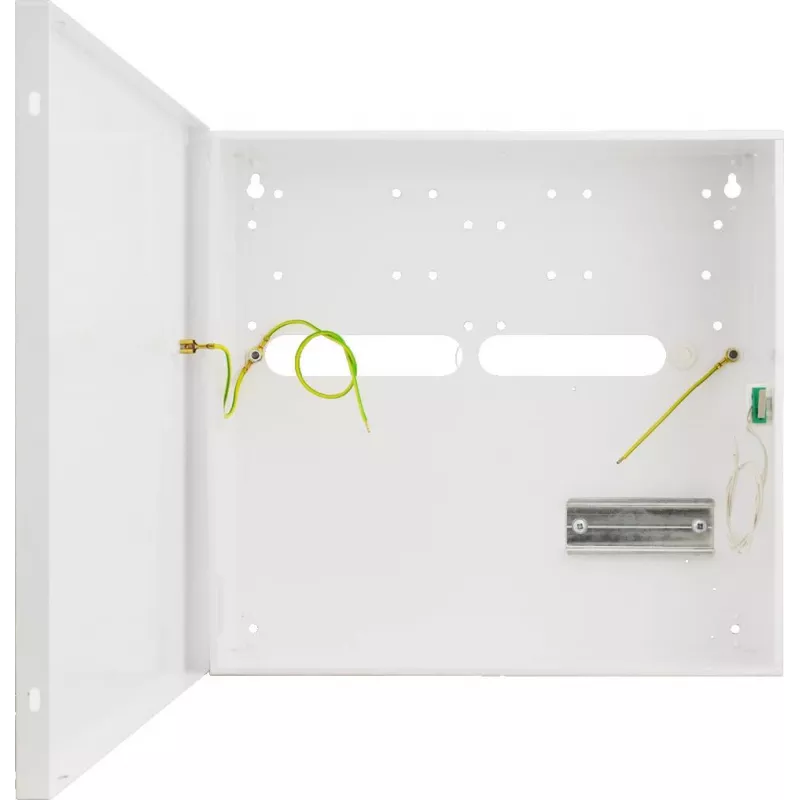

The Pulsar AWO224 Alarm Housing is a robust metal enclosure designed for secure installation of alarm systems, access control, and CCTV equipment. Manufactured from 0.7 mm thick steel sheet DC01 with a white RAL 9003 finish, this surface-mounted housing offers IP20 ingress protection and includes a key lock with two keys. It features knock-out cable entries, ventilation, and an internal mounting plate, supporting batteries up to 17 Ah / 12V. Ideal for professional security applications.

Advantages

Durable steel construction ensures long-lasting protection for sensitive electronics. The key lock and tamper protection (front door opening, wall detachment) enhance security. Ventilation and internal mounting plate simplify installation and maintain optimal operating conditions.

Suitable for

• Alarm systems
• Access control systems
• CCTV installations

Key specifications

• Enclosure Type: Metal Enclosure
• Material: Steel sheet DC01, 0.7 mm thickness
• Colour: White (RAL 9003)
• Ingress Protection: IP20
• Tamper Protection: Front door opening, Wall detachment
• Lock Type: Key lock (2 keys included)
• Mounting: Surface-mounted
• Max Battery Capacity: 17 Ah / 12V
• Operating Temperature: -10°C to +40°C
• Humidity: 10% to 90% RH (non-condensing)
• Compliance: CE, RoHS

Recommendations

For optimal performance, ensure proper ventilation and secure mounting. Suitable for indoor use only.
