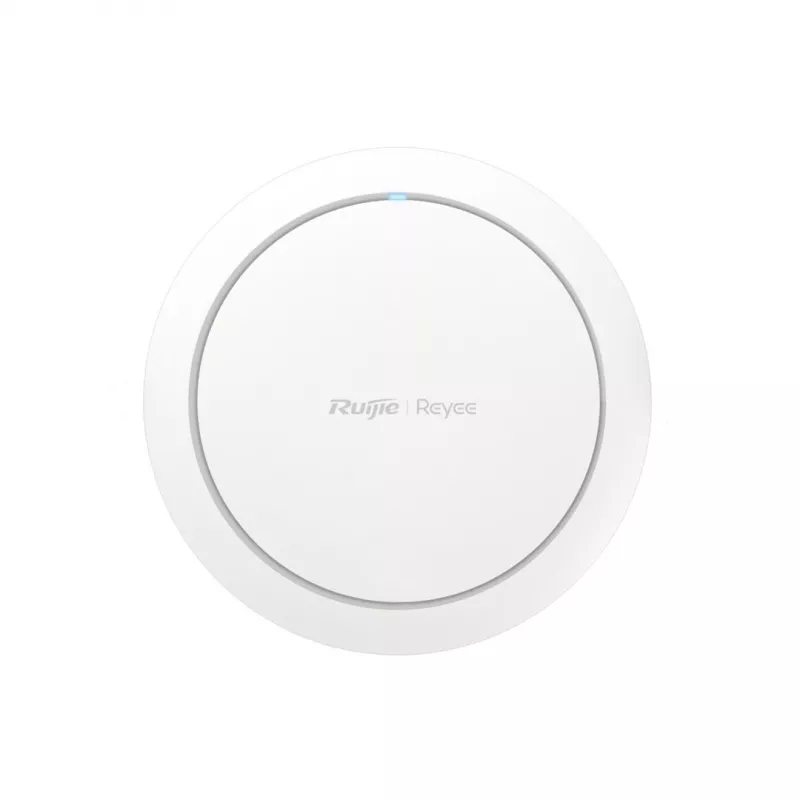

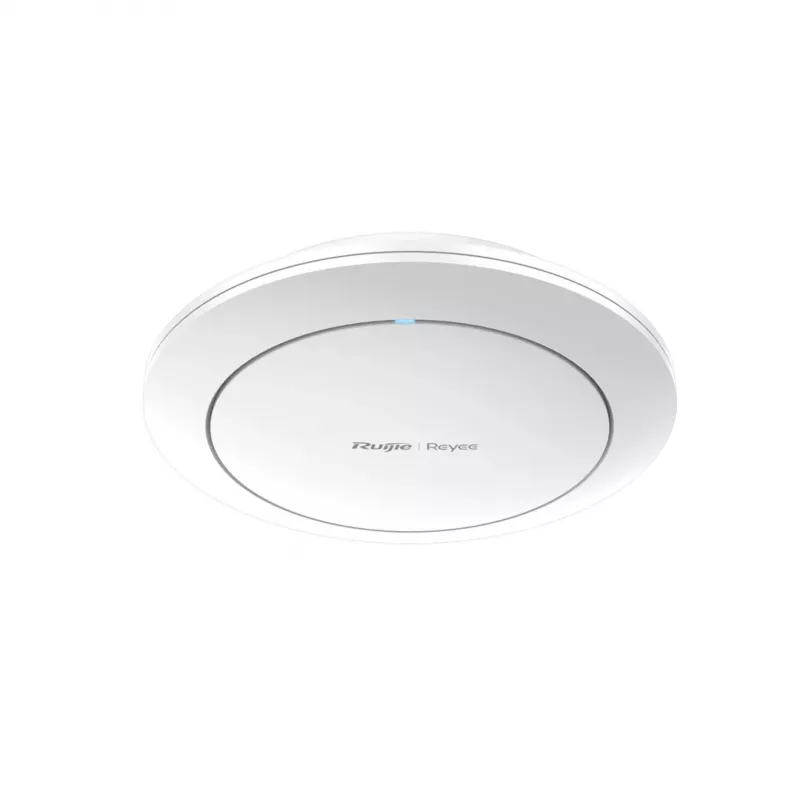

Punto de acceso inalámbrico RUIJIE RG-RAP2266 Wi‑Fi 6, doble banda 2,4/5 GHz, 2976 Mbit/s, 1x GbE, PoE, montaje en techo

The Ruijie Networks RG-RAP2266 is a dual-band Wireless Access Point supporting 2.4 GHz and 5 GHz with Wi‑Fi 6 (802.11ax) capabilities and a combined maximum data rate of up to 2976 Mbit/s. Designed for business and dense environments, the unit includes PoE support for simplified installation and five external antennas in a compact white housing. Security and traffic management are supported through WMM, WPA-PSK and WPA2-PSK standards.

Advantages

Smart AI Roaming implemented with cloud algorithms and 802.11k/v helps devices switch access points seamlessly to reduce lag. Reyee Mesh support makes it simple to extend coverage by adding additional APs without extensive cabling. Cloud features such as free DDNS, portal authentication, remote monitoring, firmware upgrades and APP library updates allow centralized management and easier maintenance.

Suitable for

• Small and medium offices requiring reliable dual-band Wi‑Fi 6 coverage
• Retail and hospitality environments needing guest authentication and cloud monitoring
• Branch sites or meeting rooms where PoE simplifies deployment
• Mesh deployments to extend wireless coverage with minimal cabling

Key specifications

• Frequency bands: 2.4 GHz and 5 GHz (dual-band)
• Wireless standard: IEEE 802.11ax (Wi‑Fi 6) backward compatible with 802.11a/b/g/n/ac
• Maximum data transfer rate: 2976 Mbit/s
• Antennas: 5 external antennas
• Ethernet: 1 × RJ‑45 LAN (10/100/1000 Mbit/s)
• Power: Power over Ethernet (PoE) support; maximum power consumption 18 W
• Security: WMM, WPA-PSK, WPA2-PSK
• Colour: White
• Weight: 0.55 kg

How to use

Mount the RG-RAP2266 in the desired coverage area and connect it to your network switch or PoE injector using the RJ‑45 port. Use the cloud portal or local setup tools to configure SSIDs, security settings (WPA/WPA2), and mesh parameters. Enable Smart AI Roaming and Reyee Mesh in the management interface to allow automatic client handover and add additional APs for extended coverage. Perform firmware updates via the cloud portal when available.

Recommendations

For optimal roaming and mesh performance, place APs with overlapping coverage but avoid excessive signal interference. Use PoE-capable switches for clean installation and enable cloud monitoring to track device status and apply timely firmware updates.
