Punto de acceso TP-Link Omada AX6000 Wi-Fi 6 2,4 GHz 5 GHz

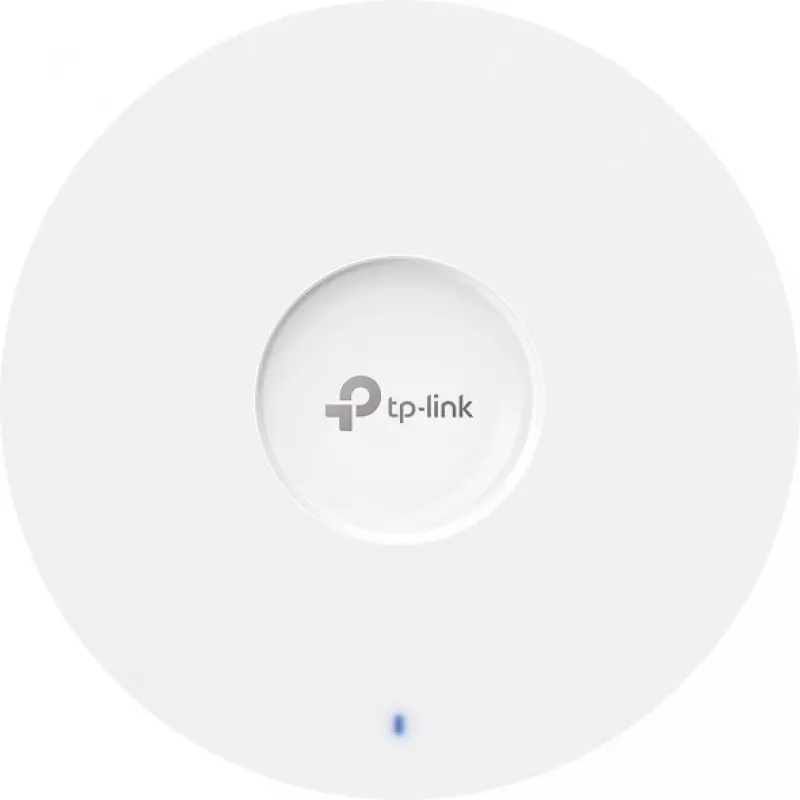

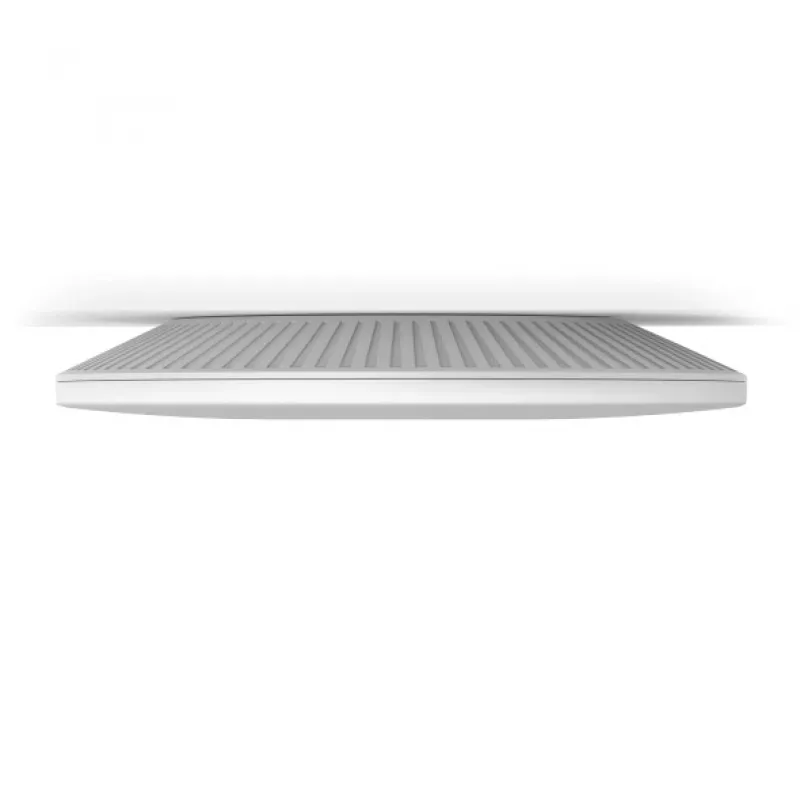

The TP-Link Omada AX6000 Wi-Fi 6 2.4GHz 5GHz Access Point (model EAP683 UR, EAN 8885020621938) is a ceiling-mount wireless access point designed for environments that require high-capacity, dual-band connectivity. It supports Wi‑Fi 6 (IEEE 802.11ax) alongside legacy standards and delivers a combined maximum data rate of up to 6000 Mbit/s across the 2.4 GHz and 5 GHz bands. The unit provides a single RJ-45 Ethernet port with multi-rate support including 10/100/1000/2500 Mbit/s and supports Power over Ethernet (PoE) for flexible installation. Security-related protocols such as HTTPS, SNMP and SSH are supported to help maintain protected management and monitoring.

Advantages

The access point offers Wi‑Fi 6 performance with backward compatibility to earlier IEEE 802.11 standards, enabling higher throughput and improved efficiency in dense client environments. A single high-speed Ethernet LAN port with 2.5 Gbps capability allows faster wired uplinks where available, and PoE support simplifies ceiling installation without separate power cabling. Built-in support for secure management protocols (HTTPS, SNMP, SSH) assists with centralized administration and monitoring.

Suitable for

• Office environments requiring dual-band high-throughput wireless coverage
• Educational facilities and classrooms with many concurrent devices
• Retail spaces and public areas that need ceiling-mounted access points
• Small to medium business networks that use centralized management

Key specifications

• Model: TP-Link Omada EAP683 UR (MPN: EAP683 UR, EAN: 8885020621938)
• Wireless standards: IEEE 802.11ax (Wi‑Fi 6), 802.11ac, 802.11a/b/g/n
• Frequency bands: 2.4 GHz and 5 GHz (dual-band)
• Maximum data transfer rate: 6000 Mbit/s (combined)

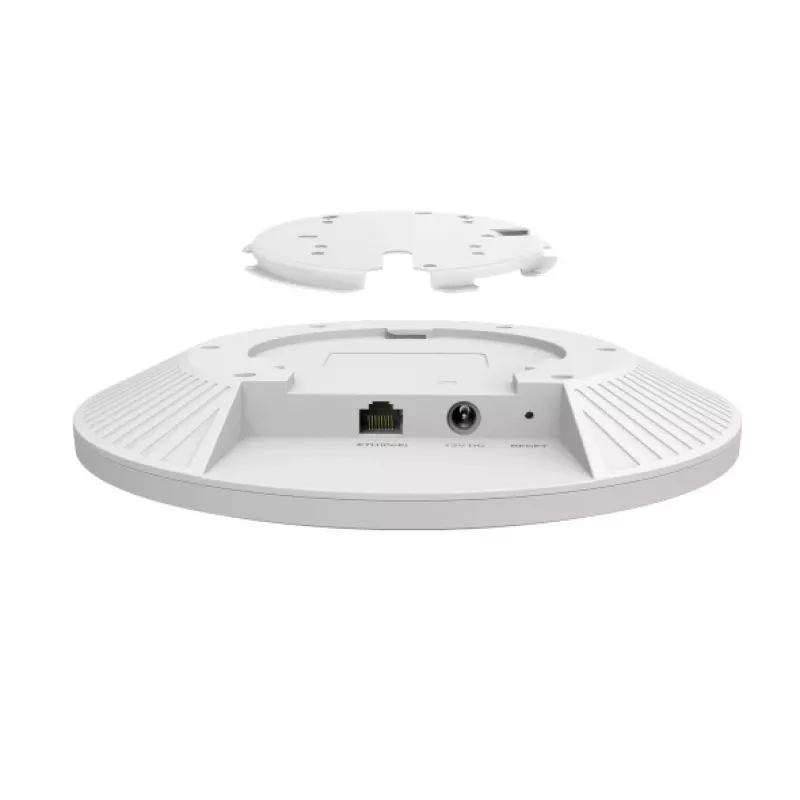

• Ethernet LAN (RJ-45) ports: 1 (10/100/1000/2500 Mbit/s)
• Power: Power over Ethernet (PoE) support
• Product colour: White

How to use

Mount the access point on a compatible ceiling surface following site-planning guidelines for coverage and minimal interference. Connect the RJ-45 port to a PoE-capable switch or injector that supplies required power and link speed (10/100/1000/2500 Mbit/s). Configure wireless SSIDs, security settings and management access through the chosen management interface (standalone web UI or Omada centralized controller), ensuring HTTPS, SNMP or SSH settings are enabled as appropriate for secure administration. Position the device centrally relative to client devices for optimal coverage and throughput.

Recommendations

For best performance in high-density deployments, enable Wi‑Fi 6 features and channel planning on the 5 GHz band, ensure the uplink supports 2.5 Gbit/s where required, and use centralized Omada management to monitor load, firmware updates and security settings.
