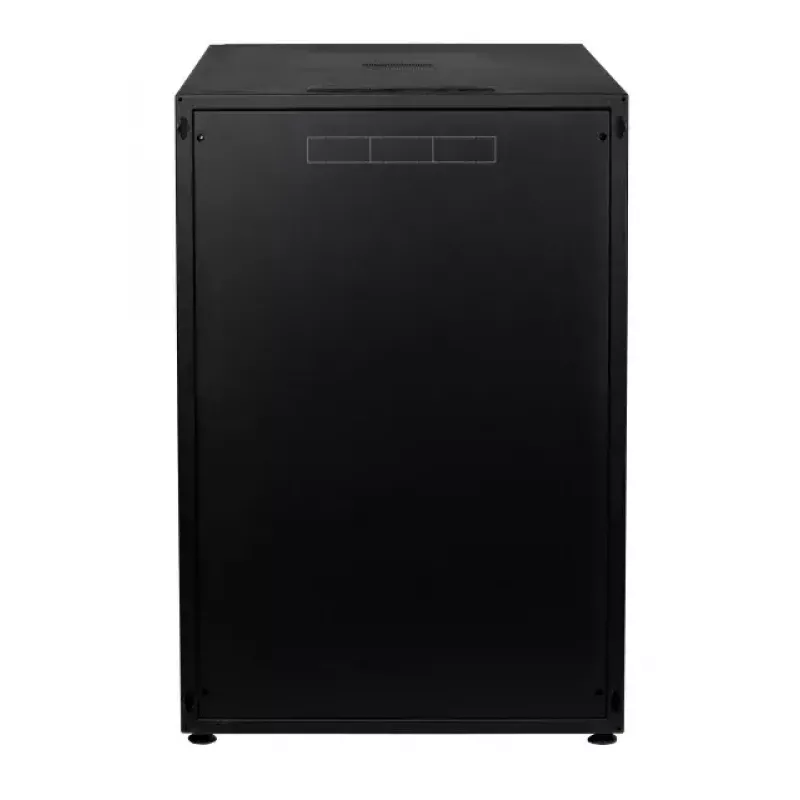

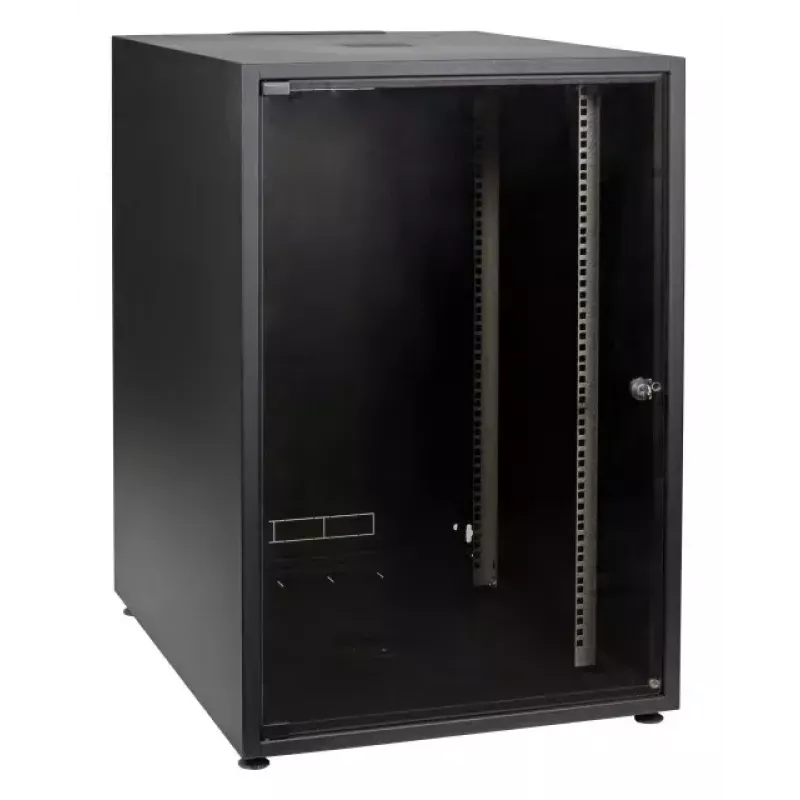

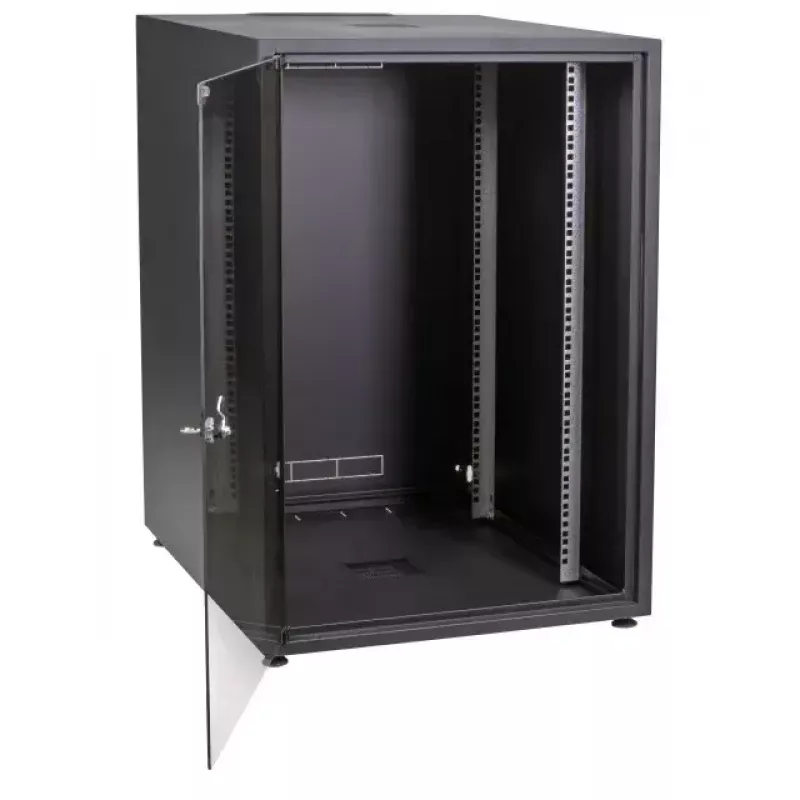

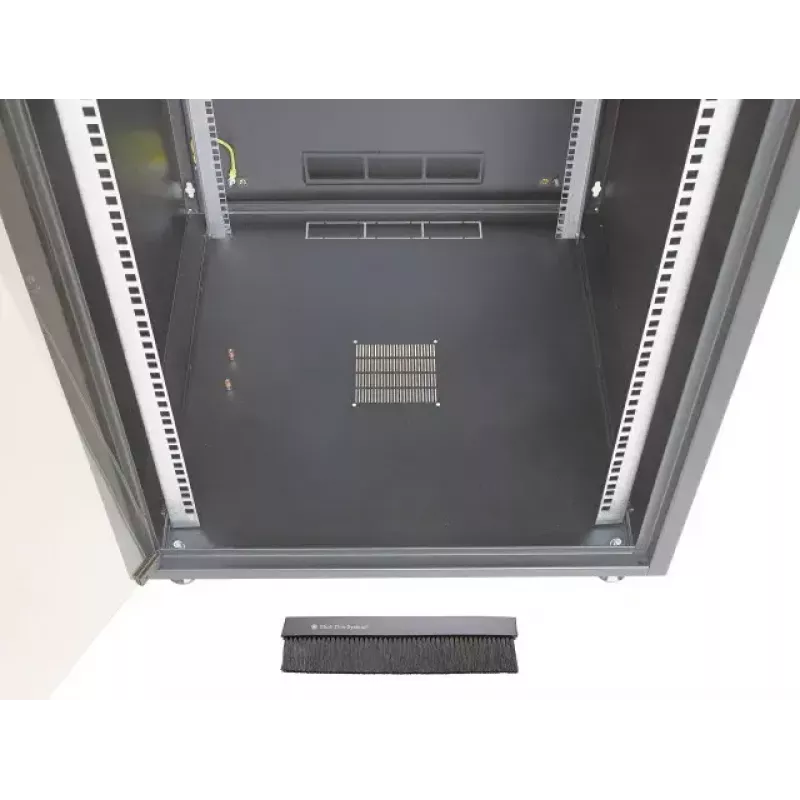

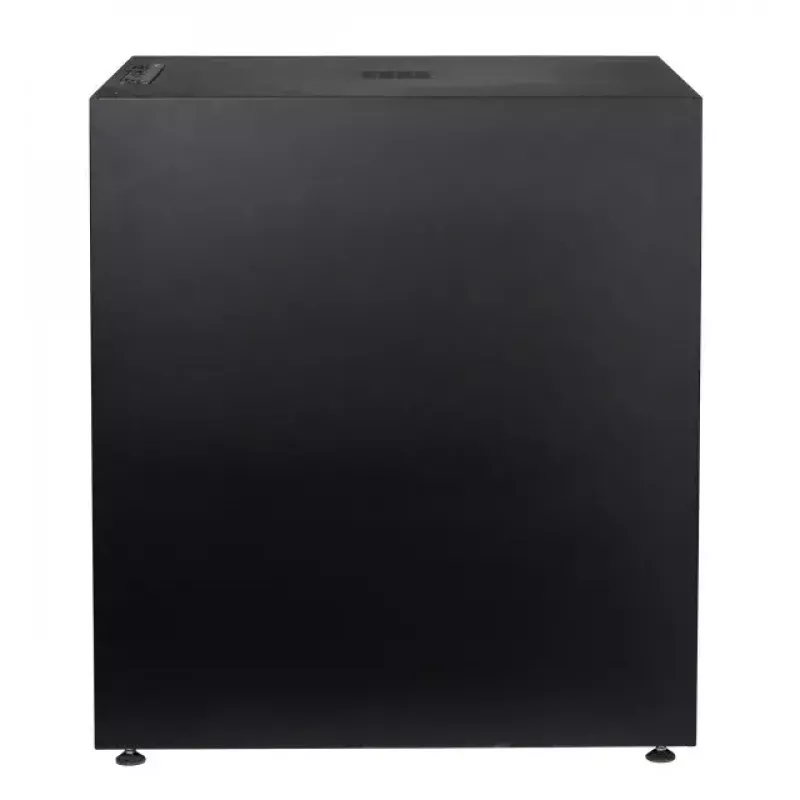

Rack independiente EFB Elektronik OFF-1266TS.V1RW

The EFB Elektronik OFF-1266TS.V1RW freestanding rack is a compact 12U cabinet designed for organized indoor equipment storage. Its 600 mm width and 600 mm depth provide a stable footprint while the 604 mm overall height keeps the unit suitable for small server rooms, network closets and office environments. With an IP20 protection rating and a maximum load capacity of 30 kg, the cabinet is intended for standard electronic and networking devices in dry, controlled indoor locations. The black finish offers a neutral look that integrates into professional and technical spaces.

Advantages

The cabinet combines a small footprint with a 12U rack capacity, allowing installation of patch panels, switches and other 19-inch compatible devices where space is limited. Its 600 × 600 mm footprint balances accessibility and stability, while the IP20 rating indicates protection against solid objects above 12 mm, appropriate for typical indoor installations. The unit’s 30 kg load limit and sturdy construction support light- to medium-weight equipment, and the black colour helps conceal marks and fits standard IT aesthetics.

Suitable for

• Small server rooms and telecom cupboards
• Office network cabinets for switches, routers and patch panels
• IT closets in retail or branch locations
• Laboratories and workshops with indoor equipment racks

Key specifications

• Rack capacity: 12U
• Width: 600 mm
• Depth: 600 mm
• Height: 604 mm
• Maximum load capacity: 30 kg
• Protection rating: IP20 (indoor use)
• Colour: Black

How to use

Place the cabinet on a flat, level floor in a dry indoor environment and ensure sufficient clearance for ventilation and cable access. Install 19-inch compatible equipment into the 12U mounting space using appropriate rails and mounting hardware; observe the cabinet’s maximum load capacity and distribute weight evenly. Route power and data cabling through the cabinet openings or cable management accessories, and keep ventilation paths unobstructed. For safety, secure heavy items at lower rack positions and verify that the cabinet is stable after equipment installation.

Recommendations

Use the rack in indoor, climate-controlled locations and avoid exposure to moisture or dust beyond normal indoor conditions. Regularly inspect mounting hardware and cable routing, and do not exceed the 30 kg maximum load to maintain structural integrity and safe operation.
