Rack independiente EFB Elektronik OFF-1868GR.V1RW

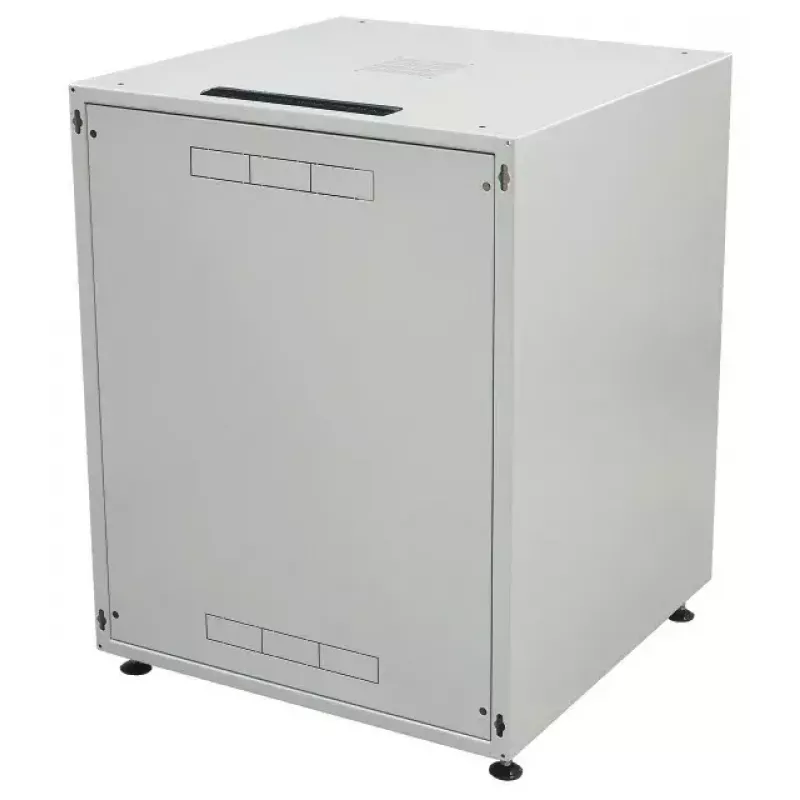

Freestanding 19" rack cabinet EFB Elektronik OFF-1868GR.V1RW designed for mounting network and electronic equipment. The steel sheet housing is self-supporting and delivered completely pre-assembled with self-ventilation. Inside the cabinet are four galvanised 19" profiles (two front and two rear), with step-less depth adjustment. The cabinet includes a single full-glass front door (4 mm thick) with a 1-point key lock; the door stop can be fitted left or right. Bottom and rear panels have pre-punched openings for cable entry. The cabinet has a grey finish, IP20 protection and a maximum load capacity of 38 kg.

Advantages

The steel self-supporting construction provides stable support for mounted equipment while the pre-assembled design reduces installation time. Galvanised, depth-adjustable 19" profiles allow flexible positioning of devices. The full-glass front door permits visual inspection without opening and the key lock offers basic physical security. Pre-punched cable entry points simplify cable routing.

Suitable for

• Mounting 19" network switches, patch panels and small servers
• Home or small office network installations
• Environments requiring a compact freestanding rack with visual access

Key specifications

• Model: EFB Elektronik OFF-1868GR.V1RW
• Size: 19"
• Height: 871 mm (15U)
• Width: 600 mm
• Depth: 800 mm

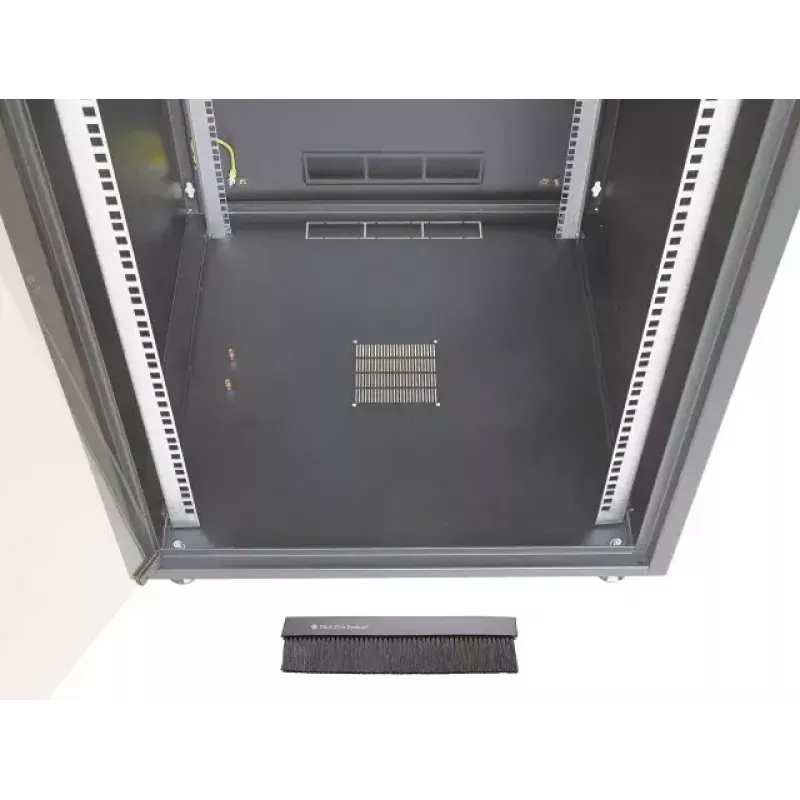

• Rack profiles: 4 x 19" galvanised, step-less depth-adjustable (2 front, 2 rear)

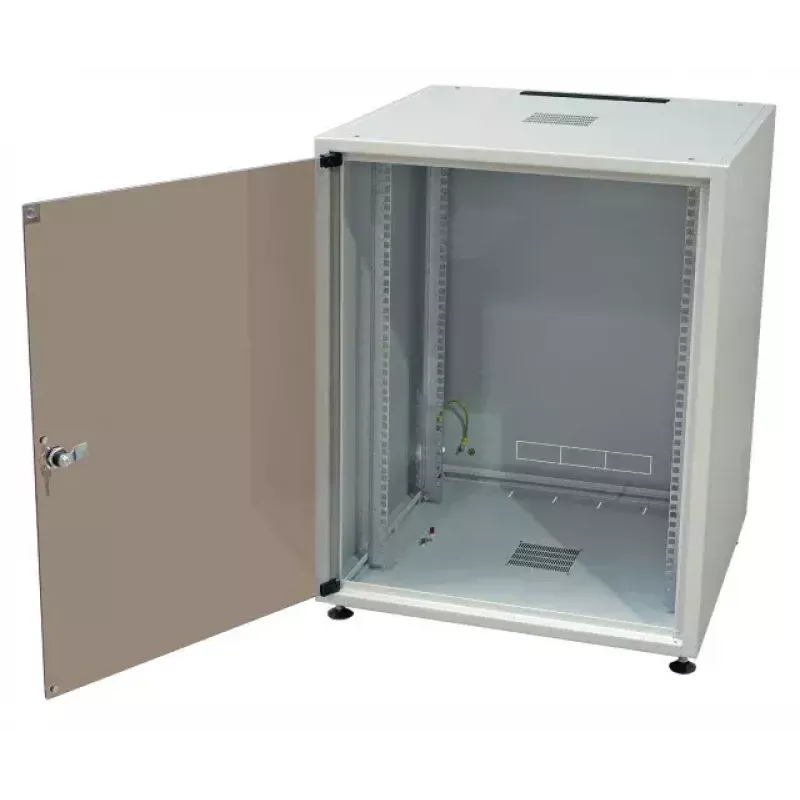

• Front door: 1-part full glass, 4 mm, 1-point key lock, reversible stop
• Housing: Steel sheet, self-supporting, pre-assembled, self-ventilated
• IP rating: IP20
• Colour: Grey
• Maximum load capacity: 38 kg

How to use

Place the freestanding rack on a level surface and verify the door stop orientation (left or right) before installing equipment. Route cables through the pre-punched openings at the bottom or rear. Mount devices on the 19" profiles and adjust profile depth as needed for proper alignment. Lock the front door with the provided key to restrict access.

Recommendations

For safe operation, distribute mounted equipment weight evenly and do not exceed the specified maximum load of 38 kg. Ensure adequate ventilation around the cabinet and maintain IP20-compatible environmental conditions (protected from water). Use appropriate cable management to prevent strain on connectors.
