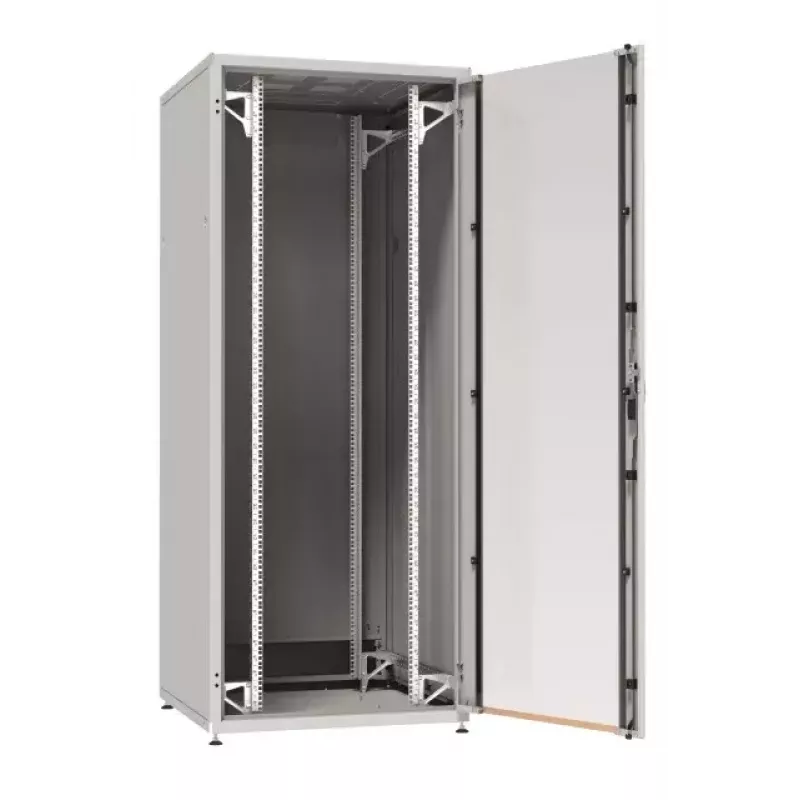

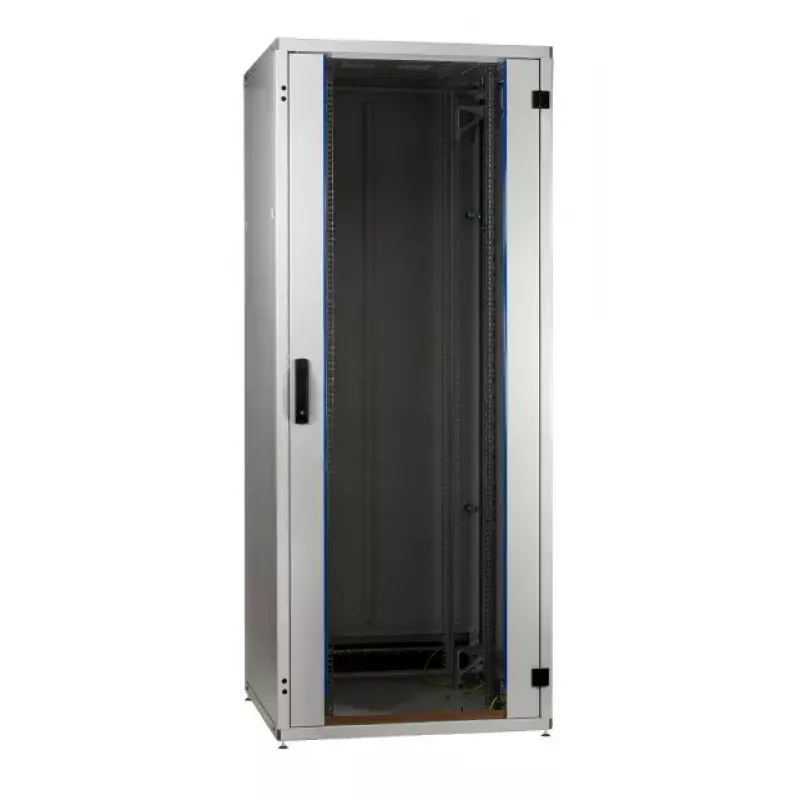

Rack independiente EFB Elektronik PRO-1888GR.G1SV

The EFB Elektronik PRO-1888GR.G1SV is an 18U freestanding rack designed for indoor network and server equipment. With a footprint of 800 mm x 800 mm and a height of 896 mm, this grey cabinet follows the 19" standard and offers a maximum static load capacity of 1000 kg. Its IP20 rating makes it suitable for protected indoor environments where dust and direct water exposure are minimal. The rack's robust construction provides a stable platform for patch panels, switches, small servers, and other IT or AV components.

Advantages

The PRO-1888GR.G1SV combines compact external dimensions with substantial load capacity, allowing installation of dense equipment configurations without occupying excessive floor space. The 19" format ensures compatibility with industry-standard mounting hardware and accessories. The grey finish provides a neutral, professional appearance for data rooms and office environments. Built to support up to 1000 kg, the rack offers long-term stability and resistance to deformation under heavy loads.

Suitable for

• Small to medium server rooms and network closets
• Telecommunications cabinets and wiring distribution points
• AV installations with rack-mount components
• Laboratory and test bench setups requiring standard 19" mounting

Key specifications

• Rack capacity: 18U
• Compatible mounting standard: 19"
• External width: 800 mm
• External depth: 800 mm
• External height: 896 mm
• Maximum static load capacity: 1000 kg
• Protection rating: IP20 (indoor use)
• Color: Grey

How to use

Place the freestanding rack on a level, stable surface that can support the combined weight of the cabinet and installed equipment. Assemble and adjust internal mounting rails to the required depth for your 19" devices following the manufacturer's assembly instructions. Mount patch panels, switches, PDUs and other rack-mount components onto the 19" rails using appropriate rack screws and cage nuts. Ensure proper cable routing and attach cable management accessories to maintain airflow and prevent strain on connectors. For heavy equipment, distribute weight evenly and mount the heaviest items toward the bottom of the rack to maintain stability.

Recommendations

Use the IP20-rated PRO-1888GR.G1SV only in indoor, dry environments away from direct water exposure. Provide adequate ventilation or active cooling for heat-producing equipment, and plan power distribution to avoid overloading circuit breakers. Secure the rack to the floor or a suitable anchor if required by local safety regulations when installing heavy loads or placing the rack in high-traffic areas.
