RACKTEL RL-4509WR armario de pared 9U 600x450mm negro

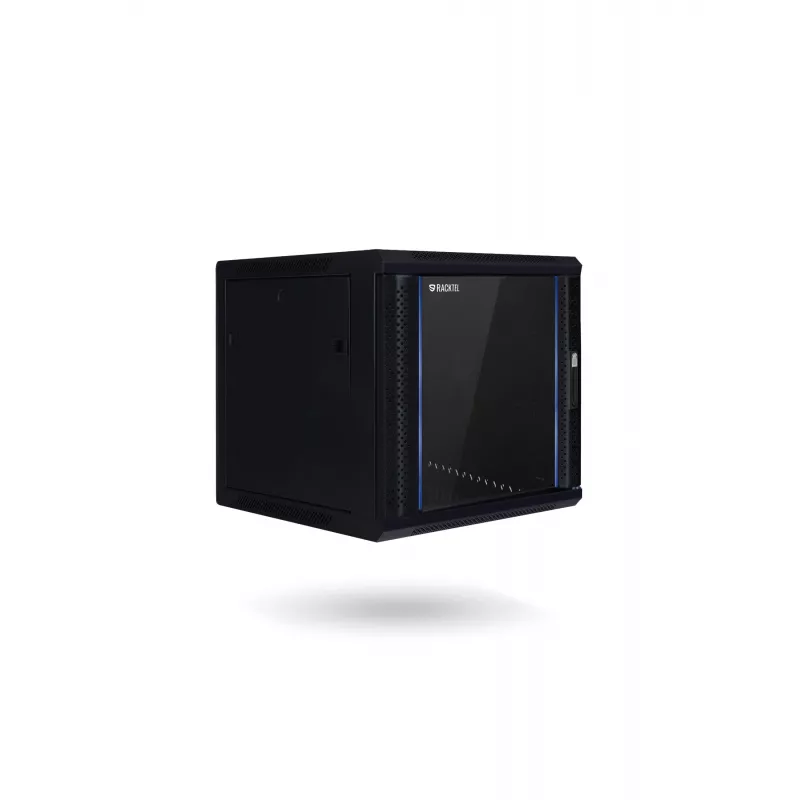

The RACKTEL RL-4509WR is a high-quality 9U wall-mounted rack cabinet designed for secure and organized installation of 19-inch network and IT equipment. With a compact external size of 600x450x465 mm, it is ideal for small to medium-sized setups where space is at a premium. The cabinet comes as a flat-pack for self-assembly, offering flexibility and ease of transport.

Advantages

This rack cabinet combines robust construction with practical features. The tempered glass front door with lock provides visibility of equipment while ensuring security. Removable and lockable side panels allow easy access for maintenance. Adjustable 19-inch mounting rails (front and rear) accommodate various equipment depths. The powder-coated finish in black (RAL 9004) offers durability and a professional appearance.

Suitable for

• Network switches, patch panels, and routers
• Small server installations
• Audio/video equipment
• Telecommunications and data distribution

Key specifications

• Rack Units: 9U
• External Dimensions (WxDxH): 600 x 450 x 465 mm
• Usable Depth: Approx. 350 mm
• Material: Cold-rolled steel
• Front Door: Tempered glass with lock
• Side Panels: Removable, lockable
• Mounting Rails: Adjustable 19-inch (front & rear)
• Max Static Load: 60 kg
• Protection Rating: IP20
• Color: Black (RAL 9004)
• Compliance: ANSI/EIA RS-310-D, IEC297-2, DIN41494 PART1, DIN41494 PART7
• Ventilation: Passive (perforated top/bottom)
• Cable Entry: Top and bottom

Recommendations

For optimal performance, ensure proper ventilation and do not exceed the maximum load capacity of 60 kg. Use appropriate mounting hardware for wall installation. This cabinet is suitable for indoor use only.
