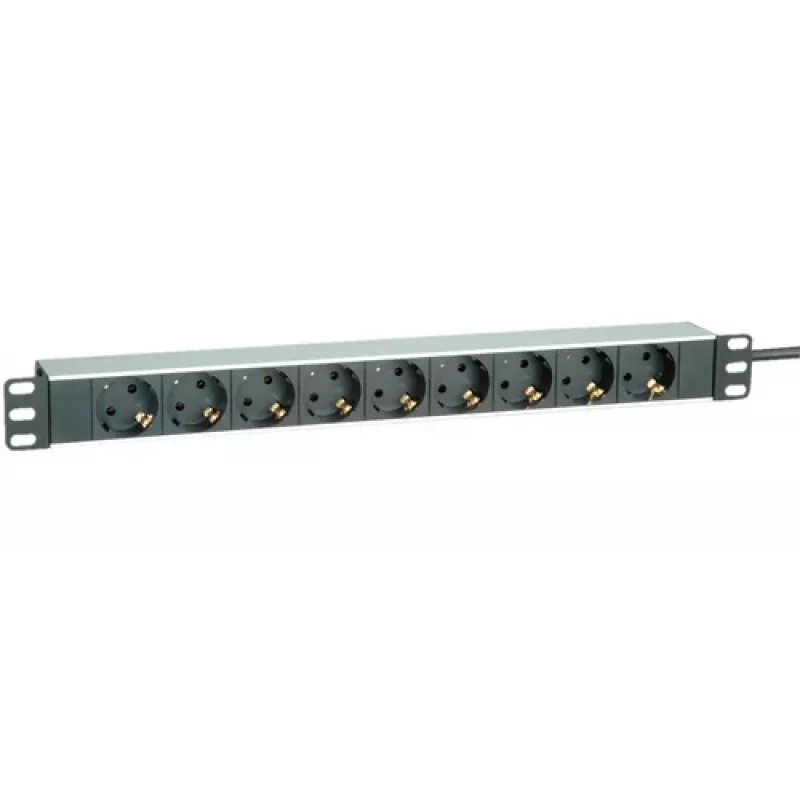

Regleta de corriente ROLINE 19.07.1620

The ROLINE 19.07.1620 Power Distribution Unit is a 19" rack-mount PDU designed for installation in 19" cabinets. It provides nine AC outlets (Type F) arranged at a 45° angle and is built with an anodized aluminium profile for durability. The compact unit measures 44.4 mm x 490 mm x 44.4 mm, supports a nominal input voltage of 250 V and a maximum current of 16 A, and comes with a 2 m H05VV-F 3G power cable. Available in black and white, it is suitable for standard rack power distribution tasks.

Advantages

The PDU offers angled 45° socket arrangement to improve cable routing in racks, a robust anodized aluminium profile for mechanical stability and heat dissipation, and a compact 1U form factor for efficient use of rack space. With nine Type F outlets and a 2 m cable, it delivers a balance of connectivity and flexibility for typical rack-mounted equipment.

Suitable for

• Powering servers and network switches in 19" server cabinets
• Supplying power to patch panels, storage devices and telecom equipment
• Rack installations where space-saving 1U PDUs are required

Key specifications

• Model: ROLINE 19.07.1620
• Form factor: 19" 1U (installation angle included)
• AC outlets: 9 × Type F, arranged at 45°
• Nominal input voltage: 250 V
• Maximum current: 16 A
• Cable: 2 m H05VV-F 3G
• Material: Anodized aluminium profile
• Dimensions: 44.4 mm × 490 mm × 44.4 mm
• Colours: Black, White
• MPN: 19.07.1620
• EAN: 7611990146758

How to use

Install the unit into a 19" cabinet using the supplied installation angle and fix it at the desired 1U position. Connect the PDU's H05VV-F 3G power cable to an appropriate mains outlet rated for 250 V and up to 16 A. Plug equipment into the Type F outlets, taking care to route cables to avoid strain and allow adequate ventilation around rack equipment. Follow your facility's electrical safety procedures when connecting and disconnecting devices.

Recommendations

Ensure the total connected load does not exceed 16 A. Distribute high-draw devices across multiple PDUs where possible, and perform periodic inspections of cables and connections to maintain safe and reliable operation.
