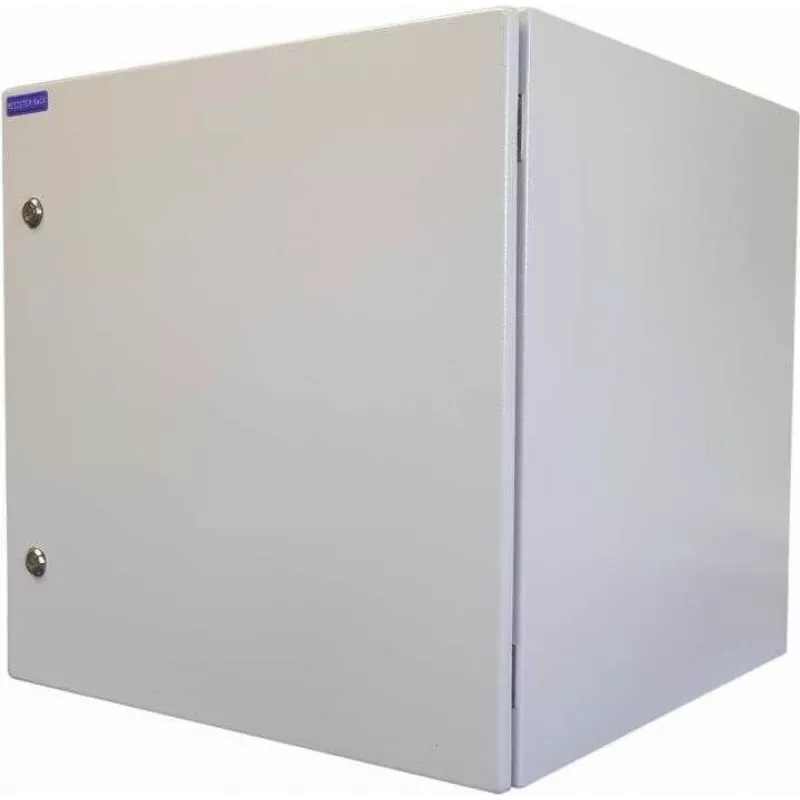

RESISTER Rack de red de 19" Pro - IP66 para exterior e industria - Puerta metálica maciza - 12HE - 600x600 mm - gris claro (90RR19WV126MG)

The RESISTER 19-Inch Network Cabinet Pro is a robust, IP66-rated enclosure designed for demanding outdoor and industrial environments. With a solid metal door, 12U of rack space, and dimensions of 600x600 mm, this cabinet provides secure and reliable housing for your network equipment. Its light grey powder-coated finish ensures durability and corrosion resistance.

Advantages

IP66 protection against dust and water jets, making it ideal for harsh conditions. The solid metal door enhances security, while the welded frame construction ensures long-term stability. Easy cable management via sealed gland plates and lockable door for access control.

Suitable for

• Outdoor network installations (telecom, surveillance, Wi-Fi)
• Industrial automation and control systems
• Edge computing and IoT gateways
• Any environment requiring high ingress protection

Key specifications

• Rack Standard: 19-inch
• Rack Units: 12U
• Ingress Protection: IP66
• Door Type: Solid Metal Door
• External Dimensions (WxD): 600x600 mm
• Colour: Light Grey (RAL 7035)
• Material: Steel, powder coated
• Construction: Welded frame
• Mounting: Wall-mountable or floor-standing
• Security: Lockable door
• Cooling: Passive ventilation
• Usable Internal Height: 533.4 mm (12U)
• Usable Internal Depth: Approx. 550 mm
• Rear Panel: Fixed solid panel
• Side Panels: Fixed solid panels
• Cable Entry: Sealed gland plates

Recommendations

For outdoor or industrial use, ensure proper grounding and cable sealing. Pair with compatible 19-inch patch panels and switches. Consider additional cable management accessories for optimal airflow.
